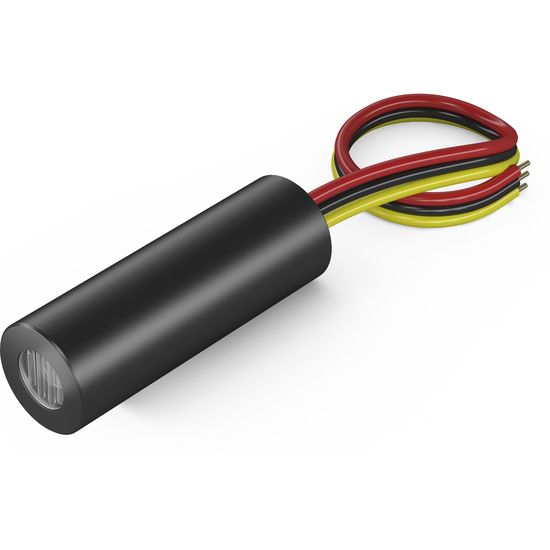

Line laser, red, 650 nm, 90 °, 5 mW, 5 V DC, Ø16x63 mm, Laser Class 1, Focus fixed (3000mm), Cable…
€102.90*
Available, delivery time: 1-2 days
Product information "Line laser, red, 650 nm, 90 °, 5 mW, 5 V DC, Ø16x63 mm, Laser Class 1, Focus fixed (3000mm), Cable…"
modulated isolated Line lasermodule, red, 90°, 650nm, 5mW, 5V DC, 16x63mm, class 1
- Laser Class 1
- Operating Voltage 5 V DC
- Uniform line thickness
- Fixed focus
- Glas lenses anti reflex coated
Accessesories
Magnetic Mount for Lasermodul 16mm
16mm(48x86) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 16mm
Bracket for Lasermodule 16mm
Ø16mm(25x75) Halterung-Ballhead für Lasermodule mit Durchmesser 16mm
Picotronic Bracket Mount-16(30x65)
Ø16mm(30x65) MOUNT für Lasermodule mit Durchmesser 16mm
Magnetic Mount for Lasermodul 16mm
Ø16mm(45x75) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 16mm
Mount for Lasermodul 16mm
Ø16mm(45x75) MULTI-MOUNT für Lasermodule mit Durchmesser 16mm
5V Power supply 5V DC (1000mA)
Netzteil, Ausgang: 5V DC, offene Kabelenden, Betriebsspannung: 100-240V AC
Picotronic accessory PICO-LENS-CLEANING-PEN-MICRO
certified Laser Safety Eyewear PICO-LPG-635-660 according to DIN EN 207, suitable for red wavelengths >630 - 700 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications, Research and Development
Main Data
- EAN: 4055132003913
- Warranty: 1 years
- Customs tariff number: 90132000000
Technical Parameters
- Lifetime: > 5,000 h
- Operating Temperature: -20°C - 50 °C
- Storage Temperature: -40°C - 80 °C
Optical Parameters
- Beam Shape: Line
- Optical Power: 5 mW
- Laser Class: 1
- Divergence: B - 0.3 mrad
- Fan Angle: 90 °
- Line Thickness: <1.5mm@3m
- Operating Distance: 3 m
- Optics: glass lens AR coated
- Laser technology: diode
- Focus: fixed (3000mm)
- Camber: Less then 1mm
Electrical Parameters
- Potential of Housing: isolated
- Max. Mod. Frequency: 200 kHz
- Operating Voltage: 4.5 - 5.5, typ 5 V DC
- Operating Current: 15 - 45, typ 30 mA
- Cable color positive: red
- Cable color GND: blue
- Cable color modulation: yellow
- Power Supply: Power Supply with stripped/tinned wires, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max.
Mechanical Parameters
- Size: Ø16x63 mm
- Material: aluminium
- Cable length: 100 mm
- Output Aperture: 6 mm
- Weight: 25 g
| Opening angle: | 90 ° |
|---|
