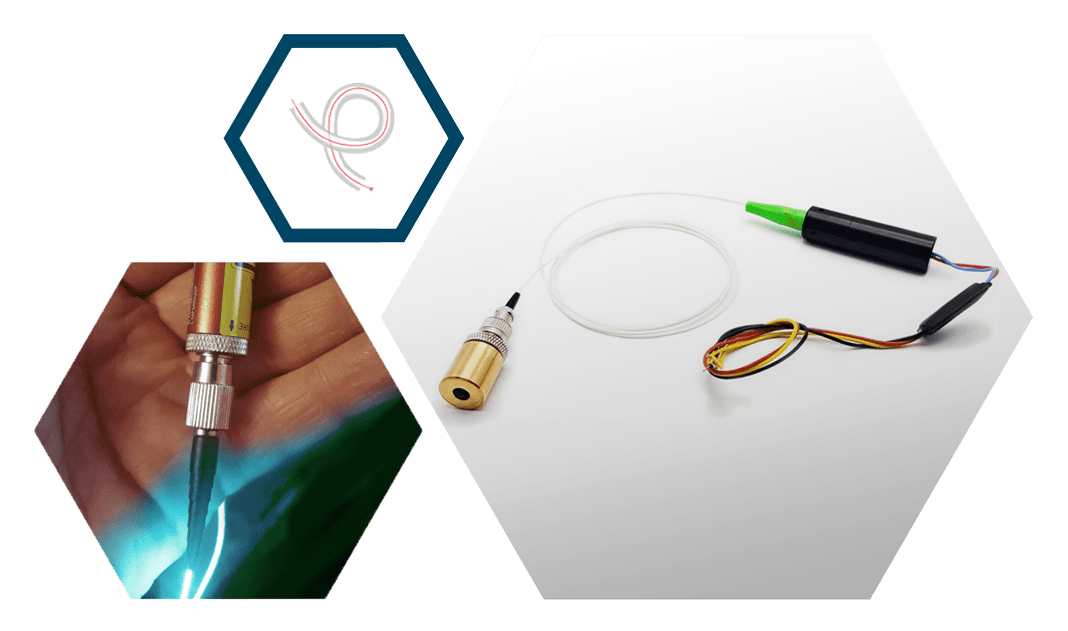

The Picotronic fiber laser / fiber coupled diode lasers provide a circular, homogeneous intensity profile and a symmetrical beam quality, can be easily replaced without disassembly and can be used remotely. They are widely used for laser projections for positioning in the automotive industry, in design and architecture, but also in consumer electronics.

Easily find, specify and enquire about fiber laser:

Find Lasers

1
2

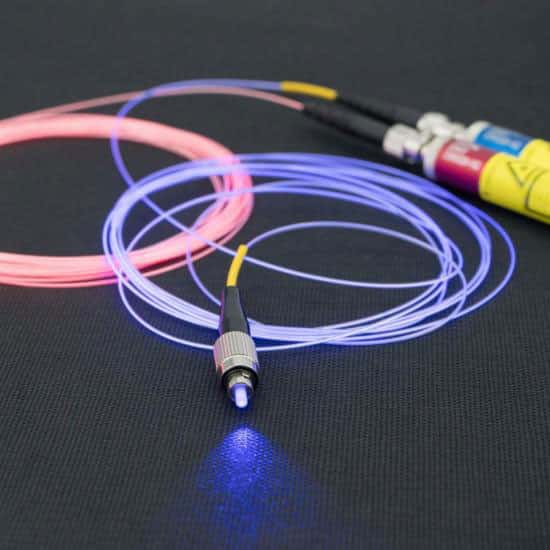

Faser Laser, blue, 450 nm, 20 mW, 5 V DC, Ø14x50 mm, Laser Class 3R, Cable length 500 mm, CON-USB-A

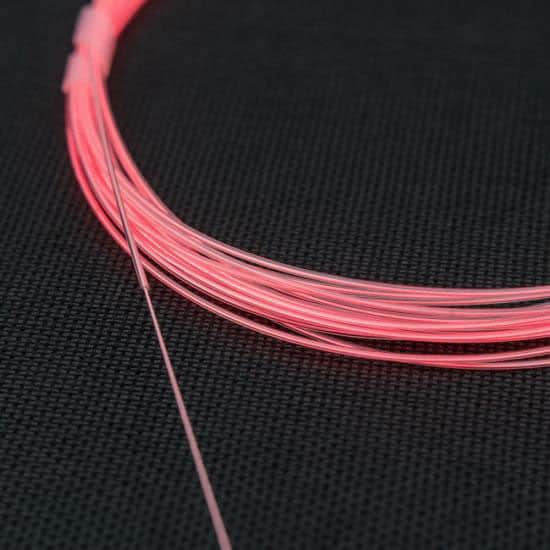

Fiber lasermodule, blue, 450nm, 20mW, 5V DC, 14x50mm, class 3R, Light diffusing Fiber, Fiberlength 1m, USB Type A-Connector, PWM modulated -Small, thin and flexible -Bright, clear color -Emits continuous, uniform light -Custom length illumination -Tight bend capability -Visible and invisible light -Versatile for a variety of applications Fiberlaser Pwm modulation USB FC connector Diffusing fiber Accessesories MULTI-MOUNT-14(45x75)-MAGNETICMagnetic Mount for Lasermodul 14mm BALLHEAD-MOUNT-14(25x72)Bracket for Lasermodule 14mm MULTI-MOUNT-14(45x75)Mount for Lasermodul 14mm PICO-LPG-405-532certified Laser Safety Eyewear PICO-LPG-405-532 according to DIN EN 207, suitable for blue and green wavelengths >400 - 532 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications Main Data EAN: 4055132014063 Warranty: 1 years customs tarif number: 90132000000 Technical Parameters Lifetime: > 10,000 h Operating Temperature: -10°C - 50 °C Storage Temperature: -20°C - 85 °C Optical Parameters Beam Shape: Fiber Optical Power: 20 mW Laser Class: 3R Operating Distance: 1 m Optics: glass lens AR coated Laser technology: Single Mode Diode Electrical Parameters Potential of Housing: isolated Operating Voltage: 4.5 - 5, typ 5 V DC Operating Current: 30 - 100, typ 50 mA Connector: CON-USB-A Mechanical Parameters Size: Ø14x50 mm Material: aluminium Cable length: 500 mm Housing Color: silver Weight: 35 g Connector Pin VDD: 1 Connector Pin GND: 4 Connector Pin Modulated: 2 Connector Pin Power Control: 3

€279.90*

Faser Laser, red, 635 nm, 20 mW, 5 V DC, Ø14x50 mm, Laser Class 3R, Cable length 500 mm, CON-USB-A

Fiber lasermodule, blue, 450nm, 20mW, 5V DC, 14x50mm, class 3R, Light diffusing Fiber, Fiberlength 1m, USB Type A-Connector, PWM modulated -Small, thin and flexible -Bright, clear color -Emits continuous, uniform light -Custom length illumination -Tight bend capability -Visible and invisible light -Versatile for a variety of applications Fiberlaser Pwm modulation USB FC connector Diffusing fiber Accessesories MULTI-MOUNT-14(45x75)-MAGNETICMagnetic Mount for Lasermodul 14mm BALLHEAD-MOUNT-14(25x72)Bracket for Lasermodule 14mm MULTI-MOUNT-14(45x75)Mount for Lasermodul 14mm PICO-LPG-405-532certified Laser Safety Eyewear PICO-LPG-405-532 according to DIN EN 207, suitable for blue and green wavelengths >400 - 532 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications Main Data EAN: 4055132014094 Warranty: 1 years customs tarif number: 90132000000 Technical Parameters Lifetime: > 10,000 h Operating Temperature: -10°C - 50 °C Storage Temperature: -20°C - 85 °C Optical Parameters Beam Shape: Fiber Optical Power: 20 mW Laser Class: 3R Operating Distance: 1 m Optics: glass lens AR coated Laser technology: Single Mode Diode Electrical Parameters Potential of Housing: isolated Operating Voltage: 4.5 - 5, typ 5 V DC Operating Current: 30 - 100, typ 50 mA Connector: CON-USB-A Mechanical Parameters Size: Ø14x50 mm Material: aluminium Cable length: 500 mm Housing Color: silver Weight: 7 g Connector Pin VDD: 1 Connector Pin GND: 4 Connector Pin Modulated: 2 Connector Pin Power Control: 3

€219.90*

Faser Laser, red, 650 nm, 1 mW, 5 V DC, Ø14x50 mm, Laser Class 2M, Cable length 200 mm

Fiber lasermodule, blue, 450nm, 20mW, 5V DC, 14x50mm, class 3R, Light diffusing Fiber, Fiberlength 1m, USB Type A-Connector, PWM modulated -Small, thin and flexible -Bright, clear color -Emits continuous, uniform light -Custom length illumination -Tight bend capability -Visible and invisible light -Versatile for a variety of applications Fiberlaser SMA905 connector Accessesories MULTI-MOUNT-14(45x75)-MAGNETICMagnetic Mount for Lasermodul 14mm BALLHEAD-MOUNT-14(25x72)Bracket for Lasermodule 14mm MULTI-MOUNT-14(45x75)Mount for Lasermodul 14mm PICO-LPG-405-532certified Laser Safety Eyewear PICO-LPG-405-532 according to DIN EN 207, suitable for blue and green wavelengths >400 - 532 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications Main Data EAN: 4055132018986 Warranty: 1 years customs tarif number: 90132000000 Technical Parameters Lifetime: > 10,000 h Operating Temperature: -10°C - 50 °C Storage Temperature: -20°C - 85 °C Optical Parameters Beam Shape: Fiber Optical Power: 1 mW Laser Class: 2M Operating Distance: 10 m Optics: glass lens AR coated Beam Mode: TEM00 Laser technology: Single Mode Diode Electrical Parameters Potential of Housing: isolated Operating Voltage: 4.5 - 5, typ 5 V DC Operating Current: 10 - 50, typ 30 mA Cable color positive: red Cable color GND: black Mechanical Parameters Size: Ø14x50 mm Material: aluminium Cable length: 200 mm Housing Color: silver Weight: 7 g

€379.90*

Faser Lasermodul blau 405nm 40mW 5VDC 14x50mm

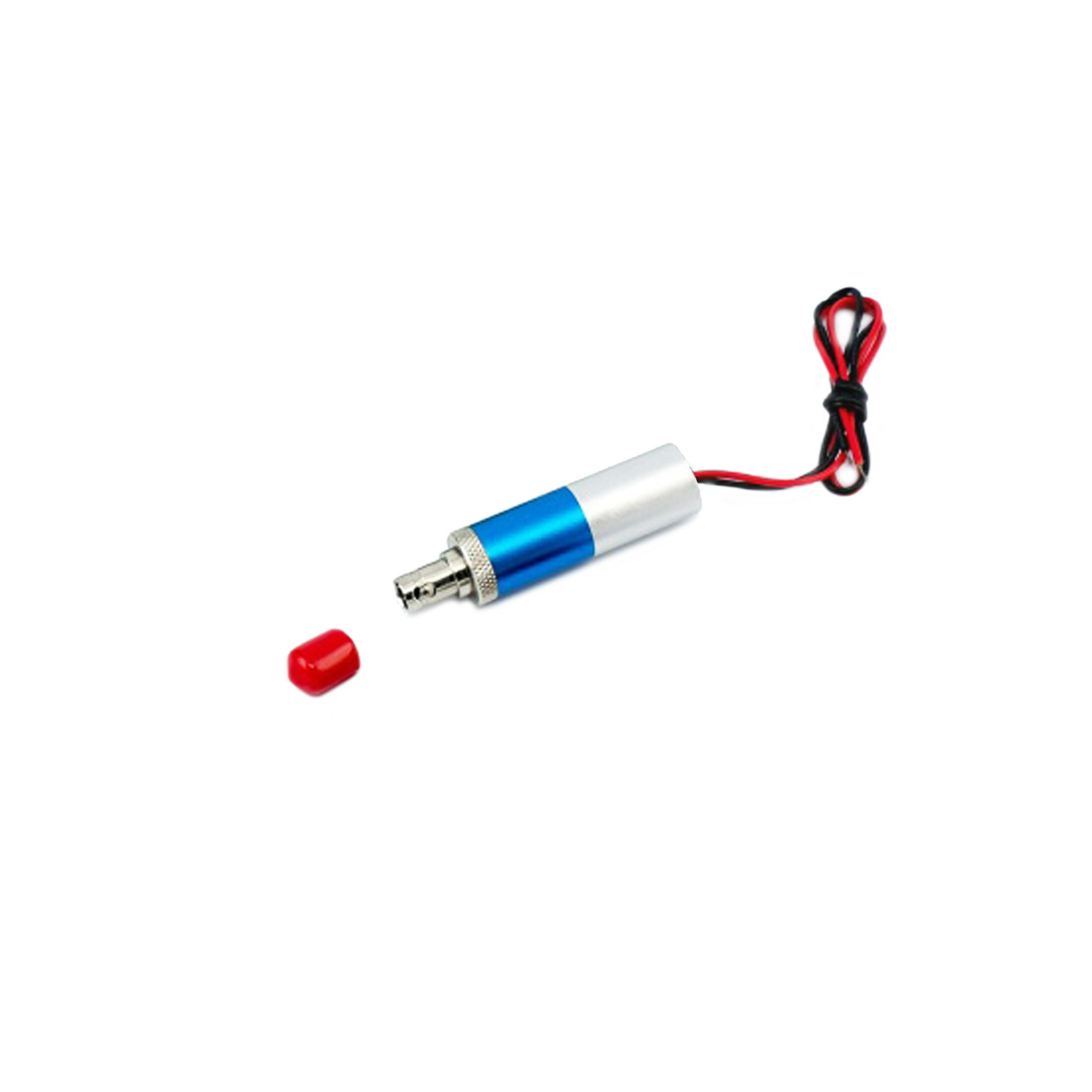

Fiber lasermodule, blue, 405nm, 40mW, 5V DC, 14x50mm, class 3B, FC connector, Fiber length 1000mm, Fiber core diameter 125 µm, incl collimating optic, intensity adjustment 0-3.0V (Yellow wire) Accessesories MULTI-MOUNT-14(45x75)-MAGNETICMagnetic Mount for Lasermodul 14mm BALLHEAD-MOUNT-14(25x72)Bracket for Lasermodule 14mm MULTI-MOUNT-14(45x75)Mount for Lasermodul 14mm PICO-LPG-405-532certified Laser Safety Eyewear PICO-LPG-405-532 according to DIN EN 207, suitable for blue and green wavelengths >400 - 532 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications Main Data EAN: 4055132013103 Warranty: 1 years customs tarif number: 90132000000 Technical Parameters Lifetime: > 10,000 h Operating Temperature: -10°C - 50 °C Storage Temperature: -40°C - 85 °C Optical Parameters Beam Shape: Fiber Optical Power: 40 mW Laser Class: 3B Size of Laserdot: <8mm@5m Optics: glass lens AR coated Beam Mode: TEM00 Laser technology: Single Mode Diode Focus: (5.0m) Electrical Parameters Potential of Housing: isolated Operating Voltage: 4.5 - 5, typ 5 V DC Operating Current: 100 - 160, typ 130 mA Cable color positive: red Cable color GND: black Cable color power control: Yellow Mechanical Parameters Size: Ø14x50 mm Material: aluminium Cable length: 200 mm Housing Color: black Weight: 7 g Fiber Fiber length: 1 m

€1,459.90*

Faser Lasermodul blau 450nm 0.4mW 5VDC 14x50mm

Fiber lasermodule, blue, 450nm, 0.4mW, 5V DC, 14x50mm, class 3B, FC connector, Fiber core diameter 200 µm /0.22N.A. Accessesories MULTI-MOUNT-14(45x75)-MAGNETICMagnetic Mount for Lasermodul 14mm BALLHEAD-MOUNT-14(25x72)Bracket for Lasermodule 14mm MULTI-MOUNT-14(45x75)Mount for Lasermodul 14mm PICO-LPG-405-532certified Laser Safety Eyewear PICO-LPG-405-532 according to DIN EN 207, suitable for blue and green wavelengths >400 - 532 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications Main Data EAN: 4055132019099 Warranty: 1 years customs tarif number: 90132000000 Technical Parameters Lifetime: > 8,000 h Operating Temperature: -10°C - 50 °C Storage Temperature: -40°C - 80 °C Optical Parameters Beam Shape: Fiber Optical Power: 0.4 mW Laser Class: 1 Optics: glass lens AR coated Electrical Parameters Potential of Housing: isolated Operating Voltage: 4.5 - 5, typ 5 V DC Operating Current: 5 - 120, typ 110 mA Cable color positive: red Cable color GND: black Mechanical Parameters Size: Ø14x50 mm Material: aluminium Cable length: 200 mm Wire type: 22AWG, black, 3,6mm Housing Color: black Weight: 7 g

€289.90*

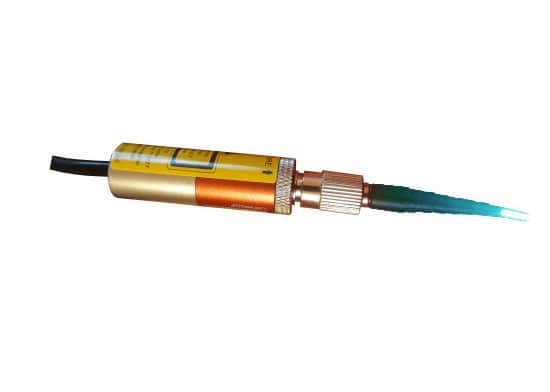

Faser Lasermodul blau 450nm 50mW 5VDC 14x50mm

Fiber lasermodule, blue, 450nm, 50mW, 5V DC, 14x50mm, class 3B, FC connector, Fiber core diameter 200 µm /0.22N.A., 3m tranmission fiber with FC connector, analog modulation: power adjustable (0-5V), TTL Accessesories MULTI-MOUNT-14(45x75)-MAGNETICMagnetic Mount for Lasermodul 14mm BALLHEAD-MOUNT-14(25x72)Bracket for Lasermodule 14mm MULTI-MOUNT-14(45x75)Mount for Lasermodul 14mm PICO-LPG-405-532certified Laser Safety Eyewear PICO-LPG-405-532 according to DIN EN 207, suitable for blue and green wavelengths >400 - 532 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications Main Data EAN: 4055132017545 Warranty: 1 years customs tarif number: 90132000000 Technical Parameters Lifetime: > 8,000 h Operating Temperature: -10°C - 50 °C Storage Temperature: -40°C - 80 °C Optical Parameters Beam Shape: Fiber Optical Power: 50 mW Laser Class: 3B Optics: glass lens AR coated Beam Mode: TEM00 Laser technology: Single Mode Diode Electrical Parameters Potential of Housing: isolated Max. Mod. Frequency: 50 kHz Operating Voltage: 4.5 - 5, typ 5 V DC Operating Current: 100 - 160, typ 130 mA Cable color positive: red Cable color GND: black Cable color modulation: yellow Cable color power control: White Mechanical Parameters Size: Ø14x50 mm Material: aluminium Cable length: 200 mm Wire type: 22AWG, black, 3,6mm Housing Color: black Weight: 7 g Fiber Fiber length: 3 m

€799.89*

Faser Lasermodul blau 450nm 50mW 5VDC 14x50mm

Fiber lasermodule, blue, 450nm, 50mW, 5V DC, 14x50mm, class 3B, FC connector, Fiber core diameter 200 µm /0.22N.A., 3m tranmission fiber with FC connector, analog modulation: power adjustable (0-5V) Accessesories MULTI-MOUNT-14(45x75)-MAGNETICMagnetic Mount for Lasermodul 14mm BALLHEAD-MOUNT-14(25x72)Bracket for Lasermodule 14mm MULTI-MOUNT-14(45x75)Mount for Lasermodul 14mm PICO-LPG-405-532certified Laser Safety Eyewear PICO-LPG-405-532 according to DIN EN 207, suitable for blue and green wavelengths >400 - 532 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications Main Data EAN: 4055132017316 Warranty: 1 years customs tarif number: 90132000000 Technical Parameters Lifetime: > 8,000 h Operating Temperature: -10°C - 50 °C Storage Temperature: -40°C - 80 °C Optical Parameters Beam Shape: Fiber Optical Power: 50 mW Laser Class: 3B Optics: glass lens AR coated Beam Mode: TEM00 Laser technology: Single Mode Diode Electrical Parameters Potential of Housing: isolated Max. Mod. Frequency: 50 kHz Operating Voltage: 4.5 - 5, typ 5 V DC Operating Current: 100 - 160, typ 130 mA Cable color positive: red Cable color GND: black Cable color power control: Yellow Mechanical Parameters Size: Ø14x50 mm Material: aluminium Cable length: 200 mm Wire type: 22AWG, black, 3,6mm Housing Color: black Weight: 7 g Fiber Fiber length: 3 m

€759.90*

Faser Lasermodul blau 450nm 50mW 5VDC 14x50mm

Fiber lasermodule, blue, 450nm, 50mW, 5V DC, 14x50mm, class 3B, TTL, FC connector, Fiber core diameter 200 µm /0.22N.A., 3m tranmission fiber with FC connector Accessesories MULTI-MOUNT-14(45x75)-MAGNETICMagnetic Mount for Lasermodul 14mm BALLHEAD-MOUNT-14(25x72)Bracket for Lasermodule 14mm MULTI-MOUNT-14(45x75)Mount for Lasermodul 14mm PICO-LPG-405-532certified Laser Safety Eyewear PICO-LPG-405-532 according to DIN EN 207, suitable for blue and green wavelengths >400 - 532 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications Main Data EAN: 4055132018207 Warranty: 1 years customs tarif number: 90132000000 Technical Parameters Lifetime: > 8,000 h Operating Temperature: -10°C - 50 °C Storage Temperature: -40°C - 80 °C Optical Parameters Beam Shape: Fiber Optical Power: 50 mW Laser Class: 3B Optics: glass lens AR coated Beam Mode: TEM00 Laser technology: Single Mode Diode Electrical Parameters Potential of Housing: isolated Max. Mod. Frequency: 50 kHz Operating Voltage: 4.5 - 5, typ 5 V DC Operating Current: 100 - 160, typ 130 mA Cable color positive: red Cable color GND: black Cable color modulation: yellow Mechanical Parameters Size: Ø14x50 mm Material: aluminium Cable length: 200 mm Wire type: 22AWG, black, 3,6mm Housing Color: black Weight: 7 g Fiber Fiber length: 3 m

€759.90*

Faser Lasermodul blau 450nm 50mW 5VDC 14x50mm

Fiber lasermodule, blue, 450nm, 50mW, 3V DC, 14x147mm, class 3B, FC connector, Fiber core diameter 200 µm /0.22N.A., battery operated, including transmission fiber 3m with FC Connetor Accessesories MULTI-MOUNT-14(45x75)-MAGNETICMagnetic Mount for Lasermodul 14mm BALLHEAD-MOUNT-14(25x72)Bracket for Lasermodule 14mm MULTI-MOUNT-14(45x75)Mount for Lasermodul 14mm PICO-LPG-405-532certified Laser Safety Eyewear PICO-LPG-405-532 according to DIN EN 207, suitable for blue and green wavelengths >400 - 532 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications Main Data EAN: 4055132019037 Warranty: 1 years customs tarif number: 90132000000 Technical Parameters Lifetime: > 8,000 h Operating Temperature: -10°C - 50 °C Storage Temperature: -40°C - 80 °C Optical Parameters Beam Shape: Fiber Optical Power: 50 mW Laser Class: 3B Optics: glass lens AR coated Beam Mode: TEM00 Laser technology: Single Mode Diode Electrical Parameters Potential of Housing: isolated Operating Voltage: 2.7 - 3.3, typ 3 V DC Operating Current: 100 - 160, typ 130 mA Mechanical Parameters Size: Ø14x147 mm Material: aluminium Housing Color: black Weight: 7 g Fiber Fiber length: 3 m

€859.91*

Faser Lasermodul blau 450nm 50mW 5VDC 14x50mm

Fiber lasermodule, blue, 450nm, 50mW, 5V DC, 14x50mm, class 3B, FC connector, Fiber core diameter 200 µm /0.22N.A., 3m tranmission fiber with FC connector Accessesories MULTI-MOUNT-14(45x75)-MAGNETICMagnetic Mount for Lasermodul 14mm BALLHEAD-MOUNT-14(25x72)Bracket for Lasermodule 14mm MULTI-MOUNT-14(45x75)Mount for Lasermodul 14mm PICO-LPG-405-532certified Laser Safety Eyewear PICO-LPG-405-532 according to DIN EN 207, suitable for blue and green wavelengths >400 - 532 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications Main Data EAN: 4055132019006 Warranty: 1 years customs tarif number: 90132000000 Technical Parameters Lifetime: > 8,000 h Operating Temperature: -10°C - 50 °C Storage Temperature: -40°C - 85 °C Optical Parameters Beam Shape: Fiber Optical Power: 50 mW Laser Class: 3B Optics: glass lens AR coated Beam Mode: TEM00 Laser technology: Single Mode Diode Electrical Parameters Potential of Housing: isolated Operating Voltage: 4.5 - 5, typ 5 V DC Operating Current: 100 - 160, typ 130 mA Cable color positive: red Cable color GND: black Mechanical Parameters Size: Ø14x50 mm Material: aluminium Cable length: 200 mm Wire type: 22AWG, black, 3,6mm Housing Color: black Weight: 7 g Fiber Fiber length: 3 m

€759.90*

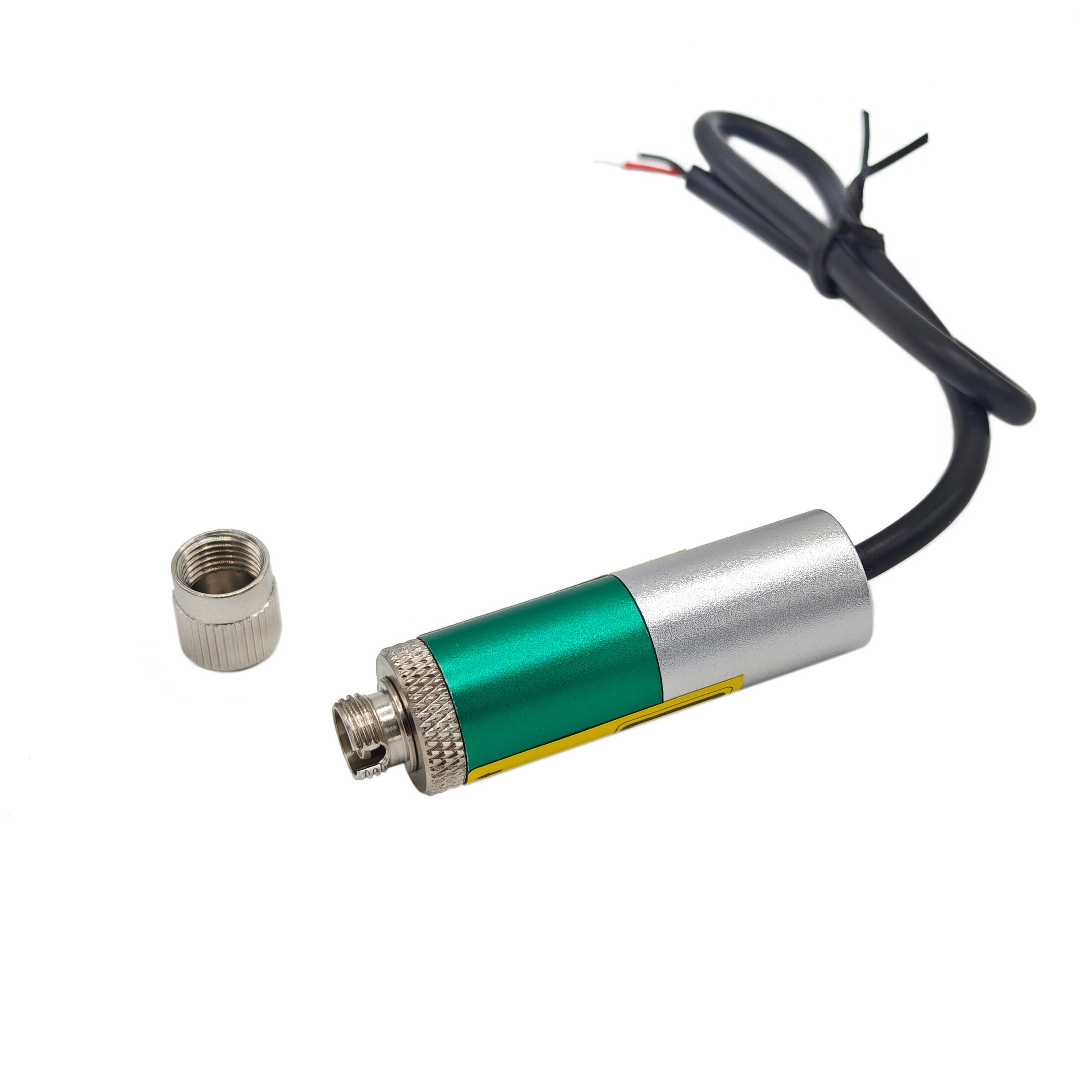

Faser Lasermodul grün 520nm 0.4mW 5VDC 14x50mm

Fiber lasermodule, green, 520nm, 0.4mW, 5V DC, 14x50mm, class 1, FC connector, Fiber core diameter 200 µm /0.22N.A. Accessesories MULTI-MOUNT-14(45x75)-MAGNETICMagnetic Mount for Lasermodul 14mm BALLHEAD-MOUNT-14(25x72)Bracket for Lasermodule 14mm MULTI-MOUNT-14(45x75)Mount for Lasermodul 14mm PICO-LPG-405-532certified Laser Safety Eyewear PICO-LPG-405-532 according to DIN EN 207, suitable for blue and green wavelengths >400 - 532 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications Main Data EAN: 4055132019105 Warranty: 1 years customs tarif number: 90132000000 Technical Parameters Lifetime: > 8,000 h Operating Temperature: -10°C - 50 °C Storage Temperature: -40°C - 80 °C Optical Parameters Beam Shape: Fiber Optical Power: 0.4 mW Laser Class: 1 Optics: glass lens AR coated Electrical Parameters Potential of Housing: isolated Operating Voltage: 4.5 - 5, typ 5 V DC Operating Current: 5 - 50, typ 40 mA Cable color positive: red Cable color GND: black Mechanical Parameters Size: Ø14x50 mm Material: aluminium Cable length: 200 mm Wire type: 22AWG, black, 3,6mm Housing Color: black Weight: 7 g

€289.90*

Faser Lasermodul grün 520nm 10mW 5VDC 14.8x75.5mm

Fiber lasermodule, green, 532nm, 50mW, 5V DC, 42x62x105mm, class 3R, FC connector, Fiber core diameter 200 µm, incl collimating optic Accessesories PICO-LPG-405-532certified Laser Safety Eyewear PICO-LPG-405-532 according to DIN EN 207, suitable for blue and green wavelengths >400 - 532 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications Main Data EAN: 4055132012816 Warranty: 1 years customs tarif number: 90132000000 Technical Parameters Lifetime: > 5,000 h Operating Temperature: -10°C - 50 °C Storage Temperature: -40°C - 85 °C Optical Parameters Beam Shape: Fiber Optical Power: 50 mW Laser Class: 3R Optics: glass lens AR coated Beam Mode: TEM00 Laser technology: Single Mode Diode Warm up time: < 15 min Electrical Parameters Potential of Housing: isolated Operating Voltage: 4.5 - 5, typ 5 V DC Operating Current: 500 - 1000, typ 750 mA Connector: 9 Pin D-Sub Male Connector Mechanical Parameters Size: 105x42x62 mm Material: aluminium Housing Color: black Weight: 7 g

€2,089.90*

Faser Lasermodul grün 520nm 10mW 5VDC 14.8x75.5mm

Fiber lasermodule, green, 520nm, 50mW, 3-5V DC, 20x75.5mm, class 3R, FC connector, Fiber core diameter 200 µm, incl. collimating lens Accessesories BALLHEAD-MOUNT-20(25x78)Bracket for Lasermodule 20mm MULTI-MOUNT-20(45x75)-MAGNETICMagnetic Mount for Lasermodul 20mm MULTI-MOUNT-20(45x75)Mount for Lasermodul 20mm BRACKET-20-ALPicotronic BRACKET-20-AL PICO-LPG-405-532certified Laser Safety Eyewear PICO-LPG-405-532 according to DIN EN 207, suitable for blue and green wavelengths >400 - 532 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications Main Data EAN: 4055132012762 Warranty: 1 years customs tarif number: 90132000000 Technical Parameters Lifetime: > 5,000 h Operating Temperature: -20°C - 60 °C Storage Temperature: -40°C - 85 °C Optical Parameters Beam Shape: Fiber Optical Power: 50 mW Laser Class: 3R Optics: glass lens AR coated Laser technology: Single Mode Diode Electrical Parameters Potential of Housing: isolated Operating Voltage: 3 - 5, typ 5 V DC Operating Current: 120 - 160, typ 160 mA Mechanical Parameters Size: Ø20x75.5 mm Material: aluminium Cable length: 200 mm Wire type: 26AWG, UL, isolated Housing Color: black Weight: 7 g

€1,389.90*

Faser Lasermodul grün 520nm 10mW 5VDC 14.8x75.5mm

Fiber lasermodule, green, 520nm, 10mW, 3-5V DC, 20x75.5mm, class 3R, FC connector, Fiber core diameter 200 µm, incl. collimating lens Accessesories BALLHEAD-MOUNT-20(25x78)Bracket for Lasermodule 20mm MULTI-MOUNT-20(45x75)-MAGNETICMagnetic Mount for Lasermodul 20mm MULTI-MOUNT-20(45x75)Mount for Lasermodul 20mm BRACKET-20-ALPicotronic BRACKET-20-AL PICO-LPG-405-532certified Laser Safety Eyewear PICO-LPG-405-532 according to DIN EN 207, suitable for blue and green wavelengths >400 - 532 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications Main Data EAN: 4055132012786 Warranty: 1 years customs tarif number: 90132000000 Technical Parameters Lifetime: > 5,000 h Operating Temperature: -20°C - 60 °C Storage Temperature: -40°C - 85 °C Optical Parameters Beam Shape: Fiber Optical Power: 10 mW Laser Class: 3R Optics: glass lens AR coated Laser technology: Single Mode Diode Electrical Parameters Potential of Housing: isolated Operating Voltage: 3 - 5, typ 5 V DC Operating Current: 120 - 140, typ 140 mA Mechanical Parameters Size: Ø20x75.5 mm Material: aluminium Cable length: 200 mm Wire type: 26AWG, UL, isolated Housing Color: black Weight: 7 g

€1,189.90*

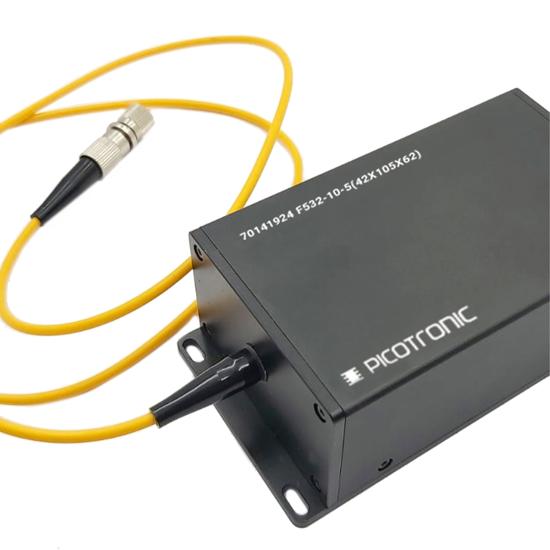

Faser Lasermodul grün 520nm 10mW 5VDC 14.8x75.5mm

Fiber lasermodule, green, 532nm, 10mW, 5V DC, 42x62x105mm, class 3R, FC connector, Fiber core diameter 200 µm, incl. collimating optic Accessesories PICO-LPG-405-532certified Laser Safety Eyewear PICO-LPG-405-532 according to DIN EN 207, suitable for blue and green wavelengths >400 - 532 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications Main Data EAN: 4055132012793 Warranty: 1 years customs tarif number: 90132000000 Technical Parameters Lifetime: > 5,000 h Operating Temperature: -10°C - 50 °C Storage Temperature: -40°C - 85 °C Optical Parameters Beam Shape: Fiber Optical Power: 10 mW Laser Class: 3R Optics: glass lens AR coated Beam Mode: TEM00 Laser technology: Single Mode Diode Warm up time: < 15 min Electrical Parameters Potential of Housing: isolated Operating Voltage: 4.5 - 5, typ 5 V DC Operating Current: 200 - 500, typ 350 mA Connector: 9 Pin D-Sub Male Connector Mechanical Parameters Size: 105x42x62 mm Material: aluminium Housing Color: black Weight: 7 g

€1,319.90*

Faser Lasermodul grün 520nm 50mW 5VDC 14x50mm

Fiber lasermodule, green, 520nm, 50mW, 5V DC, 14x50mm, class 3B, FC connector, Fiber core diameter 200 µm /0.22N.A., 3m Fiber with FC connector, analog modulation: power adjustable (0-5V) Accessesories MULTI-MOUNT-14(45x75)-MAGNETICMagnetic Mount for Lasermodul 14mm BALLHEAD-MOUNT-14(25x72)Bracket for Lasermodule 14mm MULTI-MOUNT-14(45x75)Mount for Lasermodul 14mm PICO-LPG-405-532certified Laser Safety Eyewear PICO-LPG-405-532 according to DIN EN 207, suitable for blue and green wavelengths >400 - 532 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications Main Data EAN: 4055132019075 Warranty: 1 years customs tarif number: 90132000000 Technical Parameters Lifetime: > 8,000 h Operating Temperature: -10°C - 50 °C Storage Temperature: -40°C - 85 °C Optical Parameters Beam Shape: Fiber Optical Power: 50 mW Laser Class: 3B Optics: glass lens AR coated Beam Mode: TEM00 Laser technology: Single Mode Diode Electrical Parameters Potential of Housing: isolated Operating Voltage: 4.5 - 5, typ 5 V DC Operating Current: 100 - 160, typ 130 mA Cable color positive: red Cable color GND: black Cable color power control: Yellow Mechanical Parameters Size: Ø14x50 mm Material: aluminium Cable length: 200 mm Wire type: 22AWG, black, 3,6mm Housing Color: black Weight: 7 g Fiber Fiber length: 3 m

€829.89*

Faser Lasermodul grün 520nm 50mW 5VDC 14x50mm

Fiber lasermodule, green, 520nm, 50mW, 5V DC, 14x50mm, class 3B, TTL, FC connector, Fiber core diameter 200 µm /0.22N.A., 3m Fiber with FC connector Accessesories MULTI-MOUNT-14(45x75)-MAGNETICMagnetic Mount for Lasermodul 14mm BALLHEAD-MOUNT-14(25x72)Bracket for Lasermodule 14mm MULTI-MOUNT-14(45x75)Mount for Lasermodul 14mm PICO-LPG-405-532certified Laser Safety Eyewear PICO-LPG-405-532 according to DIN EN 207, suitable for blue and green wavelengths >400 - 532 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications Main Data EAN: 4055132017149 Warranty: 1 years customs tarif number: 90132000000 Technical Parameters Lifetime: > 8,000 h Operating Temperature: -10°C - 50 °C Storage Temperature: -40°C - 85 °C Optical Parameters Beam Shape: Fiber Optical Power: 50 mW Laser Class: 3B Optics: glass lens AR coated Beam Mode: TEM00 Laser technology: Single Mode Diode Electrical Parameters Potential of Housing: isolated Max. Mod. Frequency: 50 kHz Operating Voltage: 4.5 - 5, typ 5 V DC Operating Current: 100 - 160, typ 130 mA Cable color positive: red Cable color GND: black Cable color modulation: yellow Mechanical Parameters Size: Ø14x50 mm Material: aluminium Cable length: 200 mm Wire type: 22AWG, black, 3,6mm Housing Color: black Weight: 7 g Fiber Fiber length: 3 m

€829.89*

Faser Lasermodul grün 520nm 50mW 5VDC 14x50mm

Fiber lasermodule, green, 520nm, 50mW, 5V DC, 14x50mm, class 3B, FC connector, Fiber core diameter 200 µm /0.22N.A., 3m transmission fiber with FC connector, analog modulation: power adjustable (0-5V), TTL Accessesories MULTI-MOUNT-14(45x75)-MAGNETICMagnetic Mount for Lasermodul 14mm BALLHEAD-MOUNT-14(25x72)Bracket for Lasermodule 14mm MULTI-MOUNT-14(45x75)Mount for Lasermodul 14mm PICO-LPG-405-532certified Laser Safety Eyewear PICO-LPG-405-532 according to DIN EN 207, suitable for blue and green wavelengths >400 - 532 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications Main Data EAN: 4055132018191 Warranty: 1 years customs tarif number: 90132000000 Technical Parameters Lifetime: > 8,000 h Operating Temperature: -10°C - 50 °C Storage Temperature: -40°C - 80 °C Optical Parameters Beam Shape: Fiber Optical Power: 50 mW Laser Class: 3B Optics: glass lens AR coated Beam Mode: TEM00 Laser technology: Single Mode Diode Electrical Parameters Potential of Housing: isolated Max. Mod. Frequency: 50 kHz Operating Voltage: 4.5 - 5, typ 5 V DC Operating Current: 100 - 160, typ 130 mA Cable color positive: red Cable color GND: black Cable color modulation: yellow Cable color power control: White Mechanical Parameters Size: Ø14x50 mm Material: aluminium Cable length: 200 mm Wire type: 22AWG, black, 3,6mm Housing Color: black Weight: 7 g Fiber Fiber length: 3 m

€869.90*

Faser Lasermodul grün 520nm 50mW 5VDC 14x50mm

Fiber lasermodule, green, 520nm, 50mW, 3V DC, 14x147mm, class 3B, FC connector, Fiber core diameter 200 µm /0.22N.A., battery operated, including transmission fiber 3m with FC Connetor Accessesories MULTI-MOUNT-14(45x75)-MAGNETICMagnetic Mount for Lasermodul 14mm BALLHEAD-MOUNT-14(25x72)Bracket for Lasermodule 14mm MULTI-MOUNT-14(45x75)Mount for Lasermodul 14mm PICO-LPG-405-532certified Laser Safety Eyewear PICO-LPG-405-532 according to DIN EN 207, suitable for blue and green wavelengths >400 - 532 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications Main Data EAN: 4055132019044 Warranty: 1 years customs tarif number: 90132000000 Technical Parameters Lifetime: > 8,000 h Operating Temperature: -10°C - 50 °C Storage Temperature: -40°C - 80 °C Optical Parameters Beam Shape: Fiber Optical Power: 50 mW Laser Class: 3B Optics: glass lens AR coated Beam Mode: TEM00 Laser technology: Single Mode Diode Electrical Parameters Potential of Housing: isolated Operating Voltage: 2.7 - 3.3, typ 3 V DC Operating Current: 100 - 160, typ 130 mA Mechanical Parameters Size: Ø14x147 mm Material: aluminium Housing Color: black Weight: 7 g Fiber Fiber length: 3 m

€929.90*

Faser Lasermodul grün 520nm 50mW 5VDC 14x50mm

Fiber lasermodule, green, 520nm, 50mW, 5V DC, 14x50mm, class 3B, FC connector, Fiber core diameter 200 µm /0.22N.A. Accessesories MULTI-MOUNT-14(45x75)-MAGNETICMagnetic Mount for Lasermodul 14mm BALLHEAD-MOUNT-14(25x72)Bracket for Lasermodule 14mm MULTI-MOUNT-14(45x75)Mount for Lasermodul 14mm PICO-LPG-405-532certified Laser Safety Eyewear PICO-LPG-405-532 according to DIN EN 207, suitable for blue and green wavelengths >400 - 532 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications Main Data EAN: 4055132018993 Warranty: 1 years customs tarif number: 90132000000 Technical Parameters Lifetime: > 8,000 h Operating Temperature: -10°C - 50 °C Storage Temperature: -40°C - 85 °C Optical Parameters Beam Shape: Fiber Optical Power: 50 mW Laser Class: 3B Optics: glass lens AR coated Beam Mode: TEM00 Laser technology: Single Mode Diode Electrical Parameters Potential of Housing: isolated Operating Voltage: 4.5 - 5, typ 5 V DC Operating Current: 100 - 160, typ 130 mA Cable color positive: red Cable color GND: black Mechanical Parameters Size: Ø14x50 mm Material: aluminium Cable length: 200 mm Wire type: 22AWG, black, 3,6mm Housing Color: black Weight: 7 g

€789.90*

Faser Lasermodul grün 520nm 50mW 5VDC 14x50mm

Fiber lasermodule, green, 520nm, 50mW, 5V DC, 14x50mm, class 3B, FC connector, Fiber core diameter 200 µm /0.22N.A., 3m Fiber with FC connector Accessesories MULTI-MOUNT-14(45x75)-MAGNETICMagnetic Mount for Lasermodul 14mm BALLHEAD-MOUNT-14(25x72)Bracket for Lasermodule 14mm MULTI-MOUNT-14(45x75)Mount for Lasermodul 14mm PICO-LPG-405-532certified Laser Safety Eyewear PICO-LPG-405-532 according to DIN EN 207, suitable for blue and green wavelengths >400 - 532 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications Main Data EAN: 4055132019013 Warranty: 1 years customs tarif number: 90132000000 Technical Parameters Lifetime: > 8,000 h Operating Temperature: -10°C - 50 °C Storage Temperature: -40°C - 85 °C Optical Parameters Beam Shape: Fiber Optical Power: 50 mW Laser Class: 3B Optics: glass lens AR coated Beam Mode: TEM00 Laser technology: Single Mode Diode Electrical Parameters Potential of Housing: isolated Operating Voltage: 4.5 - 5, typ 5 V DC Operating Current: 100 - 160, typ 130 mA Cable color positive: red Cable color GND: black Mechanical Parameters Size: Ø14x50 mm Material: aluminium Cable length: 200 mm Wire type: 22AWG, black, 3,6mm Housing Color: black Weight: 7 g Fiber Fiber length: 3 m

€829.89*

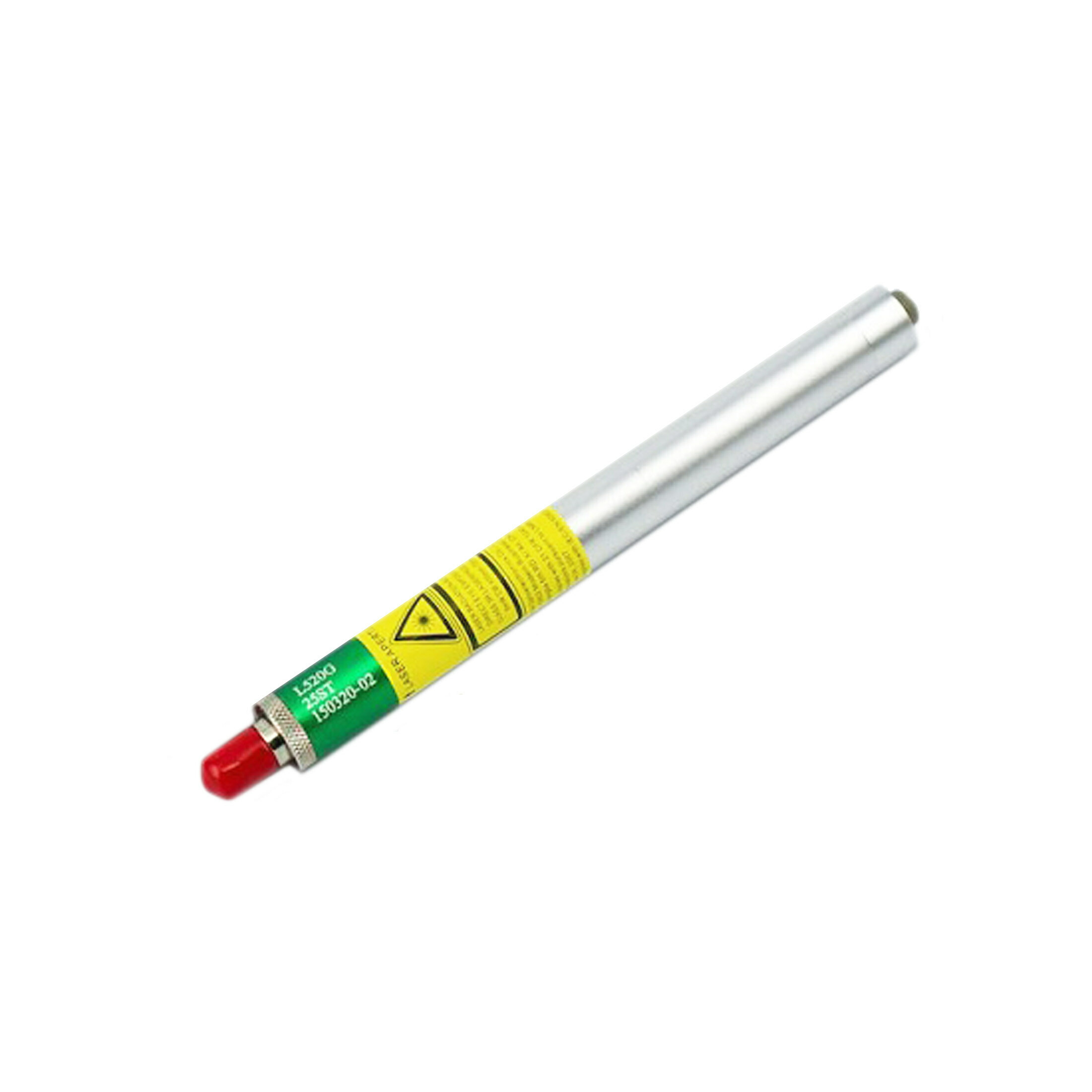

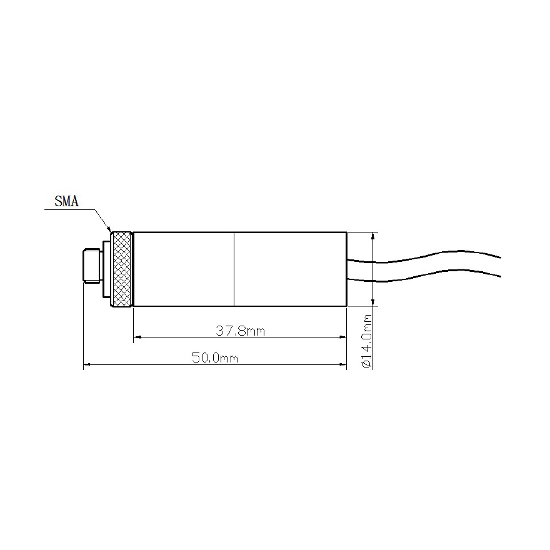

Faser Lasermodul grün 520nm 5mW 5VDC 14x50mm SMA

Fiber lasermodule, green, 520nm, 5mW, 5V DC, 14x50mm, class 1, SMA connector, Fiber core diameter 200 µm /0.22N.A. Accessesories MULTI-MOUNT-14(45x75)-MAGNETICMagnetic Mount for Lasermodul 14mm BALLHEAD-MOUNT-14(25x72)Bracket for Lasermodule 14mm MULTI-MOUNT-14(45x75)Mount for Lasermodul 14mm PICO-LPG-405-532certified Laser Safety Eyewear PICO-LPG-405-532 according to DIN EN 207, suitable for blue and green wavelengths >400 - 532 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications Main Data EAN: 4055132019211 Warranty: 1 years customs tarif number: 90132000000 Technical Parameters Lifetime: > 8,000 h Operating Temperature: -10°C - 50 °C Storage Temperature: -40°C - 80 °C Optical Parameters Beam Shape: Fiber Optical Power: 5 mW Laser Class: 3R Optics: glass lens AR coated Electrical Parameters Potential of Housing: isolated Operating Voltage: 4.5 - 5, typ 5 V DC Operating Current: 75 - 200, typ 130 mA Cable color positive: red Cable color GND: black Mechanical Parameters Size: Ø14x50 mm Material: aluminium Cable length: 200 mm Wire type: 22AWG, black, 3,6mm Housing Color: black Weight: 7 g

€329.90*

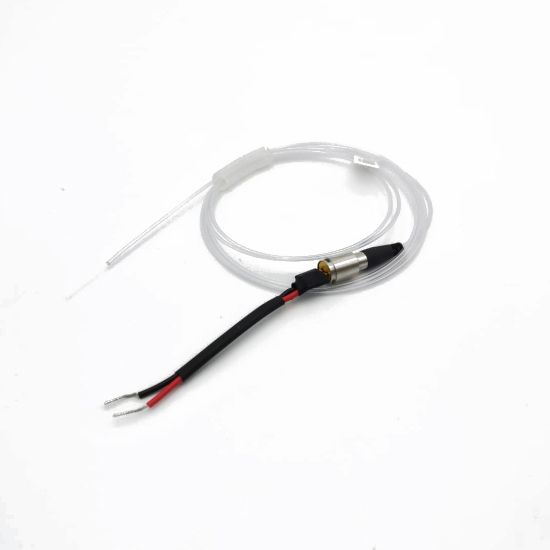

Faser Lasermodul IR 850nm 300mW 3V DC 14x147mm

Fiber lasermodule, IR, 850nm, 300mW, 3V DC, 14x147mm, class 2, direct fiber connection, Fiber core diameter 200 µm /0.53N.A., battery operated, including diffusing fiber 2m, no connector at the end of the glass fiber Accessesories MULTI-MOUNT-14(45x75)-MAGNETICMagnetic Mount for Lasermodul 14mm BALLHEAD-MOUNT-14(25x72)Bracket for Lasermodule 14mm MULTI-MOUNT-14(45x75)Mount for Lasermodul 14mm PICO-LPG-650-1064certified Laser Safety Eyewear PICO-LPG-750-1100 according to DIN EN 207, suitable for infrared wavelengths >750 - 1100 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications Main Data EAN: 4055132019082 Warranty: 1 years customs tarif number: 90132000000 Technical Parameters Lifetime: > 10,000 h Operating Temperature: -20°C - 60 °C Storage Temperature: -40°C - 80 °C Optical Parameters Beam Shape: Fiber Optical Power: 300 mW Laser Class: 1 Optics: acryl lense Laser technology: Single Mode Diode Electrical Parameters Potential of Housing: isolated Operating Voltage: 2.7 - 3.3, typ 3 V DC Operating Current: 325 - 395, typ 360 mA Mechanical Parameters Size: Ø14x147 mm Material: aluminium Housing Color: black Weight: 7 g Fiber Fiber length: 2 m

€1,009.91*

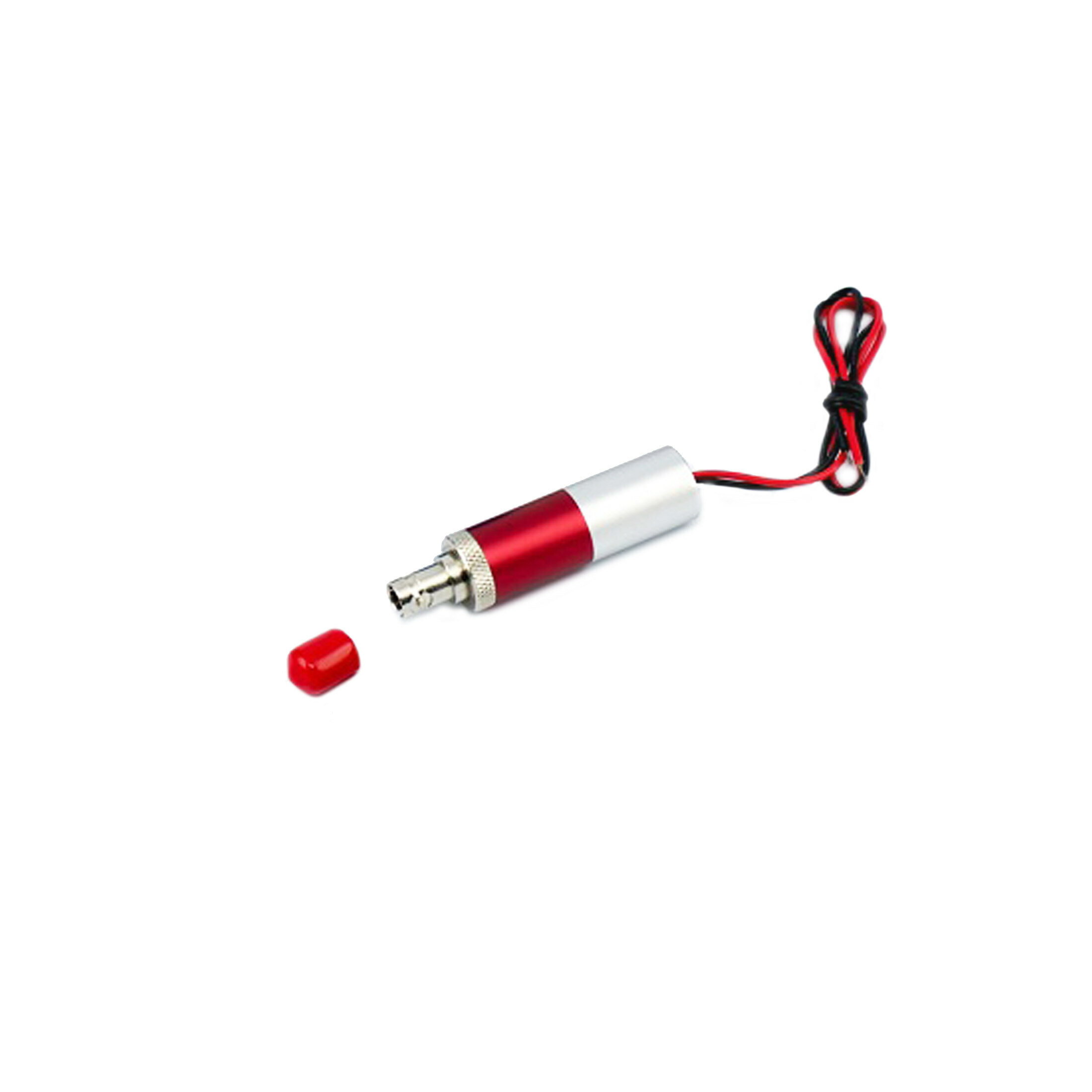

Faser Lasermodul rot 635nm 1mW 5VDC 14.8x75.5mm

Fiber lasermodule, red, 635nm, 1mW, 5V DC, 42x62x105mm, class 2M, FC connector, Fiber core diameter 200 µm, incl. collimating optic Accessesories PICO-LPG-635-660certified Laser Safety Eyewear PICO-LPG-635-660 according to DIN EN 207, suitable for red wavelengths >630 - 700 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications, Research and Development Main Data EAN: 4055132013141 Warranty: 1 years customs tarif number: 90132000000 Technical Parameters Lifetime: > 10,000 h Operating Temperature: -20°C - 50 °C Storage Temperature: -40°C - 85 °C Optical Parameters Beam Shape: Fiber Optical Power: 1 mW Laser Class: 2M Optics: glass lens AR coated Beam Mode: TEM00 Laser technology: Single Mode Diode Electrical Parameters Potential of Housing: isolated Operating Voltage: 4.5 - 5, typ 5 V DC Operating Current: 20 - 40, typ 30 mA Connector: 9 Pin D-Sub Male Connector Mechanical Parameters Size: 105x42x62 mm Material: aluminium Housing Color: black Weight: 17 g

€1,319.90*

1
2

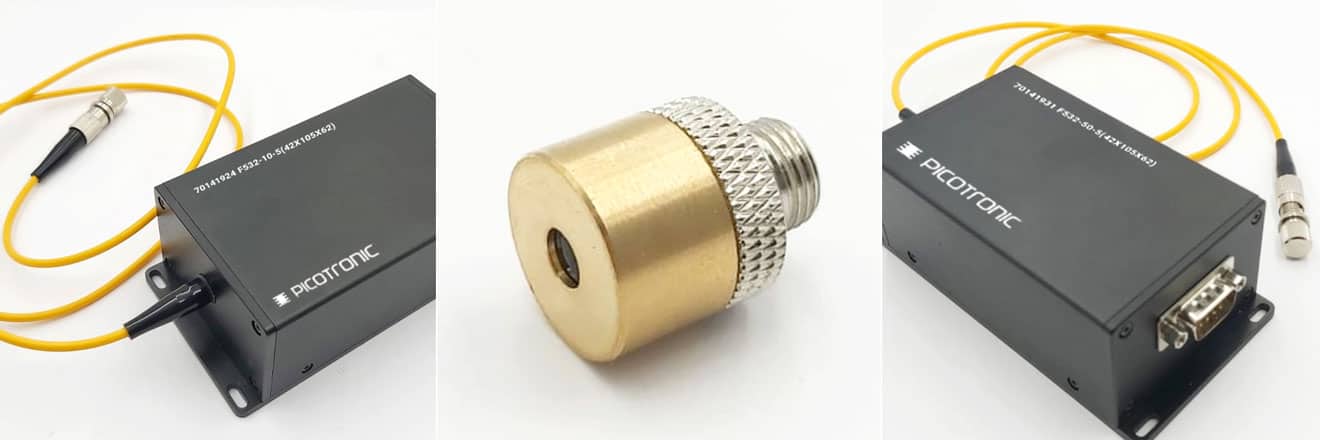

Fasergekoppelte Diodenlaser für entfernte Anwendungen

Fasergekoppelte Diodenlaser, oder kurz Faserlaser, eigenen sich hervorragend, wenn Laser und Laserstrahlquelle an zwei unterschiedlichen Orten platziert werden (müssen).

Fasergekoppelte Diodenlaser bieten mehrere Vorteile:

Kreisförmiges und homogenisiertes Intensitätsprofil und somit eine symmetrische Strahlqualität
Laserstrahlquelle und mögliche Kühlkörper können bei Platzmangel entfernt vom Einsatzort des Lasers platziert werden
Laserstrahlquelle kann bei Defekt oder beim Erreichen der Lebensdauer einfach getauscht werden, ohne die Ausrichtung des Messtandes bzw. der Anlage zu verändern oder diese demontieren zu müssen

Wie funktionieren Diodenlaser?

Diodenlaser sind Lasersysteme, bei denen das Licht mit Hilfe von Halbleitermaterialien erzeugt wird. Einbaufertige Halbleiterbauelement werden als Laserdiode oder Emitter bezeichnet. Durch elektrische Energie werden im Halbleitermaterial der Laserdiode Photonen erzeugt, durch physikalische Effekte verstärkt und von der Laserdiode ausgekoppelt.

Bei dieser Form der Anwendung werden die Module auch als direkte Diodenlaser bezeichnet.

In vielen Anwendungsfällen ist es jedoch zweckmäßig, den Ausgang einer Laserdiode in eine Lichtleitfaser einzukoppeln, um das Licht an den Ort zu leiten, an dem es benötigt wird.

Hierbei wird das emittierte Laserlicht von einer oder mehrerer Laserdioden über verschiedene optische Komponenten in eine sogenannte Auskoppelfaser eingekoppelt.

Solche Fasern bestehen zumeist aus einem Kern und einer Ummantelung aus einem anderen Material, mit einem anderen Brechungsindex.

Durch den Unterschied der Brechungsindizes kommt es an der Oberfläche des Kerns zu einer Totalreflexion des Laserlichtes und das Licht wird bis zum Faserausgang weitertransportiert.

Welche Anwendungsgebiete sind für fasergekoppelte Diodenlaser zweckmäßig?

Holzbearbeitung / Holzfertigteile

z.B. bei der Positionierung und 3D-Messung im Innenausbau oder der Möbelindustrie

Automobilbranche / Flugzeugindustrie / Bootsbau

z.B. Plazierung für Montage, Projektion zur Qualitätskontrolle

Baugewerbe / Betonindustrie

z.B. für die Projektion bei Betonfertigteilen, Mauern und Trockenbau

Metall- und Steinindustrie

z.B. als effektive Rüsthilfe, exakte Übertragung von Zeichnungen

Textilindustrie

z.B. beim Zuschnitt von Leder, Segeln, Markisen oder Pool-Abdeckungen
