€329.90*

Prices incl. VAT. No shipping costs for orders over 100 Euro in the EU

Available, delivery time: 1-2 days

Product number: 70160413

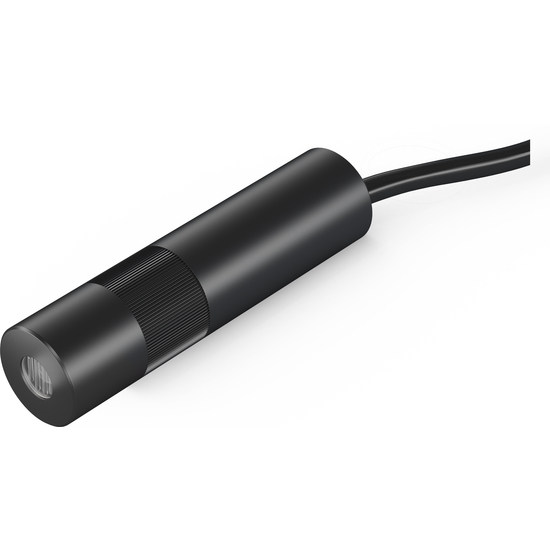

Product information "Doe laser, red, 635 nm, 10 mW, 24 V DC, Ø16x62 mm, Laser Class 2M, Focus adjustable, Cable length 3…"

focusable isolated DOE lasermodule, red, 635nm, 10mW, 24V DC, 16x62mm, class 1, inkl. DOE R255 65 Lines 17,6° @635nm

Accessesories

BALLHEAD-MOUNT-16(25x75)
Bracket for Lasermodule 16mm Mount-16(30x65)
Picotronic Bracket Mount-16(30x65) MULTI-MOUNT-16(45x75)-MAGNETIC
Magnetic Mount for Lasermodul 16mm MULTI-MOUNT-16(45x75)
Mount for Lasermodul 16mm LFNT-24
Power supply 24 V DC (1,000 mA) PICO-LENS-CLEANING-PEN-MICRO
Picotronic accessory HS-LENS-CLEANING-PEN PICO-LPG-635-660
certified Laser Safety Eyewear PICO-LPG-635-660 according to DIN EN 207, suitable for red wavelengths >630 - 700 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications, Research and Development

Main Data

  • EAN: 4055132021566
  • Warranty: 1 years
  • customs tarif number: 90132000000

Technical Parameters

  • Lifetime: > 10,000 h
  • Operating Temperature: -20°C - 50 °C
  • Storage Temperature: -40°C - 80 °C

Optical Parameters

  • Beam Shape: DOE
  • Optical Power: 10 mW
  • Laser Class: 2M
  • Divergence: D - 0.5 mrad
  • Operating Distance: 2 m
  • Optics: glass lens AR coated
  • Laser technology: Single Mode Diode
  • Focus: adjustable

Electrical Parameters

  • Potential of Housing: isolated
  • Operating Voltage: 23.7 - 24.3, typ 24 V DC
  • Operating Current: 2 - 25, typ 5 mA
  • Cable color positive: white
  • Cable color GND: black
  • Stripping of cable cover: 50 mm

Mechanical Parameters

  • Size: Ø16x62 mm
  • Material: aluminium
  • Cable length: 300 mm
  • Wire type: 18AWG, black, 3,6mm
  • Output Aperture: 5 mm
  • Housing Color: black
  • Weight: 25 g
  • Stripping of wire: 5 mm

DOE

  • Alpha: 24.7 °
  • Beta: 17.6 °
  • Gamma: 0.27 °
  • Delta: 17.6 °
  • Diameter (without holder): 8 mm
  • Width (without Holder): 0.63 mm
  • Material: PC
