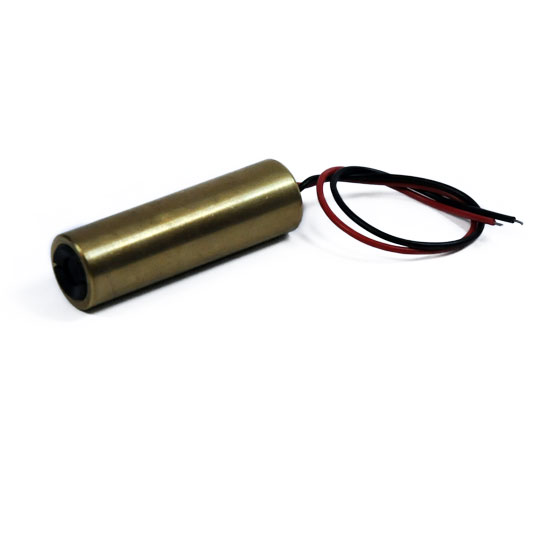

Dot laser, red, 670 nm, 1 mW, 3 V DC, Ø14x45 mm, Laser Class 2, Focus fixed (5.0m), Cable length 100 mm
€55.89
Available in 75 days, delivery time 1-2 days
Product information "Dot laser, red, 670 nm, 1 mW, 3 V DC, Ø14x45 mm, Laser Class 2, Focus fixed (5.0m), Cable length 100 mm"
isolated Dot lasermodule, red, 670nm, 1mW, 3V DC, 14x45mm, class 2
- Operating Voltage 3 V DC
- Glas lenses anti reflex coated
- Compact size
- Fixed focus
- Laser Class 2
Main Data
- EAN: 4260129045382
- Warranty: 1 years
- Customs tariff number: 90132000000
Technical Parameters
- Lifetime: > 5,000 h
- Operating Temperature: -20°C - 50 °C
- Storage Temperature: -40°C - 80 °C
Optical Parameters
- Beam Shape: Dot
- Optical Power: 1 mW
- Laser Class: 2
- Divergence: B - 0.3 mrad
- Beam Diameter: 5 mm
- Size of Laserdot: <4mm@5m
- Operating Distance: 50 m
- Optics: glass lens AR coated
- Laser technology: diode
- Focus: fixed (5.0m)
Electrical Parameters
- Potential of Housing: isolated
- Operating Voltage: 2.7 - 3.3, typ 3 V DC
- Operating Current: 25 - 70, typ 45 mA
- Cable color positive: red
- Cable color ground: black
- Power Supply: Power Supply with stripped/tinned wires, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max.
Mechanical Parameters
- Size: Ø14x45 mm
- Material: Brass
- Cable length: 100 mm
- Wire type: 26AWG, 0,14mm²
- Output Aperture: 5 mm
- Weight: 35 g
Holosun
- BKA exception: no
