Dot laser, red, 650 nm, 1 mW, 3 V DC, Ø14x45 mm, Laser Class 2, Focus fixed (10.0m), Cable length 1…
![](https://shop.picotronic.de/media/2a/g0/a2/1605713002/cbf6ca4e1720c494b7d08d5c31c5fc53.jpg?ts=1605713002)
![](https://shop.picotronic.de/media/4b/4f/14/1605713823/59dfa9f84665c0cdf62da60cdada8797.jpg?ts=1605713824)
![](https://shop.picotronic.de/media/9d/4c/cd/1733230989/4508b82f0437e862125259a28ec88bd8.jpg?ts=1733230989)
![](https://shop.picotronic.de/media/de/4e/48/1730467136/6cea5d2b390daa3cee93f9c004173d77.jpg?ts=1730467136)
![](https://shop.picotronic.de/media/50/ed/38/1730467136/9cb5d73c713e1390e3efcb0299a55180.jpg?ts=1730467136)
![](https://shop.picotronic.de/media/c0/a8/76/1730467136/13ea09c1cea5d46562df7d1205494d57.jpg?ts=1730467136)
![](https://shop.picotronic.de/media/17/84/05/1605713823/c5c19f4bf86f1e16904a31cb7e5b6503.jpg?ts=1605713824)
![](https://shop.picotronic.de/media/fa/b3/76/1605713824/7095c977eae3997a4c07867a9ae5a1df.jpg?ts=1605713825)
![](https://shop.picotronic.de/media/52/ba/dd/1605713824/01d9a9d4aa46f46be5d9d9304c5d4273.jpg?ts=1605713825)
![](https://shop.picotronic.de/media/be/62/f8/1605713825/eaddaee86ae2c17e0543bc1e34f6aaee.jpg?ts=1605713825)
![](https://shop.picotronic.de/media/33/16/36/1605713825/3fb932600e5ad4126f7d2b329f1485f8.jpg?ts=1605713825)
![](https://shop.picotronic.de/media/81/24/2e/1605713825/099bec2d1791120caa086830625e1326.jpg?ts=1605713826)
![](https://shop.picotronic.de/media/b8/f5/af/1605713089/994c02f365b1933223b7e24d60343f2f.jpg?ts=1605713090)
![](https://shop.picotronic.de/media/2a/g0/a2/1605713002/cbf6ca4e1720c494b7d08d5c31c5fc53.jpg?ts=1605713002)
![](https://shop.picotronic.de/media/4b/4f/14/1605713823/59dfa9f84665c0cdf62da60cdada8797.jpg?ts=1605713824)
![](https://shop.picotronic.de/media/9d/4c/cd/1733230989/4508b82f0437e862125259a28ec88bd8.jpg?ts=1733230989)
![](https://shop.picotronic.de/media/de/4e/48/1730467136/6cea5d2b390daa3cee93f9c004173d77.jpg?ts=1730467136)
![](https://shop.picotronic.de/media/50/ed/38/1730467136/9cb5d73c713e1390e3efcb0299a55180.jpg?ts=1730467136)
![](https://shop.picotronic.de/media/c0/a8/76/1730467136/13ea09c1cea5d46562df7d1205494d57.jpg?ts=1730467136)
![](https://shop.picotronic.de/media/17/84/05/1605713823/c5c19f4bf86f1e16904a31cb7e5b6503.jpg?ts=1605713824)
![](https://shop.picotronic.de/media/fa/b3/76/1605713824/7095c977eae3997a4c07867a9ae5a1df.jpg?ts=1605713825)
![](https://shop.picotronic.de/media/52/ba/dd/1605713824/01d9a9d4aa46f46be5d9d9304c5d4273.jpg?ts=1605713825)
![](https://shop.picotronic.de/media/be/62/f8/1605713825/eaddaee86ae2c17e0543bc1e34f6aaee.jpg?ts=1605713825)
![](https://shop.picotronic.de/media/33/16/36/1605713825/3fb932600e5ad4126f7d2b329f1485f8.jpg?ts=1605713825)
![](https://shop.picotronic.de/media/81/24/2e/1605713825/099bec2d1791120caa086830625e1326.jpg?ts=1605713826)
![](https://shop.picotronic.de/media/b8/f5/af/1605713089/994c02f365b1933223b7e24d60343f2f.jpg?ts=1605713090)
![](https://shop.picotronic.de/media/2a/g0/a2/1605713002/cbf6ca4e1720c494b7d08d5c31c5fc53.jpg?ts=1605713002)
![](https://shop.picotronic.de/media/4b/4f/14/1605713823/59dfa9f84665c0cdf62da60cdada8797.jpg?ts=1605713824)
![](https://shop.picotronic.de/media/9d/4c/cd/1733230989/4508b82f0437e862125259a28ec88bd8.jpg?ts=1733230989)
![](https://shop.picotronic.de/media/de/4e/48/1730467136/6cea5d2b390daa3cee93f9c004173d77.jpg?ts=1730467136)
![](https://shop.picotronic.de/media/50/ed/38/1730467136/9cb5d73c713e1390e3efcb0299a55180.jpg?ts=1730467136)
![](https://shop.picotronic.de/media/c0/a8/76/1730467136/13ea09c1cea5d46562df7d1205494d57.jpg?ts=1730467136)
![](https://shop.picotronic.de/media/17/84/05/1605713823/c5c19f4bf86f1e16904a31cb7e5b6503.jpg?ts=1605713824)
![](https://shop.picotronic.de/media/fa/b3/76/1605713824/7095c977eae3997a4c07867a9ae5a1df.jpg?ts=1605713825)
![](https://shop.picotronic.de/media/52/ba/dd/1605713824/01d9a9d4aa46f46be5d9d9304c5d4273.jpg?ts=1605713825)
![](https://shop.picotronic.de/media/be/62/f8/1605713825/eaddaee86ae2c17e0543bc1e34f6aaee.jpg?ts=1605713825)
![](https://shop.picotronic.de/media/33/16/36/1605713825/3fb932600e5ad4126f7d2b329f1485f8.jpg?ts=1605713825)
![](https://shop.picotronic.de/media/81/24/2e/1605713825/099bec2d1791120caa086830625e1326.jpg?ts=1605713826)
![](https://shop.picotronic.de/media/b8/f5/af/1605713089/994c02f365b1933223b7e24d60343f2f.jpg?ts=1605713090)
![](https://shop.picotronic.de/media/2a/g0/a2/1605713002/cbf6ca4e1720c494b7d08d5c31c5fc53.jpg?ts=1605713002)
![](https://shop.picotronic.de/media/4b/4f/14/1605713823/59dfa9f84665c0cdf62da60cdada8797.jpg?ts=1605713824)
![](https://shop.picotronic.de/media/9d/4c/cd/1733230989/4508b82f0437e862125259a28ec88bd8.jpg?ts=1733230989)
![](https://shop.picotronic.de/media/de/4e/48/1730467136/6cea5d2b390daa3cee93f9c004173d77.jpg?ts=1730467136)
![](https://shop.picotronic.de/media/50/ed/38/1730467136/9cb5d73c713e1390e3efcb0299a55180.jpg?ts=1730467136)
![](https://shop.picotronic.de/media/c0/a8/76/1730467136/13ea09c1cea5d46562df7d1205494d57.jpg?ts=1730467136)
![](https://shop.picotronic.de/media/17/84/05/1605713823/c5c19f4bf86f1e16904a31cb7e5b6503.jpg?ts=1605713824)
![](https://shop.picotronic.de/media/fa/b3/76/1605713824/7095c977eae3997a4c07867a9ae5a1df.jpg?ts=1605713825)
![](https://shop.picotronic.de/media/52/ba/dd/1605713824/01d9a9d4aa46f46be5d9d9304c5d4273.jpg?ts=1605713825)
![](https://shop.picotronic.de/media/be/62/f8/1605713825/eaddaee86ae2c17e0543bc1e34f6aaee.jpg?ts=1605713825)
![](https://shop.picotronic.de/media/33/16/36/1605713825/3fb932600e5ad4126f7d2b329f1485f8.jpg?ts=1605713825)
![](https://shop.picotronic.de/media/81/24/2e/1605713825/099bec2d1791120caa086830625e1326.jpg?ts=1605713826)
![](https://shop.picotronic.de/media/b8/f5/af/1605713089/994c02f365b1933223b7e24d60343f2f.jpg?ts=1605713090)
€52.90*
Available, delivery time: 1-2 days
Product information "Dot laser, red, 650 nm, 1 mW, 3 V DC, Ø14x45 mm, Laser Class 2, Focus fixed (10.0m), Cable length 1…"
isolated Dot lasermodule, red, 650nm, 1mW, 3V DC, 14x45mm, class 2
- Laser Class 2
- Operating Voltage 3 V DC
- Compact size
- Glas lenses anti reflex coated
- Low power consumption
Accessesories
Magnetic Mount for Lasermodul 14mm
14mm(48x86) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 14mm
Magnetic Mount for Lasermodul 14mm
Ø14mm(45x75) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 14mm
Mount for Lasermodul 14mm
Ø14mm(45x75) MULTI-MOUNT für Lasermodule mit Durchmesser 14mm
Bracket for Lasermodule 14mm
Ø14mm(25x72) Halterung-Ballhead für Lasermodule mit Durchmesser 14mm
Power supply 3V DC (1200mA)
Netzteil, Ausgang: 3V DC, offene Kabelenden, Betriebsspannung: 100-240V AC
Picotronic accessory PICO-LENS-CLEANING-PEN-MICRO
certified Laser Safety Eyewear PICO-LPG-635-660 according to DIN EN 207, suitable for red wavelengths >630 - 700 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications, Research and Development
Main Data
- EAN: 4260129043319
- Warranty: 1 years
- Customs tariff number: 90132000000
Technical Parameters
- Lifetime: > 5,000 h
- Operating Temperature: -20°C - 50 °C
- Storage Temperature: -40°C - 80 °C
Optical Parameters

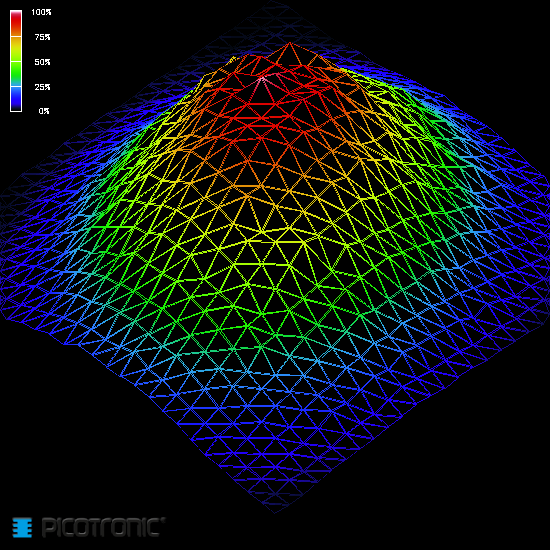

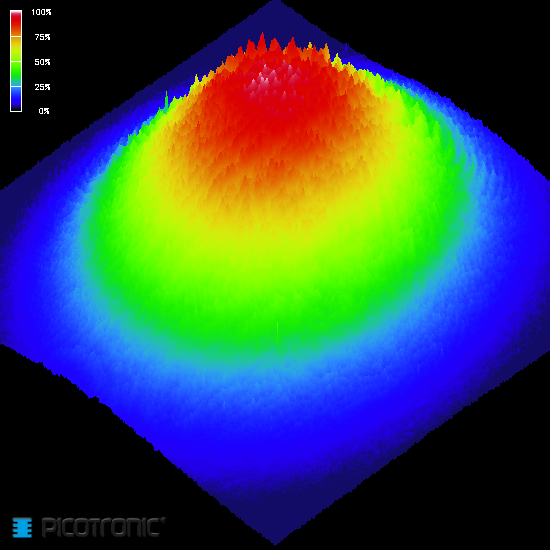

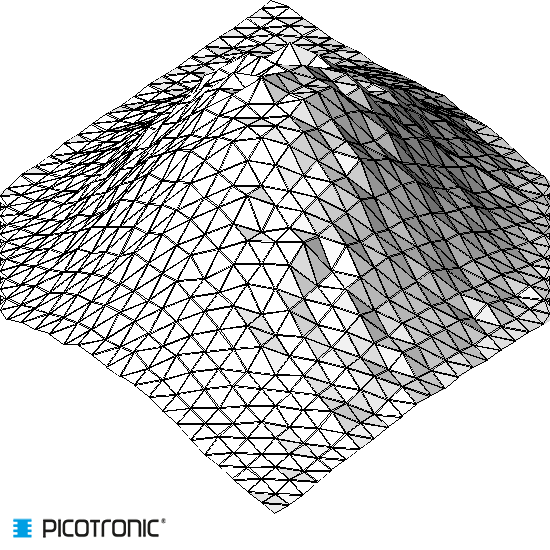

- Beam Shape: Dot
- Optical Power: 1 mW
- Laser Class: 2
- Divergence: B - 0.3 mrad

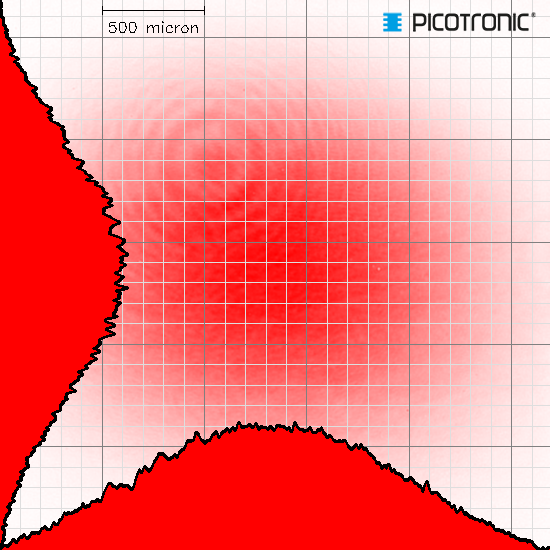

- Beam Diameter: 5 mm

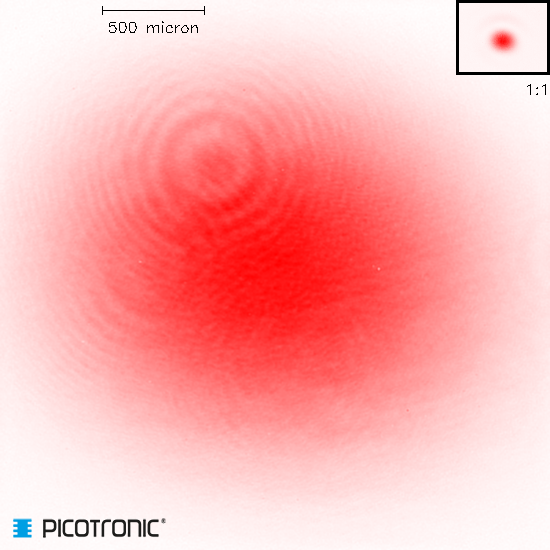

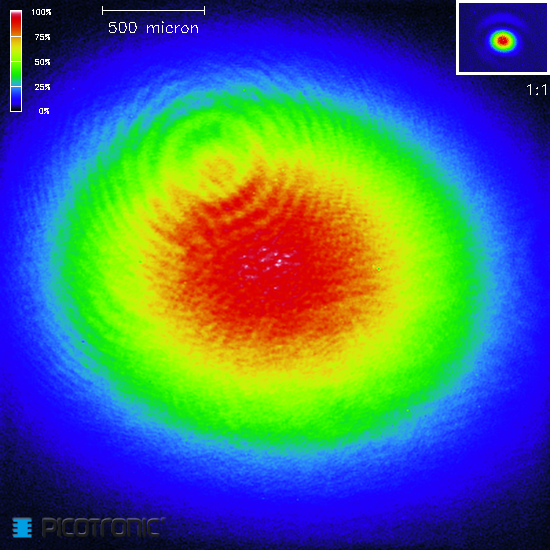

- Size of Laserdot: <4mm@10m
- Operating Distance: 50 m
- Optics: glass lens AR coated
- Laser technology: Single Mode Diode
- Focus: fixed (10.0m)
Electrical Parameters
- Potential of Housing: isolated
- Operating Voltage: 2.7 - 3.3, typ 3 V DC
- Operating Current: 10 - 35, typ 21 mA
- Cable color positive: red
- Cable color GND: green
- Power Supply: Power Supply with stripped/tinned wires, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max.
Mechanical Parameters
- Size: Ø14x45 mm
- Material: Brass
- Cable length: 100 mm
- Wire type: Belden, Typ 1007, 26AWG
- Output Aperture: 5 mm
- Housing Color: brass
- Weight: 35 g
- Stripping of wire: 5 mm
