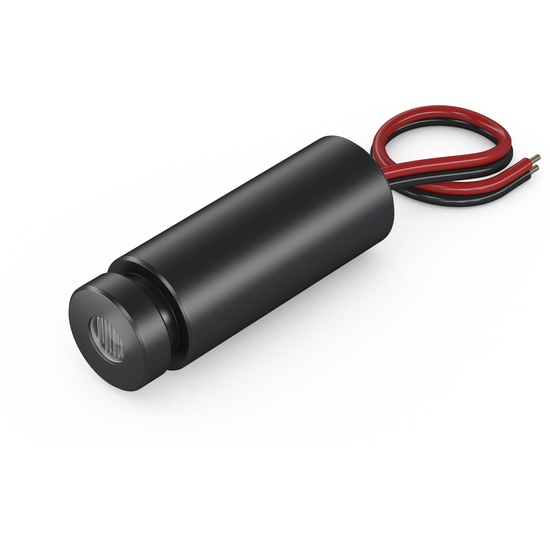

Dot laser, red, 650 nm, 1 mW, 3 V DC, Ø12x34 mm, Laser Class 2, Focus adjustable, Cable length 100…

€28.91*

Prices incl. VAT. No shipping costs for orders over 100 Euro in the EU

Available in 53 days, delivery time 1-2 days

Notify me when the item is available.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Privacy

By selecting continue you confirm that you have read our data protection information and accepted our general terms and conditions. *

Product number: 70100501

Product information "Dot laser, red, 650 nm, 1 mW, 3 V DC, Ø12x34 mm, Laser Class 2, Focus adjustable, Cable length 100…"

The type is a dot laser that projects a laser dot. The laser module emits light of the wavelength . This diode laser module measures x . Accordingly, it is a small and effective laser source. This diode laser module is distinguished by its high efficiency and its high lifetime of more than .High-quality laser module. The optimal operation range of the laser is . This laser module can be operated without series resistor or control electronics.You may use our battery pack with 2 x 1.5 volt batteries as power supply. This positioning laser is an universal tool for industry, hobby and trade. It reduces the effort that has to be put into positioning and alignment tasks. This module is laser class .

Operating Voltage 3 V DC
Laser Class 2
Small laser head
Adjustable focus
Low power consumption

Accessesories

Magnetic Mount for Lasermodul 12mm
12mm(48x86) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 12mm Magnetic Mount for 12mm Laser Module
Ø12mm (36x62) Magnetic holder for 12mm laser module, diameter 36mm, height 62mm, plastic Magnetic Mount for Lasermodul 12mm
Ø12mm(45x75) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 12mm Mount for Lasermodul 12mm
Ø12mm(45x75) MULTI-MOUNT für Lasermodule mit Durchmesser 12mm Mount for Lasermodul 12mm
Ø12mm(20x57) MOUNT für Lasermodule mit Durchmesser 12mm Bracket for Lasermodule 12mm
Ø12mm(25x70) Halterung-Ballhead für Lasermodule mit Durchmesser 12mm Power supply 3V DC (1200mA)
Netzteil, Ausgang: 3V DC, offene Kabelenden, Betriebsspannung: 100-240V AC Picotronic accessory PICO-LENS-CLEANING-PEN-MICRO
certified Laser Safety Eyewear PICO-LPG-635-660 according to DIN EN 207, suitable for red wavelengths >630 - 700 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications, Research and Development
Bracket for Lasermodule 12mm

Main Data

EAN: 4260129042817
Warranty: 1 years
Customs tariff number: 90132000000

Technical Parameters

Lifetime: > 5,000 h
Operating Temperature: -20°C - 50 °C
Storage Temperature: -40°C - 80 °C

Optical Parameters

Beam Shape: Dot
Optical Power: 1 mW
Laser Class: 2
Divergence: G - 0.8 mrad
Size of Laserdot: adjustable
Operating Distance: 10 m
Optics: glass lens AR coated
Laser technology: diode
Focus: adjustable

Electrical Parameters

Potential of Housing: isolated
Operating Voltage: 2.7 - 3.3, typ 3 V DC
Operating Current: 10 - 30, typ 20 mA
Cable color positive: red
Cable color GND: black
Power Supply: Power Supply with stripped/tinned wires, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max.

Mechanical Parameters

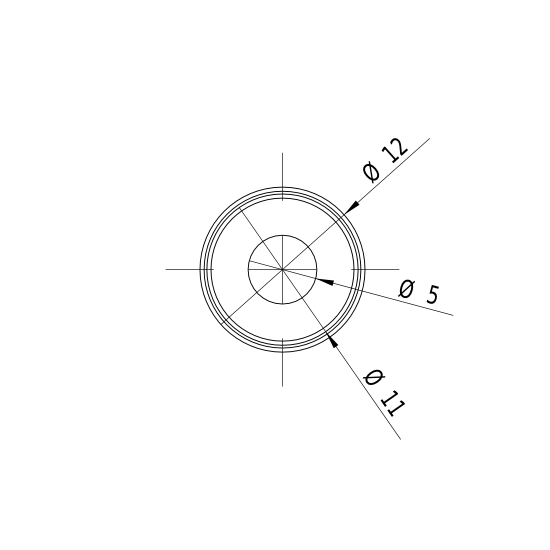

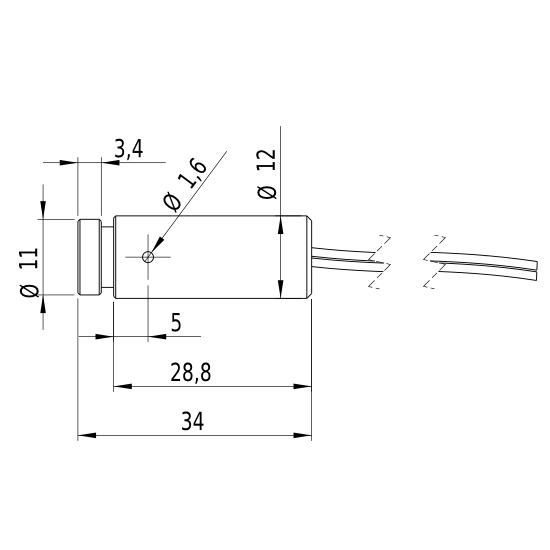

Size: Ø12x34 mm
Material: Brass
Cable length: 100 mm
Wire type: 26AWG, 0,14mm²
Output Aperture: 5 mm
Housing Color: black
Weight: 17 g
Stripping of wire: 5 mm
