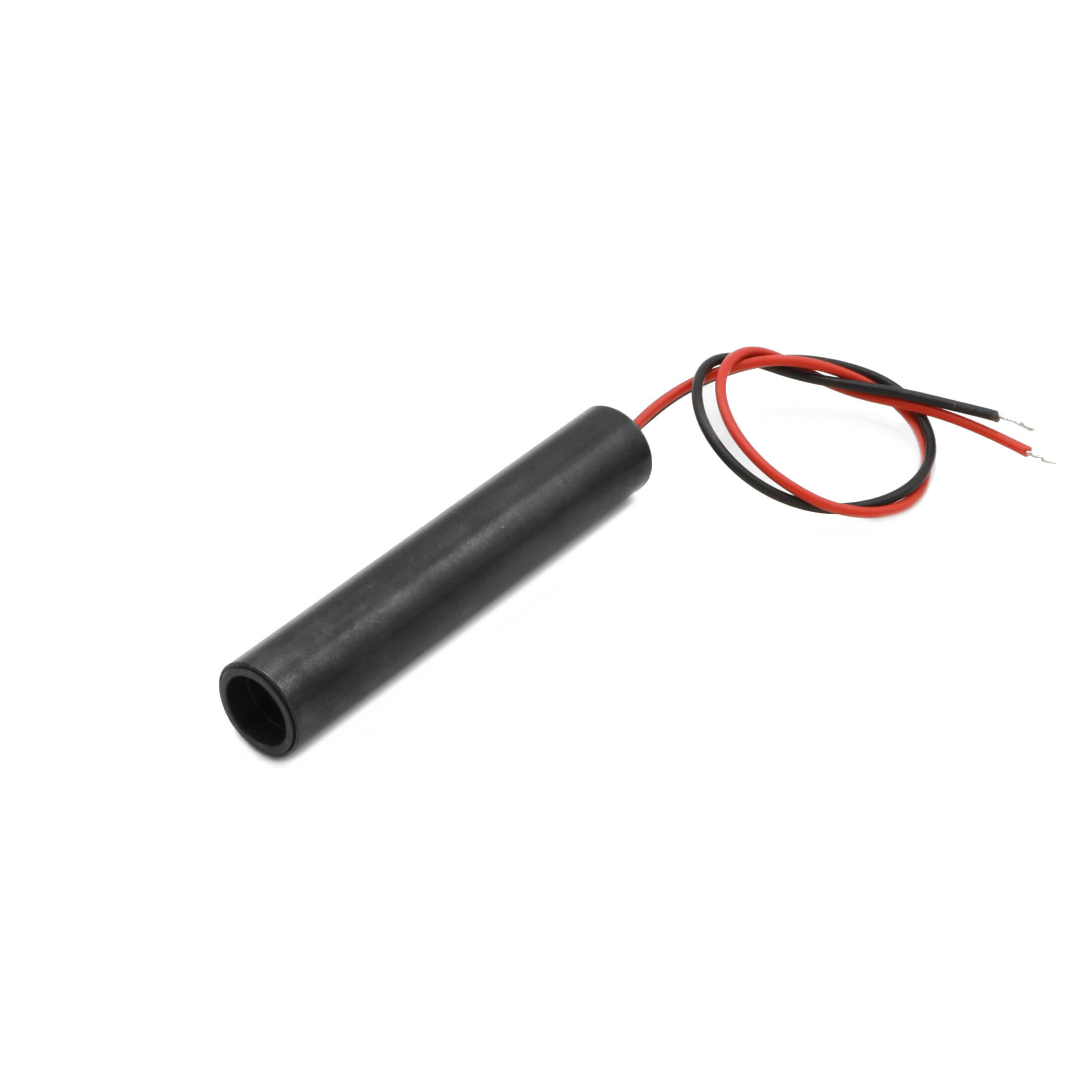

isolated Dot lasermodule, red, 635nm, 1mW, 3V DC, 11x60mm, class 2
€81.90
Available, delivery time: 1-2 days
Product information "isolated Dot lasermodule, red, 635nm, 1mW, 3V DC, 11x60mm, class 2"
isolated Dot lasermodule, red, 635nm, 1mW, 3V DC, 11x60mm, class 2
- Operating Voltage 3 V DC
- Glas lenses anti reflex coated
- Laser Class 2
- Fixed focus
- Compact size
- Beam shape: dot
- Wavelength. 635nm (red)
- Optical output power: 1mW
- Supply voltage: 3V DC
- Warranty: 1 year
Main Data
- EAN: 4260129042701
- Warranty: 1 years
- Customs tariff number: 90132000000
Technical Parameters
- Lifetime: > 5,000 h
- Operating Temperature: -20°C - 50 °C
- Storage Temperature: -40°C - 80 °C
Optical Parameters
- Beam Shape: Dot
- Optical Power: 1 mW
- Laser Class: 2
- Divergence: 0.2 mrad
- Beam Diameter: 8 mm
- Size of Laserdot: <9.5mm@40m
- Operating Distance: 100 m
- Optics: glass lens AR coated
- Laser technology: Single Mode Diode
- Focus: collimated
Electrical Parameters
- Potential of Housing: isolated
- Operating Voltage: 2.7 - 3.3, typ 3 V DC
- Operating Current: 20 - 50, typ 30 mA
- Cable color positive: red
- Cable color ground: black
- Power Supply: Power Supply with stripped/tinned wires, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max.
Mechanical Parameters
- Size: Ø11x60 mm
- Material: Brass
- Cable length: 100 mm
- Wire type: Belden, Typ 1007, 26AWG
- Output Aperture: 8 mm
- Housing Color: black
- Weight: 22 g
- Stripping of wire: 5 mm
Holosun
- BKA exception: no
Accessesories
Power supply 3V DC (1200mA)
Netzteil, Ausgang: 3V DC, offene Kabelenden, Betriebsspannung: 100-240V AC
certified laser safety glasses PICO-LPG-635-660 according to DIN EN 207, suitable wavelength range red >630 - 700 nm, comfortable fit over glasses or alone, side protection for wide field of view, for laser welding, laser cutting, laser marking, for cosmetic applications, research and development
Picotronic accessory PICO-LENS-CLEANING-PEN-MICRO
