Picotronic Bracket PENDULUM-MOUNT-22
€144.89*
Available, delivery time: 1-2 days
Product number:
70120486
Product information "Picotronic Bracket PENDULUM-MOUNT-22"

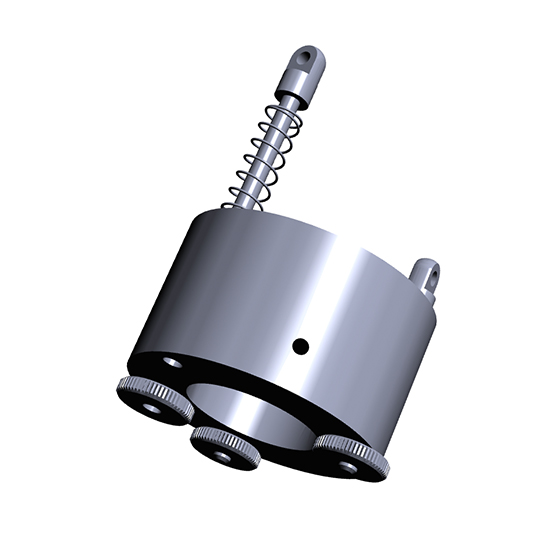

Pendulum Mount for Lasermodul 22mm. For fine adjusting of the optical axis
Main Data
- EAN: 4260129045160
- Customs tariff number: 90132000900
Technical Parameters
- Operating Temperature: -20°C - 50 °C
- Storage Temperature: -50°C - 70 °C
Electrical Parameters
- Operating Voltage: max 0 V DC
Mechanical Parameters
- Size: Ø42x175 mm
- Material: aluminium
- Housing Color: black
- Weight: 240 g

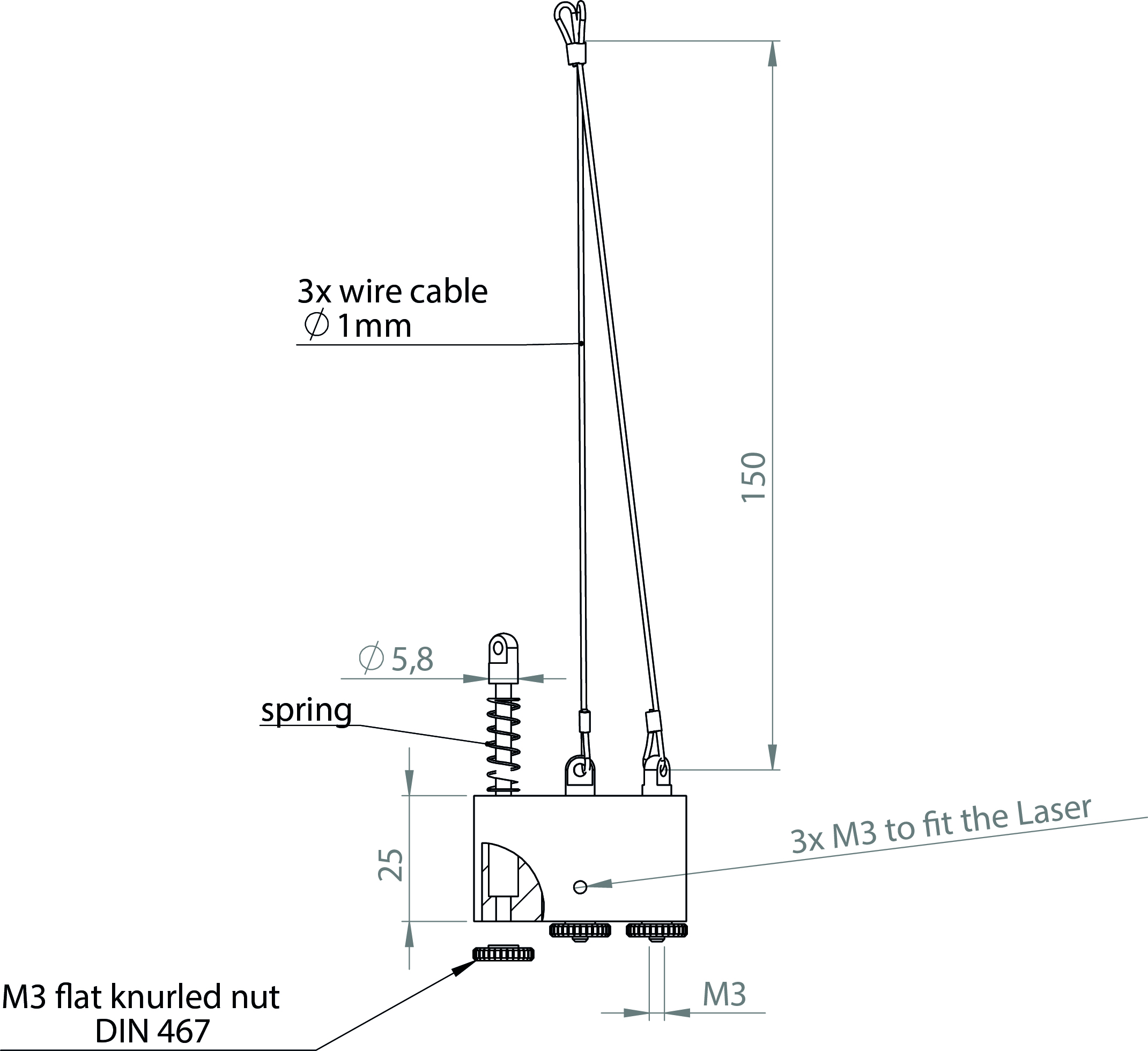

Mount Parameters
- Total Height (h1): 175 mm
- Height of Base (h3): 25 mm
- Mount Diameter (d1): Ø 22 mm
- Diameter of Base (d2): Ø 45 mm
