€62.90*

Prices incl. VAT. No shipping costs for orders over 100 Euro in the EU

Available in 35 days, delivery time 1-2 days

Privacy
Product number: 70114157
Product information "Dot laser, red, 635 nm, 0.4 mW, 5 V DC, Ø8x21 mm, Laser Class 1, Focus collimated, Cable length 100…"

Punktlaser, rot, 635nm, 0,4mW, Laser Klasse 1, Fokus kollimiert, 5V DC, 8x21mm, Achsparallel

Bei dem Typ DI635-0.4-5(8x21)-AP handelt es sich um einen Laser zur Projektion eines roten Laserpunktes, der durch die Wellenlänge von 635nm wesentlich besser sichtbar ist, als ein vergleichbarer Laser mit 650nm. Der Laser verfügt über eine sehr kompakte Bauform (8x21mm). Das Modul besitzt eine fest eingestellte Optik und ist achsparallel ausgerichtet (<0,1°). Durch den kollimierten Laserstrahl wächst die erzeugte Punktgröße, mit zunehmendem Arbeitsabstand, stetig geringfügig an. Das Produkt kann hervorragend in Lichtschranken, Nivelliereinrichtungen oder Pointer-Anwendungen, in Industrie, Handwerk, Hobby oder Showbereich einsetzen werden. Dieses Modul fällt in die Laserklasse 1.

  • Axial parallel
  • Glas lenses anti reflex coated
  • Compact size
  • Laser Class 1
  • Operating Voltage 5 V DC
  • Abstrahlcharakteristik: elliptischer Punkt, Punktgröße <3..5mm@5m
  • Optische Leistung: 0,4mW (Laserklasse 1); Fokus kollimiert
  • Kompakte Bauform: 8x21mm; Achsabweichung: <0,15°
  • Für Anwendungen in z.B. Lichtschranken, Nivelliereinrichtungen oder Pointer-Anwendungen, in Industrie, Handwerk, Hobby oder dem Showbereich.
  • Spannungsversorgung 5V. Zur Stromversorgung können Sie z.B. unser Netzteil Picotronic LFNT-5 verwenden.

Accessesories

MULTI-MOUNT-08(45x75)-MAGNETIC
Magnetic Mount for Lasermodul 12mm MULTI-MOUNT-08(45x75)
Mount for Lasermodul 08mm BALLHEAD-MOUNT-08(25x66)
Bracket for Lasermodule 8mm LFNT-5
5V Power supply 5V DC (1000mA) PICO-LPG-635-660
certified Laser Safety Eyewear PICO-LPG-635-660 according to DIN EN 207, suitable for red wavelengths >630 - 700 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications, Research and Development LF-BRACKET08
Bracket for Lasermodule 8mm

Main Data

  • EAN: 4260129043432
  • Warranty: 1 years
  • customs tarif number: 90132000000

Technical Parameters

  • Lifetime: > 5,000 h
  • Operating Temperature: -20°C - 50 °C
  • Storage Temperature: -40°C - 80 °C

Optical Parameters

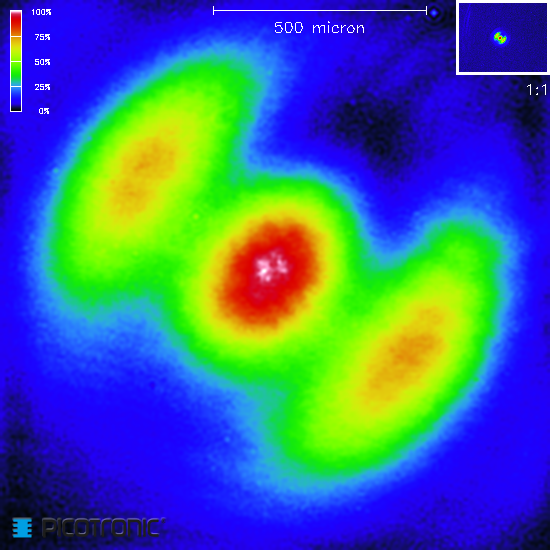

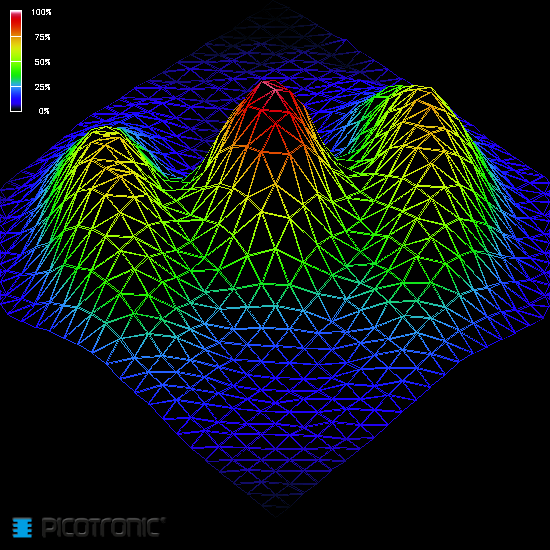

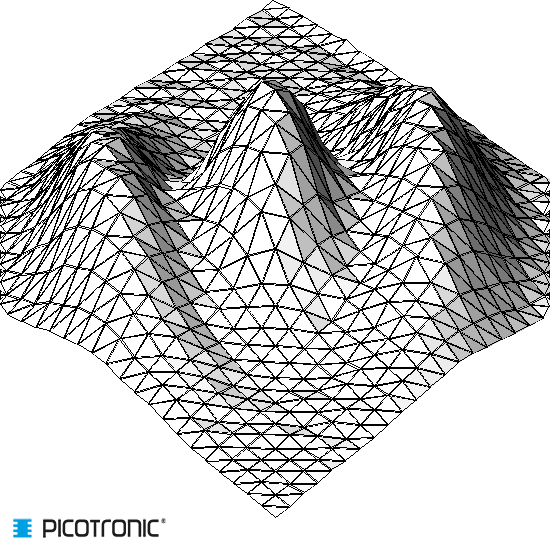

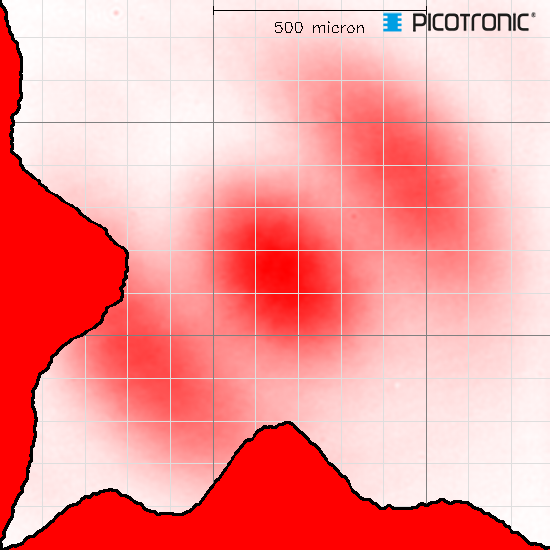

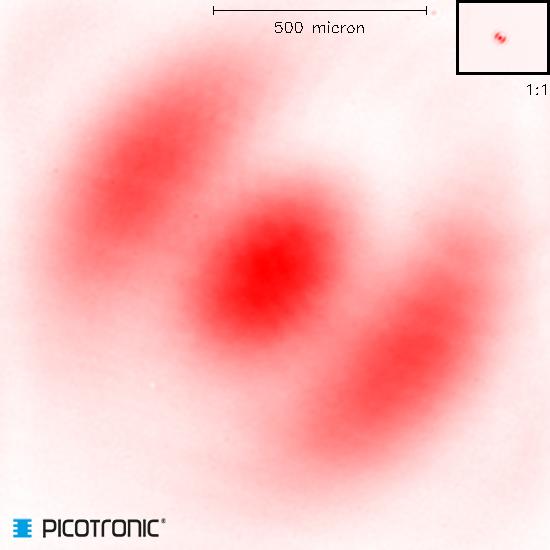

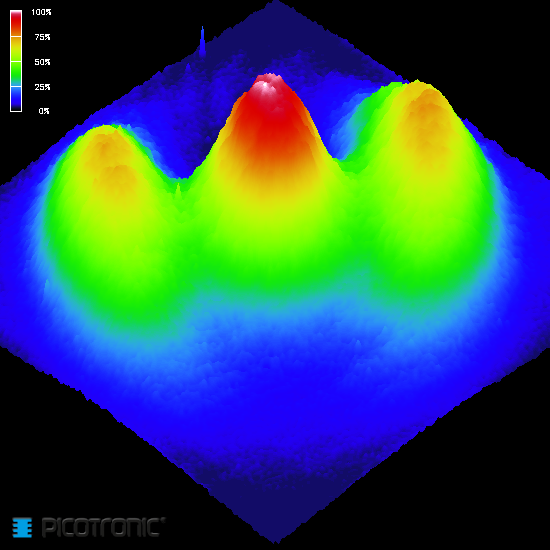

  • Beam Shape: Dot
  • Optical Power: 0.4 mW
  • Laser Class: 1
  • Divergence: I - 1.5 mrad
  • Beam Diameter: 2 mm
  • Size of Laserdot: <3..5mm@5m
  • Operating Distance: 10 m
  • Optics: glass lens AR coated
  • Laser technology: Single Mode Diode
  • Focus: collimated

Electrical Parameters

  • Operating Voltage: 4.5 - 5.5, typ 5 V DC
  • Operating Current: 15 - 45, typ 28 mA
  • Cable color positive: red
  • Cable color GND: blue
  • Power Supply: LFNT-5

Mechanical Parameters

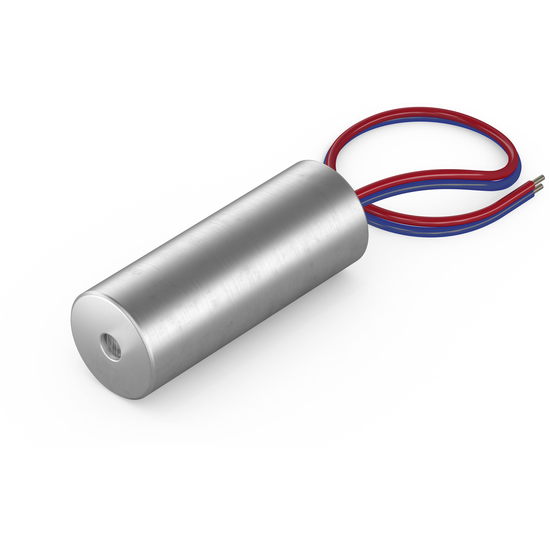

  • Size: Ø8x21 mm
  • Material: aluminium
  • Cable length: 100 mm
  • Wire type: 26AWG, 0,14mm²
  • Output Aperture: 2 mm
  • Housing Color: silver
  • Weight: 3 g
  • Stripping of wire: 5 mm

Buy DI635-0.4-5(8x21)-AP on Amazon
