Dot laser, red, 635 nm, 0.4 mW, 24 V DC, Ø12x45 mm, Laser Class 1, Focus adjustable, Cable length 1…

€85.89*

Prices incl. VAT. No shipping costs for orders over 100 Euro in the EU

Available, delivery time: 1-2 days

Product number: 70118063

Product information "Dot laser, red, 635 nm, 0.4 mW, 24 V DC, Ø12x45 mm, Laser Class 1, Focus adjustable, Cable length 1…"

isolated adjustable dot laser, red, 635nm, 0.4mW, 24V DC, 12x45mm, class 1

Operating Voltage 24 V DC
Adjustable focus
Small laser head
Laser Class 1

Accessesories

MULTI-MOUNT-12(45x75)-MAGNETIC
Magnetic Mount for Lasermodul 12mm MULTI-MOUNT-12(45x75)
Mount for Lasermodul 12mm Mount-12(20x57)
Mount for Lasermodul 12mm BALLHEAD-MOUNT-12(25x70)
Bracket for Lasermodule 12mm PICO-LPG-635-660
certified Laser Safety Eyewear PICO-LPG-635-660 according to DIN EN 207, suitable for red wavelengths >630 - 700 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications, Research and Development BALLHEAD-MOUNT-12-EP-70117875
Bracket for Lasermodule 12mm KS-MOUNT-12(36X62)-MAGNETIC
Magnetic Mount for Lasermodul 12mm

Main Data

EAN: 4260129048154
Warranty: 1 years
customs tarif number: 90132000000

Technical Parameters

Lifetime: > 5,000 h
Operating Temperature: -20°C - 50 °C
Storage Temperature: -40°C - 80 °C

Optical Parameters

Beam Shape: Dot
Optical Power: 0.4 mW
Laser Class: 1
Divergence: D - 0.5 mrad
Size of Laserdot: adjustable
Operating Distance: 10 m
Optics: glass lens AR coated
Laser technology: Single Mode Diode
Focus: adjustable

Electrical Parameters

Potential of Housing: isolated
Operating Voltage: 23.6 - 24.4, typ 24 V DC
Operating Current: 2 - 15, typ 5 mA
Cable color positive: red
Cable color GND: black

Mechanical Parameters

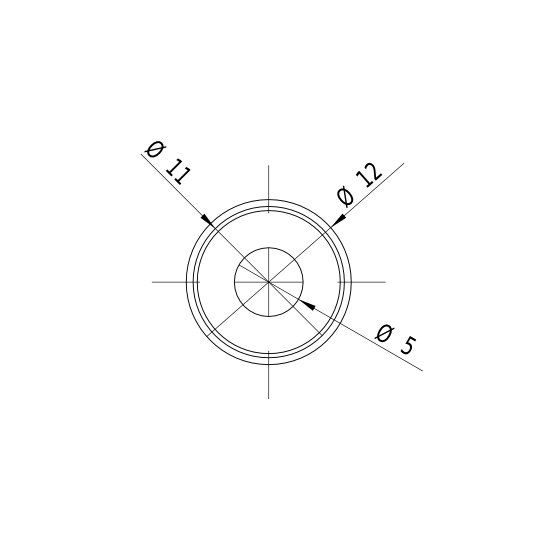

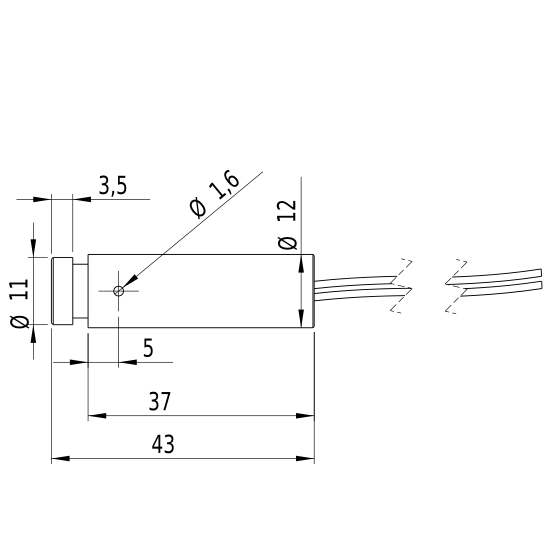

Size: Ø12x45 mm
Material: aluminium
Cable length: 100 mm
Wire type: 26AWG, 0,14mm²
Output Aperture: 3.5 mm
Housing Color: black
Weight: 17 g
Stripping of wire: 5 mm
