Dot laser, red, 650 nm, 0.4 mW, Ø14x64 mm, Laser Class 1, Focus fixed (5.0m)

Dot laser, red, 650 nm, 0.4 mW, Ø14x64 mm, Laser Class 1, Focus fixed (5.0m)
Dot laser, red, 650 nm, 0.4 mW, Ø14x64 mm, Laser Class 1, Focus fixed (5.0m)
Dot laser, red, 650 nm, 0.4 mW, Ø14x64 mm, Laser Class 1, Focus fixed (5.0m)
Dot laser, red, 650 nm, 0.4 mW, Ø14x64 mm, Laser Class 1, Focus fixed (5.0m)
Dot laser, red, 650 nm, 0.4 mW, Ø14x64 mm, Laser Class 1, Focus fixed (5.0m)
Dot laser, red, 650 nm, 0.4 mW, Ø14x64 mm, Laser Class 1, Focus fixed (5.0m)
Dot laser, red, 650 nm, 0.4 mW, Ø14x64 mm, Laser Class 1, Focus fixed (5.0m)
Dot laser, red, 650 nm, 0.4 mW, Ø14x64 mm, Laser Class 1, Focus fixed (5.0m)
Dot laser, red, 650 nm, 0.4 mW, Ø14x64 mm, Laser Class 1, Focus fixed (5.0m)
Dot laser, red, 650 nm, 0.4 mW, Ø14x64 mm, Laser Class 1, Focus fixed (5.0m)
Dot laser, red, 650 nm, 0.4 mW, Ø14x64 mm, Laser Class 1, Focus fixed (5.0m)
Dot laser, red, 650 nm, 0.4 mW, Ø14x64 mm, Laser Class 1, Focus fixed (5.0m)
Dot laser, red, 650 nm, 0.4 mW, Ø14x64 mm, Laser Class 1, Focus fixed (5.0m)
Dot laser, red, 650 nm, 0.4 mW, Ø14x64 mm, Laser Class 1, Focus fixed (5.0m)
Dot laser, red, 650 nm, 0.4 mW, Ø14x64 mm, Laser Class 1, Focus fixed (5.0m)
Dot laser, red, 650 nm, 0.4 mW, Ø14x64 mm, Laser Class 1, Focus fixed (5.0m)
Dot laser, red, 650 nm, 0.4 mW, Ø14x64 mm, Laser Class 1, Focus fixed (5.0m)
Dot laser, red, 650 nm, 0.4 mW, Ø14x64 mm, Laser Class 1, Focus fixed (5.0m)
Dot laser, red, 650 nm, 0.4 mW, Ø14x64 mm, Laser Class 1, Focus fixed (5.0m)
Dot laser, red, 650 nm, 0.4 mW, Ø14x64 mm, Laser Class 1, Focus fixed (5.0m)
Dot laser, red, 650 nm, 0.4 mW, Ø14x64 mm, Laser Class 1, Focus fixed (5.0m)
Dot laser, red, 650 nm, 0.4 mW, Ø14x64 mm, Laser Class 1, Focus fixed (5.0m)
Dot laser, red, 650 nm, 0.4 mW, Ø14x64 mm, Laser Class 1, Focus fixed (5.0m)
Dot laser, red, 650 nm, 0.4 mW, Ø14x64 mm, Laser Class 1, Focus fixed (5.0m)

€90.90*

Prices incl. VAT. No shipping costs for orders over 100 Euro in the EU

Available in 46 days, delivery time 1-2 days

Privacy
Product number: 70121889
Product information "Dot laser, red, 650 nm, 0.4 mW, Ø14x64 mm, Laser Class 1, Focus fixed (5.0m)"

Point lasermodule, red, 650nm, 0.4mW, class 1, focus 5m, 4.5V DC, 14x64mm

Bei dem Typ DC650-0.4-4.5(14x64)-S-AP handelt es sich um einen Punktlaser zur Projektion eines roten Laserpunktes. Das Lasermodul emittiert Strahlung der Wellenlänge 650nm. Das Modul enthält 3 Knopfzellen LR44 - im Lieferumfang enthalten. Hiermit ist ein kabelloser Betrieb über mehrere Stunden möglich. Dieses Dioden-Lasermodul mit den Abmaßen 14mm x 64mm ist eine sehr kleine und effektive Laserquelle. Typische Einsatzgebiete sind low-cost Anwendungen. Dieses Modul fällt in die Laserklasse 1.

  • Latching switch: Press the switch at the end of the laser module once and the laser is switched on permanently. Pressing it again switches the laser off again.

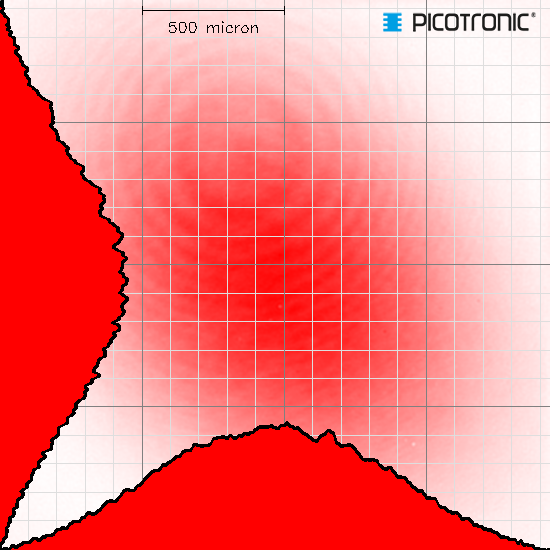

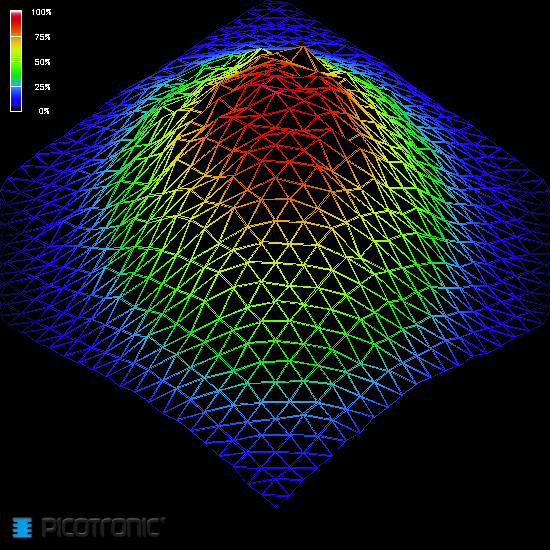

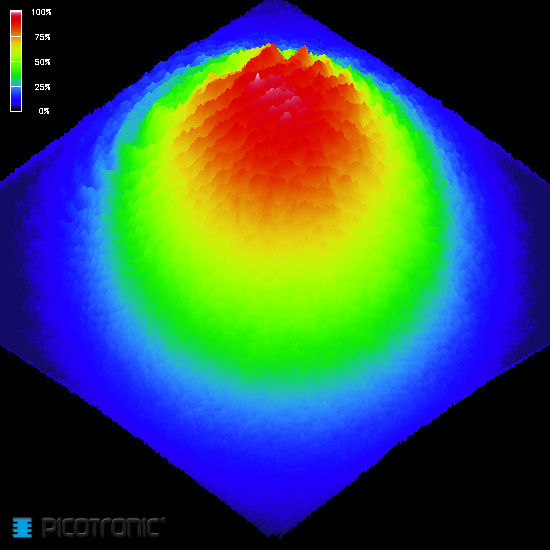

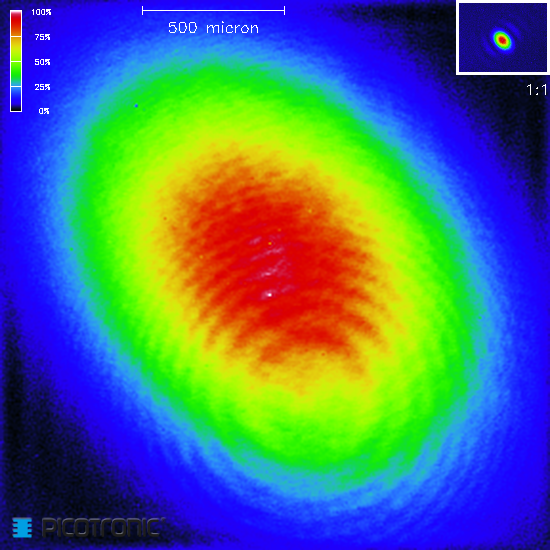

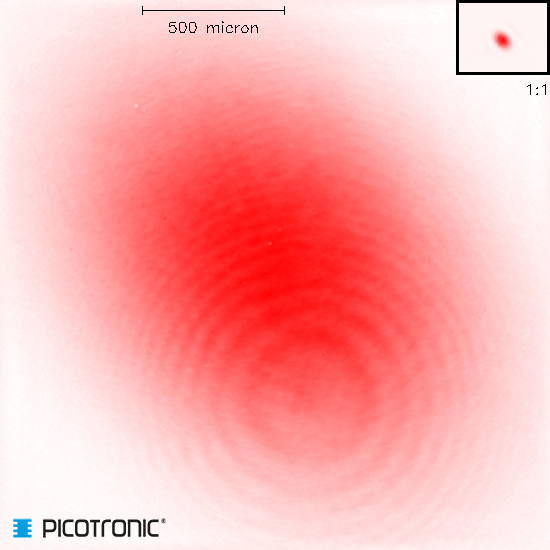

  • Beam characteristics: elliptical point, point size <3mm@5m
  • Optical Power: 0.4mW (Laser class1); focus 5m
  • Size: 14x64 mm; axis deviation <0.6°
  • For use in, for example, presentations, for the positioning of objects and applications in industry, craft, hobby or show area.

delivery content

Including 3x LR44

Accessesories

MULTI-MOUNT-14(45x75)-MAGNETIC
Magnetic Mount for Lasermodul 14mm MULTI-MOUNT-14(45x75)
Mount for Lasermodul 14mm BALLHEAD-MOUNT-14(25x72)
Bracket for Lasermodule 14mm PICO-LPG-635-660
certified Laser Safety Eyewear PICO-LPG-635-660 according to DIN EN 207, suitable for red wavelengths >630 - 700 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications, Research and Development

Main Data

  • EAN: 4260129047973
  • Warranty: 1 years
  • customs tarif number: 90132000000

Technical Parameters

  • Lifetime: > 5,000 h
  • Operating Temperature: -20°C - 50 °C
  • Storage Temperature: -40°C - 80 °C

Optical Parameters

  • Beam Shape: Dot
  • Optical Power: 0.4 mW
  • Laser Class: 1
  • Divergence: C - 0.4 mrad
  • Beam Diameter: 3 mm
  • Size of Laserdot: <3mm@5m
  • Operating Distance: 5 m
  • Optics: glass lens AR coated
  • Laser technology: Single Mode Diode
  • Focus: fixed (5.0m)

Electrical Parameters

  • Potential of Housing: VDD(+)
  • Operating Voltage: 4.5 V DC
  • Operating Current: 15 - 30, typ 20 mA

Mechanical Parameters

  • Size: Ø14x64 mm
  • Material: aluminium
  • Output Aperture: 3.5 mm
  • Housing Color: black
  • Weight: 21 g

Shop+Web

  • delivery content: Including 3x LR44
