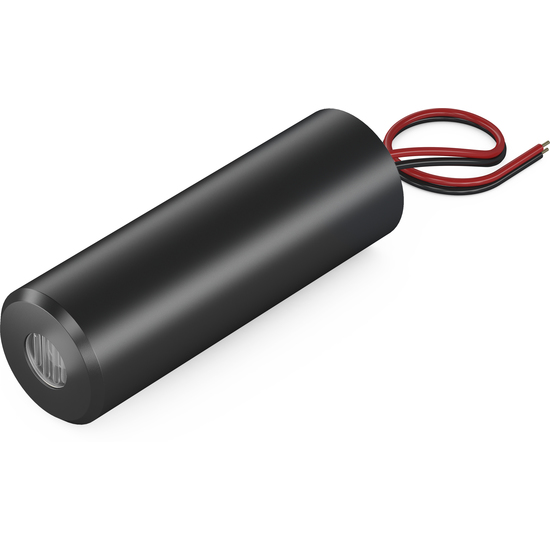

Cross laser, red, 635 nm, 5 °, 2 mW, 24 V DC, Ø16x64 mm, Laser Class 1, Focus fixed (1000mm), Cable…
€109.90*
Available, delivery time: 1-2 days
isolated Cross lasermodule, red, 5°, 635nm, 2mW, 24V DC, 16x64mm, class 1
- Operating Voltage 24 V DC
- Laser Class 1
- Fan angle 5 °
- Uniform line thickness
- Fixed focus
Accessesories
BALLHEAD-MOUNT-16(25x75)
Bracket for Lasermodule 16mm
Mount-16(30x65)
Picotronic Bracket Mount-16(30x65)
MULTI-MOUNT-16(45x75)-MAGNETIC
Magnetic Mount for Lasermodul 16mm
MULTI-MOUNT-16(45x75)
Mount for Lasermodul 16mm
PICO-LPG-635-660
certified Laser Safety Eyewear PICO-LPG-635-660 according to DIN EN 207, suitable for red wavelengths >630 - 700 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications, Research and Development
Main Data
- EAN: 4260129048130
- Warranty: 1 years
- customs tarif number: 90132000000
Technical Parameters
- Lifetime: > 5,000 h
- Operating Temperature: -20°C - 50 °C
- Storage Temperature: -40°C - 80 °C
Optical Parameters
- Beam Shape: Cross
- Optical Power: 2 mW
- Laser Class: 1
- Divergence: B - 0.3 mrad
- Fan Angle min: 5 °
- Fan Angle: 5 °
- Fan Angle max: 10 °
- Line Thickness: <1mm@1m
- Operating Distance: 1 m
- Optics: glass lens AR coated
- Laser technology: Single Mode Diode
- Protection Lens: no
- Focus: fixed (1000mm)
- Verticality: < ± 0.5 °
Electrical Parameters
- Potential of Housing: isolated
- Operating Voltage: 23.4 - 24.5, typ 24 V DC
- Operating Current: 10 - 40, typ 20 mA
- Cable color positive: red
- Cable color GND: black
Mechanical Parameters
- Size: Ø16x64 mm
- Material: aluminium
- Cable length: 100 mm
- Wire type: Belden, Typ 1007, 26AWG
- Output Aperture: 6.8 mm
- Housing Color: black
- Weight: 23.5 g
- Stripping of wire: 5 mm
