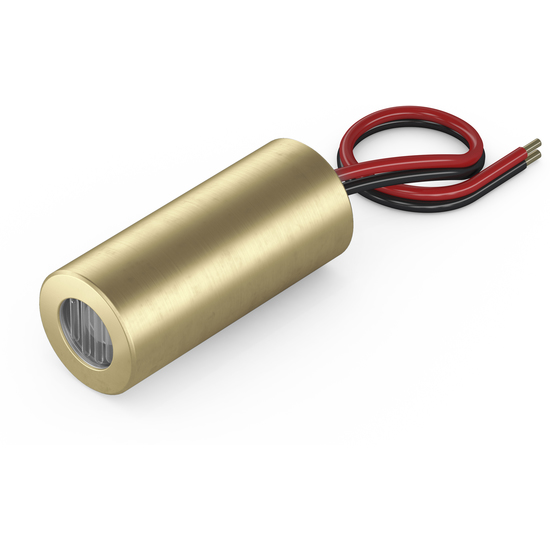

Line laser, red, 650 nm, 90 °, 1 mW, 3 V DC, Ø9x26 mm, Laser Class 1, Focus fixed (1000mm), Cable l…
€30.90*
Available, delivery time: 1-2 days
Product information "Line laser, red, 650 nm, 90 °, 1 mW, 3 V DC, Ø9x26 mm, Laser Class 1, Focus fixed (1000mm), Cable l…"
Line lasermodule, 90°, red, 650nm, 1mW, 3-5V DC, 9x26mm, class 1
- Operating Voltage 3-5V DC
- Laser Class 1
- Compact size
- Fixed focus
Accessesories
Magnetic Mount for Lasermodul 12mm
Ø9mm(45x75) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 9mm
Magnetic Mount for Lasermodul 9mm
09mm(48x86) MAGNETIC-MOUNT-PRO für Lasermodule mit Durchmesser 9mm
Bracket for Lasermodule 9mm
Ø9mm(25x67) Halterung-Ballhead für Lasermodule mit Durchmesser 9mm
Mount for Lasermodul 9mm
Ø9mm(45x75) MULTI-MOUNT für Lasermodule mit Durchmesser 9mm
Power supply 3V DC (1200mA)
Netzteil, Ausgang: 3V DC, offene Kabelenden, Betriebsspannung: 100-240V AC
Picotronic accessory PICO-LENS-CLEANING-PEN-MICRO
certified Laser Safety Eyewear PICO-LPG-635-660 according to DIN EN 207, suitable for red wavelengths >630 - 700 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications, Research and Development
Main Data
- EAN: 4055132000936
- Warranty: 1 years
- Customs tariff number: 90132000000
Technical Parameters
- Lifetime: > 10,000 h
- Operating Temperature: 15°C - 30 °C
- Storage Temperature: -20°C - 60 °C
Optical Parameters
- Beam Shape: Line
- Optical Power: 1 mW
- Laser Class: 1
- Divergence: H - 1.0 mrad
- Fan Angle: 90 °
- Line Thickness: <1.2mm@1m
- Operating Distance: 1 m
- Optics: acryl lense
- Laser technology: Single Mode Diode
- Focus: fixed (1000mm)
Electrical Parameters
- Operating Voltage: 2.5 - 5, typ 3 V DC
- Operating Current: 15 - 35, typ 30 mA
- Cable color positive: red
- Cable color ground: black
- Power Supply: Power Supply with stripped/tinned wires, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max.
Mechanical Parameters
- Size: Ø9x26 mm
- Material: Brass
- Cable length: 115 mm
- Wire type: 26AWG, 0,14mm²
- Housing Color: brass
- Weight: 6 g
Product Safety Information
Manufacturer
Picotronic GmbH
Rudolf-Diesel-Str.2a
56070 Koblenz
Deutschland
info@picotronic.de
Responsible Economic Operator
Picotronic GmbH
Rudolf-Diesel-Str.2a
56070 Koblenz
Deutschland
info@picotronic.de
Buy L650-1-3(9x26) on Amazon
| Opening angle: | 90 ° |
|---|
