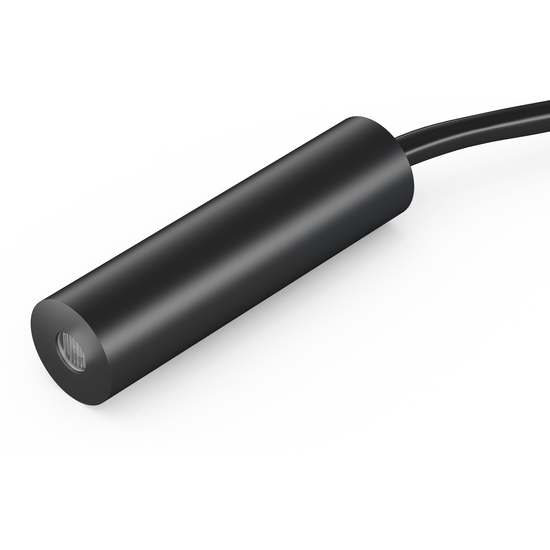

Dot laser, red, 650 nm, 0.4 mW, 24 V DC, Ø12x45 mm, Laser Class 1, Focus collimated, Cable length 10,000 mm
€101.90
Available, delivery time: 1-2 days
Product information "Dot laser, red, 650 nm, 0.4 mW, 24 V DC, Ø12x45 mm, Laser Class 1, Focus collimated, Cable length 10,000 mm"
isolated dot lasermodule, red, 650nm, 0.4mW, 24V DC, 12x45mm, class 1, cable length 10m
- Operating Voltage 24 V DC
- Laser Class 1
- Low power consumption
- Compact size
Main Data
- EAN: 4055132001360
- Warranty: 1 years
- Customs tariff number: 90132000000
Technical Parameters
- Lifetime: > 5,000 h
- Operating Temperature: -20°C - 50 °C
- Storage Temperature: -40°C - 80 °C
Optical Parameters
- Beam Shape: Dot
- Optical Power: 0.4 mW
- Laser Class: 1
- Divergence: C - 0.4 mrad
- Beam Diameter: 3 mm
- Size of Laserdot: <4mm@5m
- Operating Distance: 10 m
- Optics: glass lens AR coated
- Laser technology: Single Mode Diode
- Protection Lens: no
- Focus: collimated
Electrical Parameters
- Potential of Housing: isolated
- Operating Voltage: 23 - 24.3, typ 24 V DC
- Operating Current: 2 - 10, typ 5 mA
- Cable color positive: white
- Cable color ground: black
- Stripping of cable cover: 50 mm
Mechanical Parameters
- Size: Ø12x45 mm
- Material: aluminium
- Cable length: 10,000 mm
- Wire type: 24AWG, black, 3mm
- Output Aperture: 3.5 mm
- Housing Color: black
- Weight: 190 g
- Stripping of wire: 5 mm
