Line laser, red, 660 nm, 120 °, 60 mW, 24 V DC, Ø26x105 mm, Laser Class 3R, Focus fixed (3000mm), CON-M12

€539.90

Available, delivery time: 1-2 days

Product number: 70134704

Product information "Line laser, red, 660 nm, 120 °, 60 mW, 24 V DC, Ø26x105 mm, Laser Class 3R, Focus fixed (3000mm), CON-M12"

isolated Line lasermodule, red, 120°, 660nm, 60mW, 24V DC, 26x105mm, class 3R, with connector M12 without cable

Operating Voltage 24 V DC
Isolated housing
Laser Class 3R
Protection lens
M12 connector
The article is LH660-60-24(26x105)120-M12

Main Data

EAN: 4055132004385
Warranty: 1 years
Customs tariff number: 90132000000

Technical Parameters

Lifetime: > 10,000 h
Operating Temperature: -10°C - 40 °C
Storage Temperature: -40°C - 80 °C

Optical Parameters

Beam Shape: Line
Optical Power: 60 mW
Laser Class: 3R
Divergence: H - 1.0 mrad
Fan Angle: 120 °
Line Thickness: <1.5mm@3m
Operating Distance: 3 m
Optics: glass lens AR coated
Laser technology: Single Mode Diode
Protection Lens: yes
Focus: fixed (3000mm)

Electrical Parameters

Potential of Housing: isolated
Operating Voltage: 12 - 26.4, typ 24 V DC
Operating Current: 10 - 70, typ 30 mA
Connector: CON-M12

Mechanical Parameters

Size: Ø26x105 mm
Material: aluminium
Output Aperture: 5.5 mm
Housing Color: red
Weight: 130 g

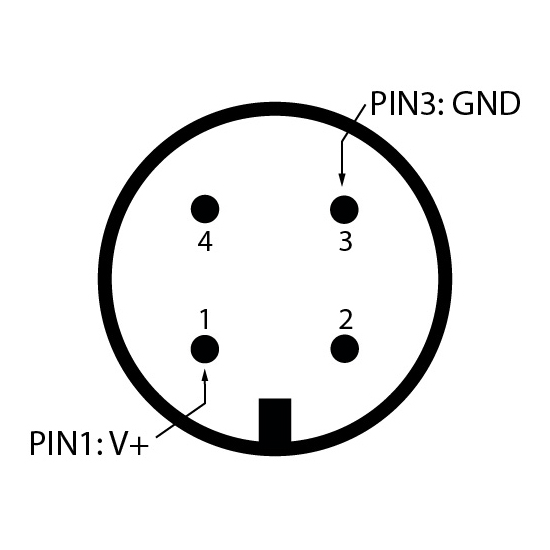

Connector Pin VDD: 1
Connector Pin GND: 3
Protection Class: IP 67

Holosun

BKA exception: no

Accessesories

certified laser safety glasses PICO-LPG-635-660 according to DIN EN 207, suitable wavelength range red >630 - 700 nm, comfortable fit over glasses or alone, side protection for wide field of view, for laser welding, laser cutting, laser marking, for cosmetic applications, research and development

Picotronic accessory PICO-LENS-CLEANING-PEN-MICRO
