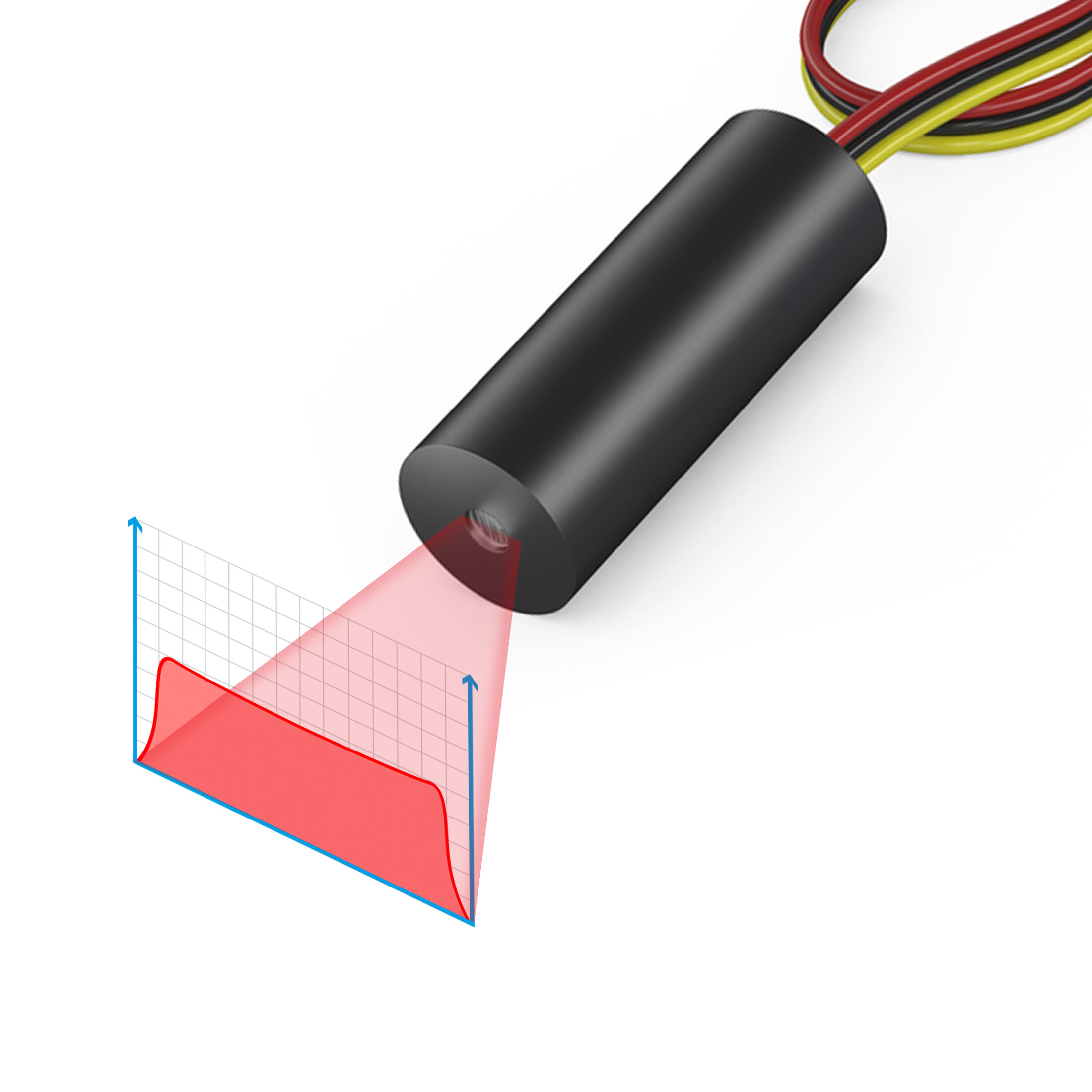

Line laser, red, 650 nm, 45 °, 3 mW, 24 V DC, Ø19x88 mm, Laser Class 1, Focus fixed (800mm), Cable…
€1,149.90*
Available in 60 days, delivery time 1-2 days
Product information "Line laser, red, 650 nm, 45 °, 3 mW, 24 V DC, Ø19x88 mm, Laser Class 1, Focus fixed (800mm), Cable…"
Line laser, 45°, red, 650nm, 3mW, 24V DC, laser class 1, fixed focus at 800mm, 5V CMOS Modulation, uniform line
- Operating Voltage 24 V DC
- Laser Class 1
- Fixed focus
- Uniform line
- CMOS operated
Accessesories
Magnetic Mount for Lasermodul 19mm
19mm(48x86) MAGNETIC-MOUNT-PRO für Lasermodule mit Durchmesser 19mm
Magnetic Mount for Lasermodul 19mm
Ø19mm(45x75) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 19mm
Mount for Lasermodul 9mm
Ø19mm(45x75) MULTI-MOUNT für Lasermodule mit Durchmesser 19mm
Picotronic accessory PICO-LENS-CLEANING-PEN-MICRO
certified Laser Safety Eyewear PICO-LPG-635-660 according to DIN EN 207, suitable for red wavelengths >630 - 700 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications, Research and Development
Magnetic Mount for Lasermodul 19mm
Ø19mm(45x75) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 19mm
Main Data
- EAN: 4055132018962
- Warranty: 1 years
- Customs tariff number: 90132000000
Technical Parameters
- Lifetime: > 10,000 h
- Operating Temperature: -20°C - 50 °C
- Storage Temperature: -40°C - 80 °C
Optical Parameters
- Beam Shape: Line
- Optical Power: 3 mW
- Laser Class: 1
- Divergence: C - 0.4 mrad
- Fan Angle: 45 °
- Line Thickness: <0.5mm@0.8m
- Operating Distance: 0.8 m
- Optics: Powell Lens
- Laser technology: Single Mode Diode
- Protection Lens: yes
- Focus: fixed (800mm)
Electrical Parameters
- Potential of Housing: isolated
- Max. Mod. Frequency: 1 kHz
- Operating Voltage: 23.5 - 25.5, typ 24 V DC
- Operating Current: 20 - 60, typ 60 mA
- Cable color positive: red
- Cable color GND: black
- Cable color modulation: yellow
- Stripping of cable cover: 50 mm
Mechanical Parameters
- Size: Ø19x88 mm
- Material: aluminium
- Cable length: 200 mm
- Wire type: 28AWG, Typ 1571
- Output Aperture: 4 mm
- Housing Color: black
- Weight: 70 g
- Stripping of wire: 5 mm
| Opening angle: | 45 ° |
|---|
