Line laser, green, 520 nm, 110 °, 10 mW, 5 V DC, Ø26x105 mm, Laser Class 2M, Focus fixed (3000mm),…
€449.90
Available in 60 days, delivery time 1-2 days
Product information "Line laser, green, 520 nm, 110 °, 10 mW, 5 V DC, Ø26x105 mm, Laser Class 2M, Focus fixed (3000mm),…"
Line lasermodule, green, 110°, 520nm, 10mW, 5V DC, 26x105mm, class 2M, focus at 3m
- Operating Voltage 5V DC
- Laser Class 2M
- Low cost
- Fan angle 110 °
- Compact size
Accessesories
5V Power supply 5V DC (1000mA)
Netzteil, Ausgang: 5V DC, offene Kabelenden, Betriebsspannung: 100-240V AC
Picotronic accessory PICO-LENS-CLEANING-PEN-MICRO
certified Laser Safety Eyewear PICO-LPG-635-660 according to DIN EN 207, suitable for red wavelengths >630 - 700 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications, Research and Development
Main Data
- EAN: 4055132018184
- Warranty: 1 years
- Customs tariff number: 90132000000
Technical Parameters
- Lifetime: > 20,000 h
- Operating Temperature: -10°C - 50 °C
- Storage Temperature: -40°C - 85 °C
Optical Parameters
- Beam Shape: Line
- Optical Power: 10 mW
- Laser Class: 2M
- Divergence: H - 1.0 mrad
- Fan Angle: 110 °
- Line Thickness: <1.5mm@3m
- Operating Distance: 3 m
- Optics: glass lens AR coated
- Laser technology: Single Mode Diode
- Focus: fixed (3000mm)
Electrical Parameters
- Potential of Housing: isolated
- Operating Voltage: 4.5 - 5.5, typ 5 V DC
- Operating Current: 50 - 225, typ 125 mA
- Cable color positive: red
- Cable color ground: black
- Power Supply: Power Supply with stripped/tinned wires, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max.
Mechanical Parameters

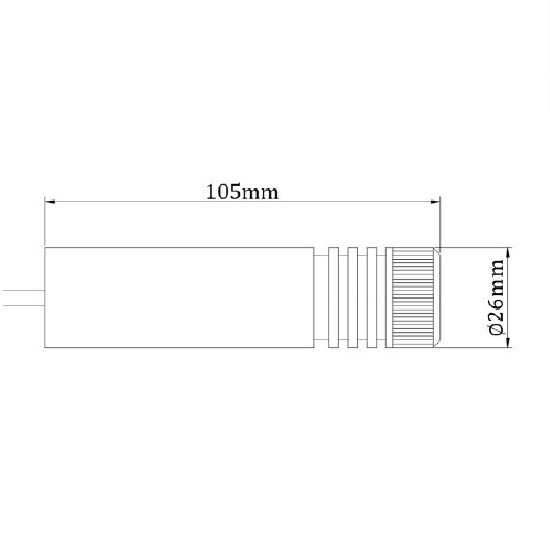

- Size: Ø26x105 mm
- Material: aluminium
- Cable length: 1,000 mm
- Wire type: 24AWG, black, 3mm
- Output Aperture: 6 mm
- Housing Color: black
- Weight: 63 g
- Protection Class: IP 54
Holosun
- BKA exception: no
Product Safety Information
Manufacturer
Picotronic GmbH
Rudolf-Diesel-Str.2a
56070 Koblenz
Deutschland
info@picotronic.de
Responsible Economic Operator
Picotronic GmbH
Rudolf-Diesel-Str.2a
56070 Koblenz
Deutschland
info@picotronic.de
| Opening angle: | 110 ° |
|---|
