Magnetic Mount for 20mm Laser Module
€29.89*
Available, delivery time: 1-2 days
Product number:
70160253
Product information "Magnetic Mount for 20mm Laser Module"

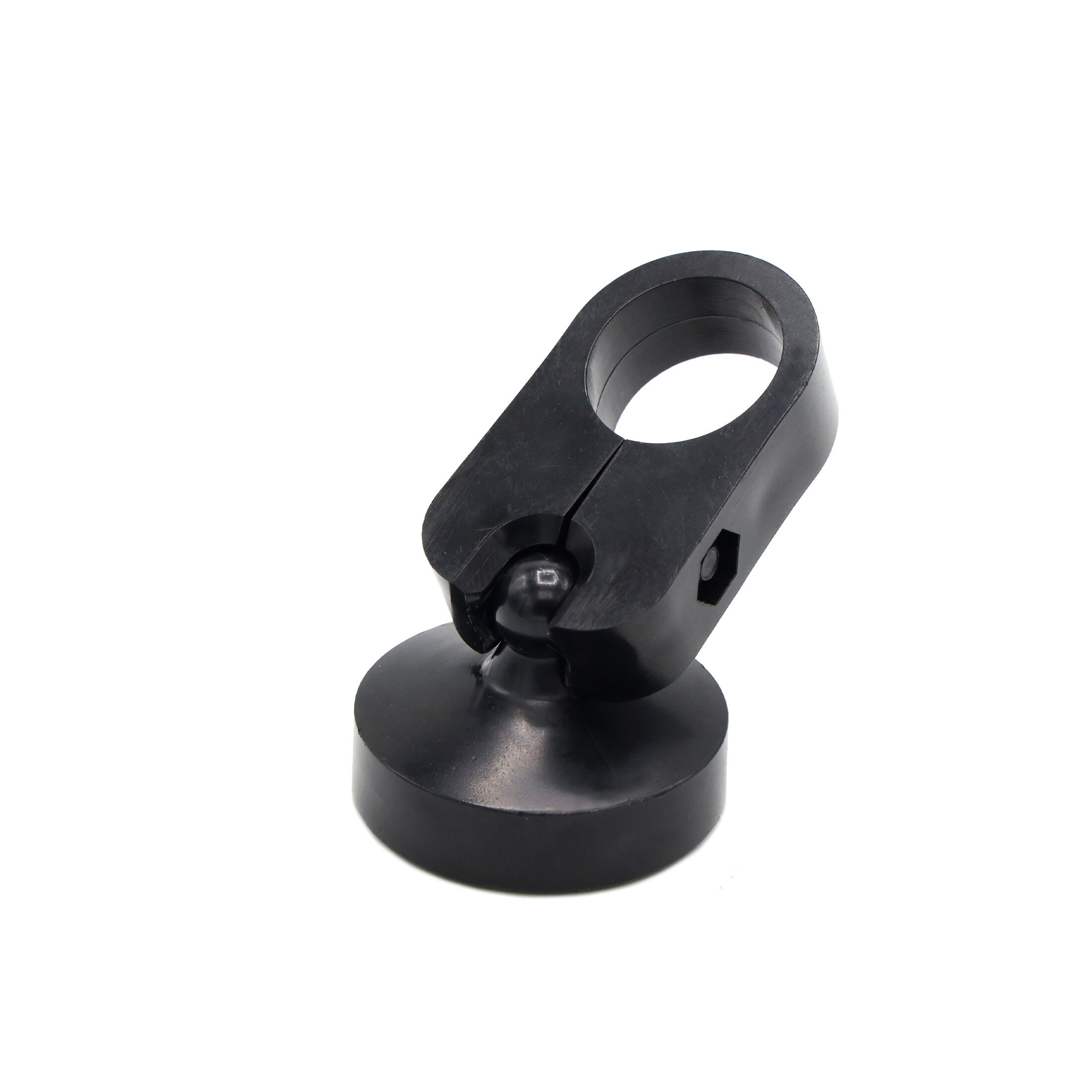

Ø20mm (36x62) magnetic holder for laser module 20mm, diameter 36mm, height 62mm, plastic

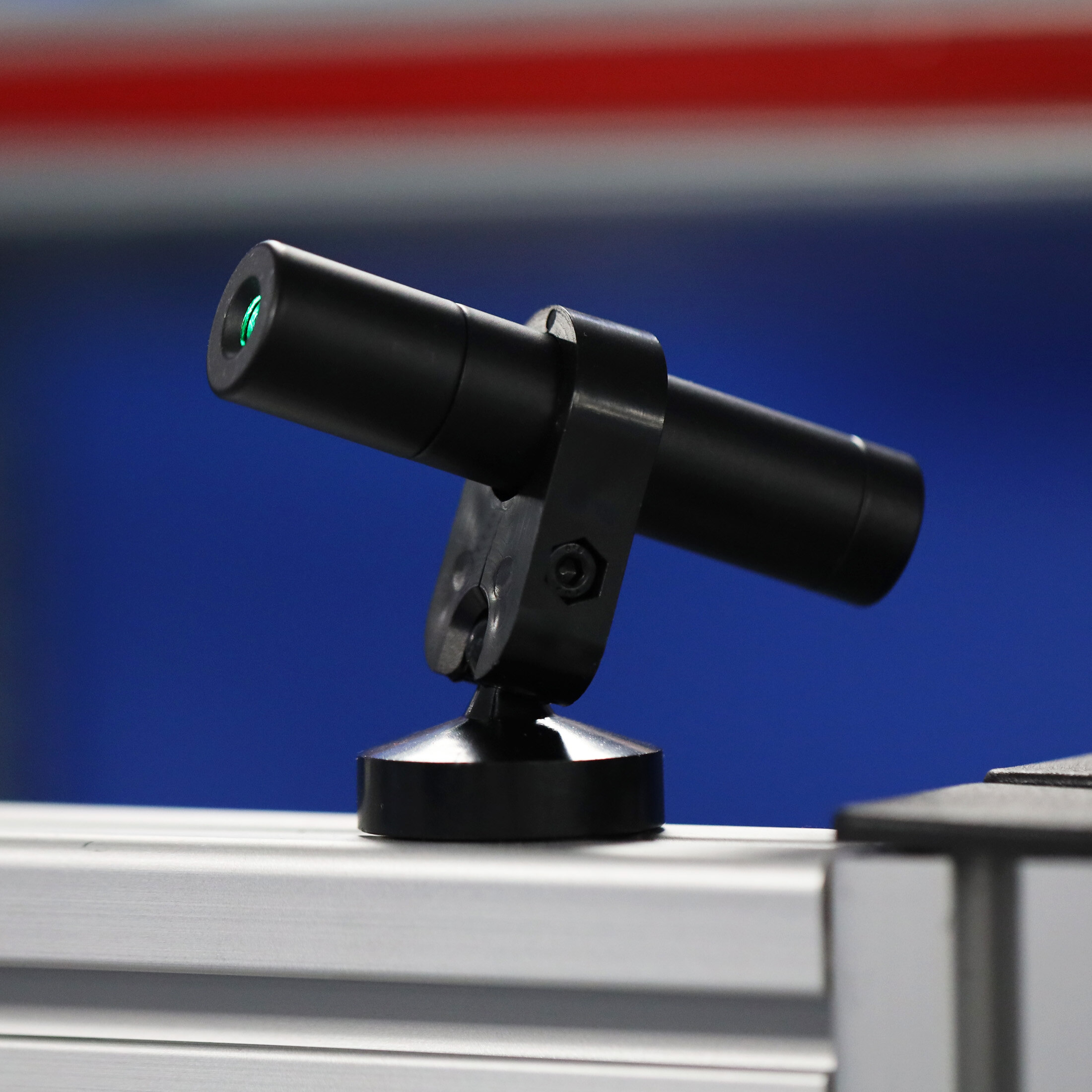

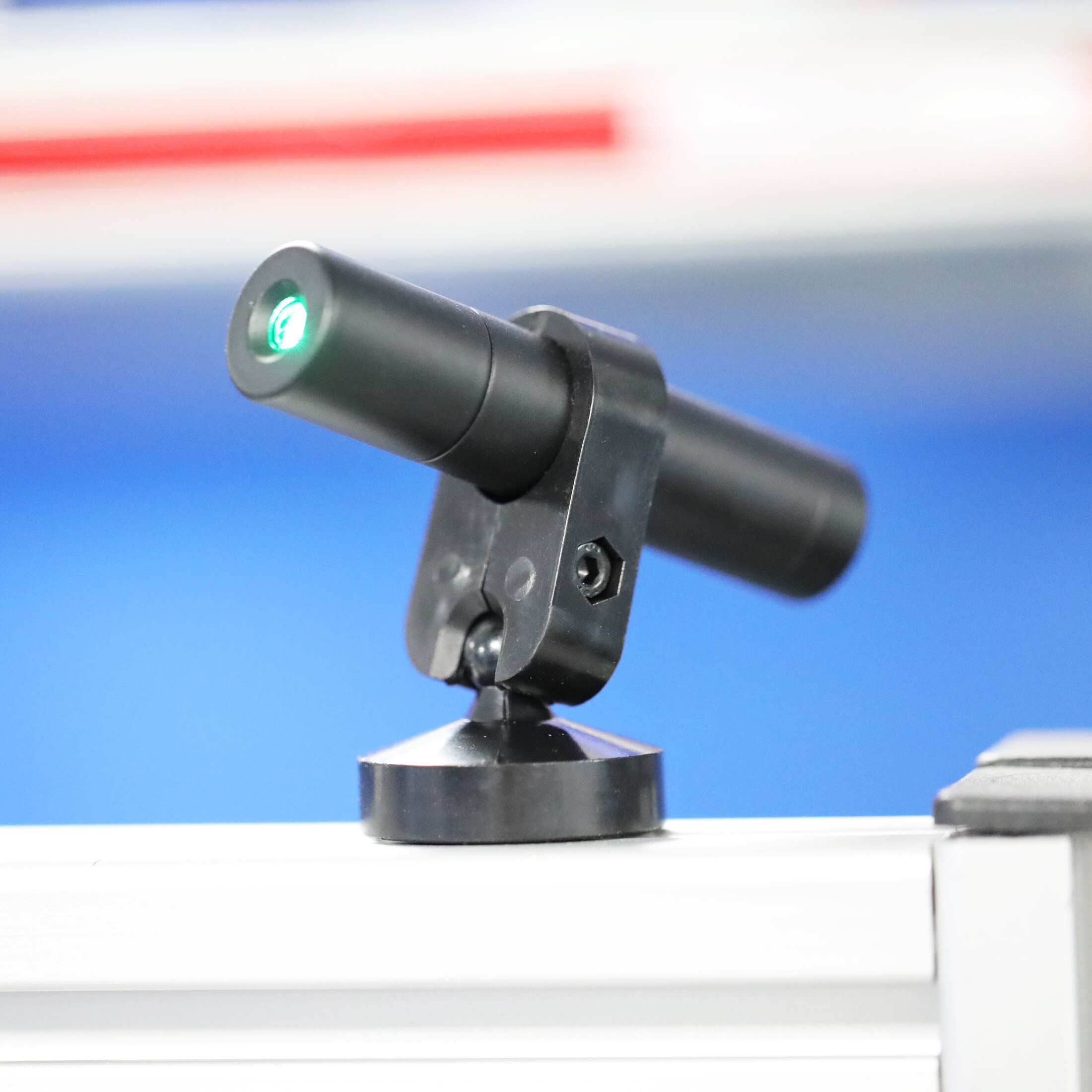

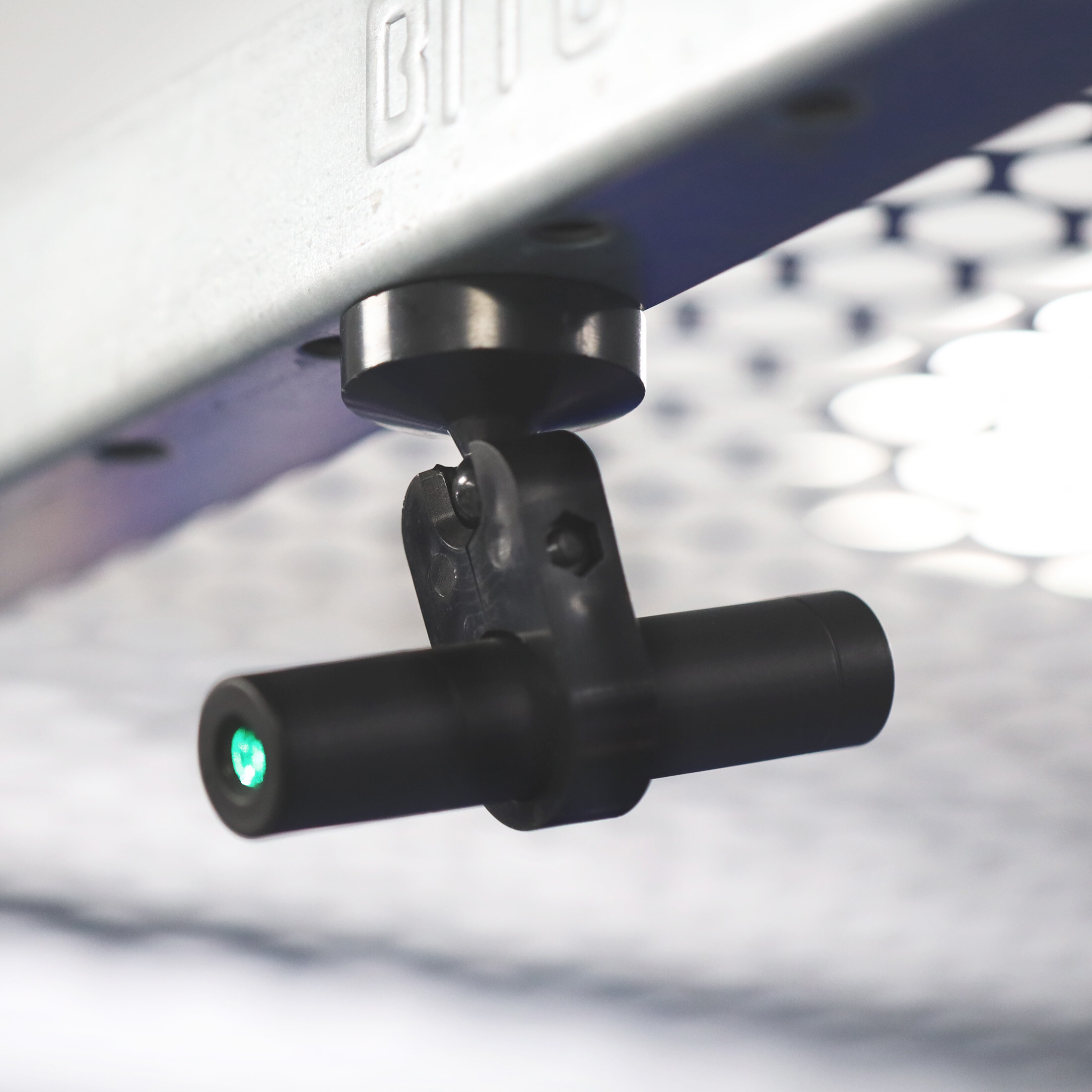

Inexpensive mount in a simple design for laser modules with a diameter of 20mm. The mount is adjustable in all degrees of freedom. The magnetic base allows for quick and uncomplicated secure attachment. The total height of the mount is 62 mm. A holding force of 6.5 kg is achieved.
- Halterung für Lasermodule mit Durchmesser 20mm.

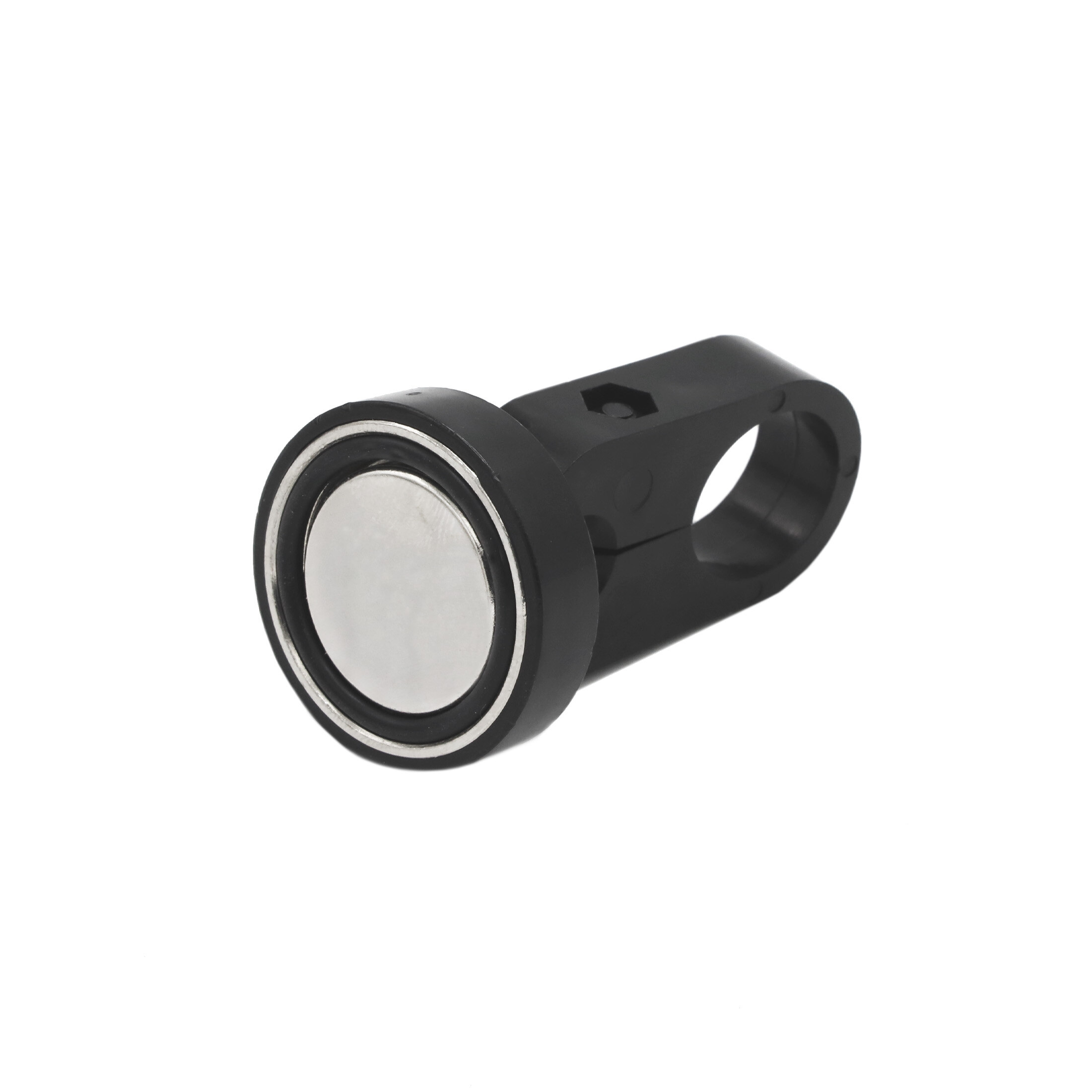

- Befestigung: Magnetischer Standfuß mit einer Haltekraft von 6,5 kg.
- Das Lasermodul wird mit einer Klemmschraube in der Halterung fixiert.
- Material: Kunststoff; Farbe: Schwarz
- Preiswerte Halterung für viele Anwendungen.
Accessesories
Picotronic accessory PICO-LENS-CLEANING-PEN-MICRO
Main Data
- EAN: 4055132021825
- Customs tariff number: 90139080000
Technical Parameters
- Operating Temperature: -20°C - 50 °C
- Storage Temperature: -50°C - 70 °C
Mechanical Parameters
- Material: Plastic
- Housing Color: black
- Weight: 20 g

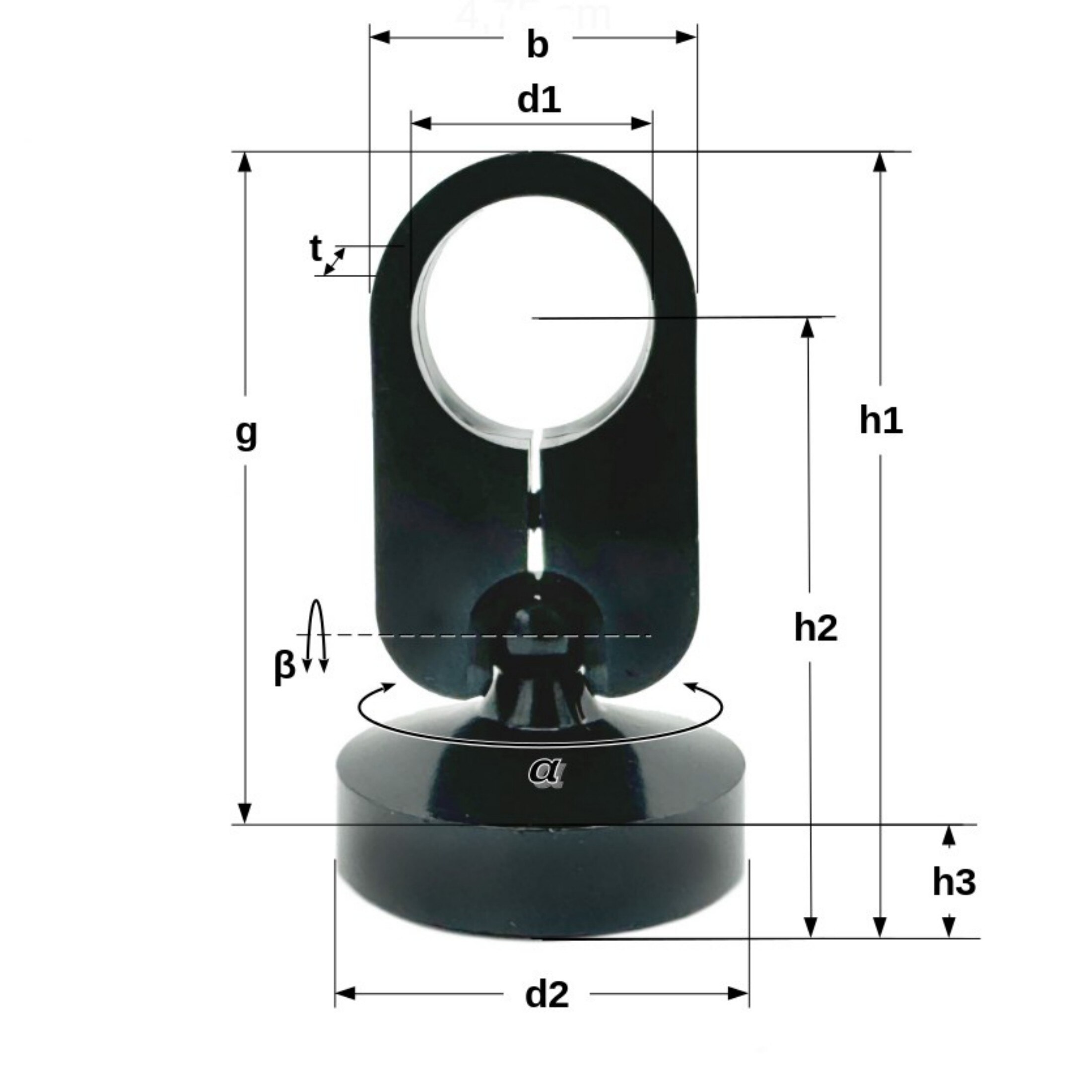

Mount Parameters
- Total Height (h1): 62 mm
- Height to Laseraxis (h2): 47 mm
- Height of Base (h3): 17 mm
- Mount Diameter (d1): Ø 20 mm
- Diameter of Base (d2): Ø 36 mm
- Width of Mount (b): 26 mm
- Height of Mount (g): 45 mm
- Depth of Mount (t): 12 mm
- Angle of Rotation Alpha (α): 360 °
- Angle of Rotation Beta (β): ± 180 °
