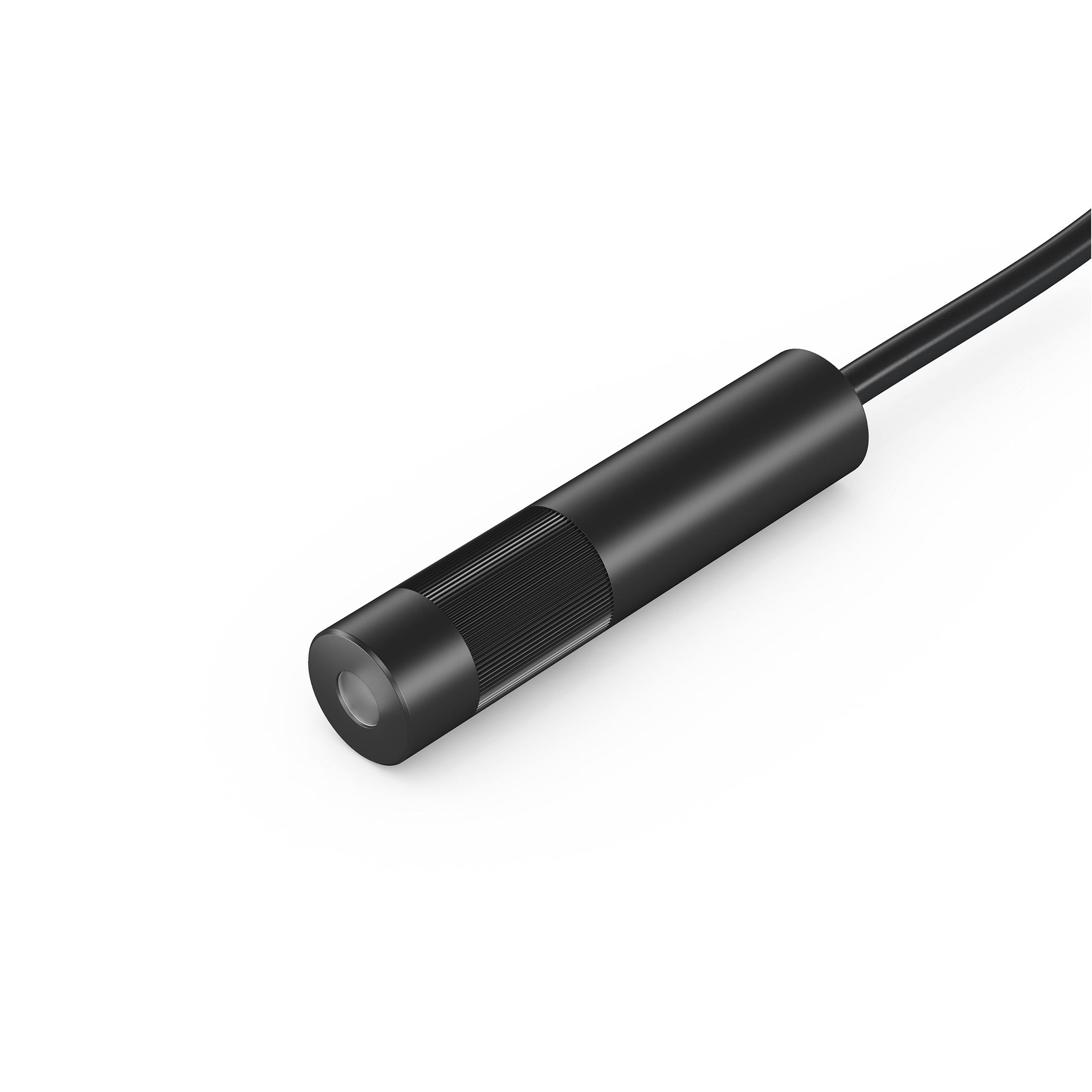

Doe laser, red, 635 nm, 60 °, 10 mW, 24 V DC, Ø16x62 mm, Laser Class 2M, Focus adjustable, Cable le…
€329.90*
Available, delivery time: 1-2 days
Product information "Doe laser, red, 635 nm, 60 °, 10 mW, 24 V DC, Ø16x62 mm, Laser Class 2M, Focus adjustable, Cable le…"
Adjustable isolated DOE laser module, red, 635nm, 10mW, 24V DC, 16x62mm, Class 2M, includes DOE 280, Cross 60° @ @635nm
- Operating Voltage 24 V DC
- Adjustable focus
- DOE optic can be changed
- Compact size
- Glas lenses anti reflex coated
Accessesories
Magnetic Mount for Lasermodul 16mm
16mm(48x86) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 16mm
Bracket for Lasermodule 16mm
Ø16mm(25x75) Halterung-Ballhead für Lasermodule mit Durchmesser 16mm
Picotronic Bracket Mount-16(30x65)
Ø16mm(30x65) MOUNT für Lasermodule mit Durchmesser 16mm
Magnetic Mount for Lasermodul 16mm
Ø16mm(45x75) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 16mm
Mount for Lasermodul 16mm
Ø16mm(45x75) MULTI-MOUNT für Lasermodule mit Durchmesser 16mm
Picotronic accessory PICO-LENS-CLEANING-PEN-MICRO
certified Laser Safety Eyewear PICO-LPG-635-660 according to DIN EN 207, suitable for red wavelengths >630 - 700 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications, Research and Development
Main Data
- Warranty: 1 years
- Customs tariff number: 90132000000
Technical Parameters
- Lifetime: > 10,000 h
- Operating Temperature: -20°C - 50 °C
- Storage Temperature: -40°C - 80 °C
Optical Parameters
- Beam Shape: DOE
- Optical Power: 10 mW
- Laser Class: 2M
- Divergence: D - 0.5 mrad
- Fan Angle: 60 °
- Operating Distance: 2 m
- Optics: glass lens AR coated
- Laser technology: Single Mode Diode
- Focus: adjustable
Electrical Parameters
- Potential of Housing: isolated
- Operating Voltage: 23.7 - 24.3, typ 24 V DC
- Operating Current: 20 - 50, typ 30 mA
- Cable color positive: white
- Cable color GND: black
- Stripping of cable cover: 50 mm
Mechanical Parameters
- Size: Ø16x62 mm
- Material: aluminium
- Cable length: 300 mm
- Wire type: 18AWG, black, 3,6mm
- Output Aperture: 5 mm
- Housing Color: black
- Weight: 25 g
- Stripping of wire: 5 mm
DOE
- Alpha: 60 °
- Diameter (without holder): 8 mm
- Width (without Holder): 1.15 mm
- Material: PC
