Doe laser, red, 635 nm, 10 mW, 5 V DC, Ø16x62 mm, Laser Class 2, Focus adjustable, Cable length 300…
€289.90*
Available, delivery time: 1-2 days
Product information "Doe laser, red, 635 nm, 10 mW, 5 V DC, Ø16x62 mm, Laser Class 2, Focus adjustable, Cable length 300…"
Adjustable isolated DOE laser module, red, 635nm, 10mW, 5V DC, 16x62mm, Class 2, including DOE-DE-R396
- Operating Voltage 5 V DC
- Adjustable focus
- DOE optic can be changed
- Compact size
- Glas lenses anti reflex coated
Accessesories
Bracket for Lasermodule 16mm
Ø16mm(25x75) Halterung-Ballhead für Lasermodule mit Durchmesser 16mm
Magnetic Mount for Lasermodul 16mm
16mm(48x86) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 16mm
Picotronic Bracket Mount-16(30x65)
Ø16mm(30x65) MOUNT für Lasermodule mit Durchmesser 16mm
Mount for Lasermodul 16mm
Ø16mm(45x75) MULTI-MOUNT für Lasermodule mit Durchmesser 16mm
Magnetic Mount for Lasermodul 16mm
Ø16mm(45x75) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 16mm
5V Power supply 5V DC (1000mA)
Netzteil, Ausgang: 5V DC, offene Kabelenden, Betriebsspannung: 100-240V AC
Picotronic accessory PICO-LENS-CLEANING-PEN-MICRO
Bracket for Lasermodule 12.5mm to 16.5mm
Ø12,5-16,5mm(67x69) LASER-MOUNT für Lasermodule mit Durchmesser 12.5mm bis 16.5mm
certified Laser Safety Eyewear PICO-LPG-635-660 according to DIN EN 207, suitable for red wavelengths >630 - 700 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications, Research and Development
Main Data
- EAN: 4055132034498
- Warranty: 1 years
- Customs tariff number: 90132000000
Technical Parameters
- Lifetime: > 10,000 h
- Operating Temperature: -20°C - 50 °C
- Storage Temperature: -40°C - 80 °C
Optical Parameters
- Beam Shape: DOE
- Optical Power: 10 mW
- Laser Class: 2
- Divergence: D - 0.5 mrad
- Operating Distance: 1 m
- Optics: glass lens AR coated
- Focus: adjustable
Electrical Parameters
- Potential of Housing: isolated
- Operating Voltage: 4.5 - 5.5, typ 5 V DC
- Operating Current: 10 - 80, typ 45 mA
- Cable color positive: white
- Cable color ground: black
- Power Supply: Power Supply with stripped/tinned wires, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max.
- Stripping of cable cover: 50 mm
Mechanical Parameters
- Size: Ø16x62 mm
- Material: aluminium
- Cable length: 300 mm
- Wire type: 18AWG, black, 3,6mm
- Output Aperture: 5 mm
- Housing Color: black
- Weight: 25 g
- Stripping of wire: 5 mm

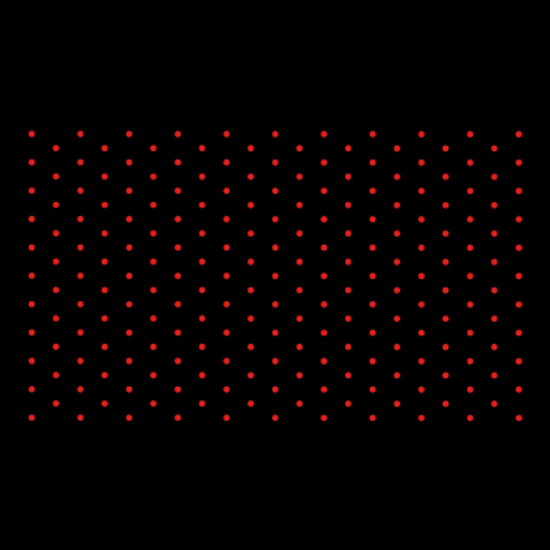

DOE
- Alpha: 37.5 °
- Beta: 32.7 °
- Gamma: 1.9 °
- Delta: 19.2 °
- Diameter (without holder): 8 mm
- Width (without Holder): 1.2 mm
- Material: PC
