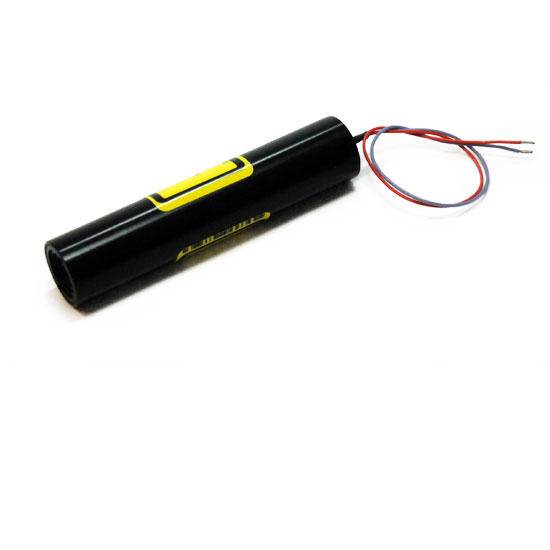

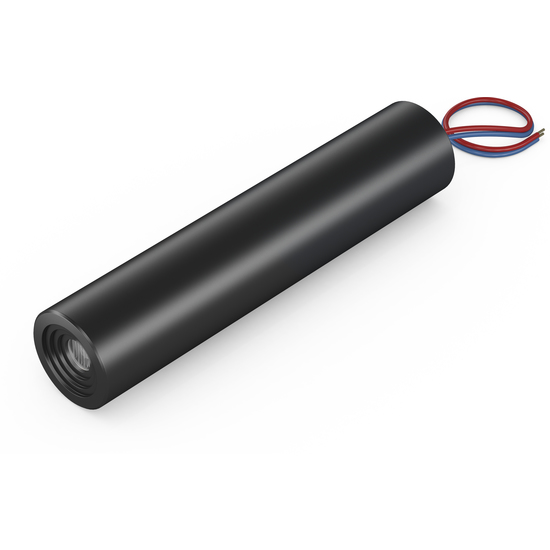

Line laser, green, 532 nm, 90 °, 5 mW, 3 V DC, Ø15x70 mm, Laser Class 1, Focus fixed (3000mm), Cabl…
€189.90*
Available, delivery time: 1-2 days
Product information "Line laser, green, 532 nm, 90 °, 5 mW, 3 V DC, Ø15x70 mm, Laser Class 1, Focus fixed (3000mm), Cabl…"
isolated Line lasermodule, green, 90°, 532nm, 5mW, 3V DC, 15x70mm, class 1
- Operating Voltage 3 V DC
- Laser Class 1
- Fan angle 90 °
- Fixed focus
- Image processing
Accessesories
Magnetic Mount for Lasermodul 15mm
15mm(48x86) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 15mm
Magnetic Mount for Lasermodul 15mm
Ø15mm(45x75) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 15mm
Mount for Lasermodul 15mm
Ø15mm(45x75) MULTI-MOUNT für Lasermodule mit Durchmesser 15mm
Power supply 3V DC (1200mA)
Netzteil, Ausgang: 3V DC, offene Kabelenden, Betriebsspannung: 100-240V AC
Picotronic accessory PICO-LENS-CLEANING-PEN-MICRO
certified Laser Safety Eyewear PICO-LPG-405-532 according to DIN EN 207, suitable for blue and green wavelengths >400 - 532 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications
Main Data
- EAN: 4260129046075
- Warranty: 1 years
- Customs tariff number: 90132000000
Technical Parameters
- Lifetime: > 5,000 h
- Operating Temperature: 15°C - 30 °C
- Storage Temperature: -40°C - 80 °C
Optical Parameters
- Beam Shape: Line
- Optical Power: 5 mW
- Laser Class: 1
- Divergence: D - 0.5 mrad
- Fan Angle: 90 °
- Line Thickness: <1.5mm@3m
- Operating Distance: 5 m
- Optics: glass lens AR coated
- Beam Mode: TEM00
- Laser technology: Solid State (YVO4+KTP)
- Stability: +/- 10% @ 15-30°C
- Focus: fixed (3000mm)
- Warm up time: < 15 min
Electrical Parameters
- Potential of Housing: isolated
- Operating Voltage: 2.7 - 3.3, typ 3 V DC
- Operating Current: 100 - 350, typ 200 mA
- Cable color positive: red
- Cable color GND: blue
- Power Supply: Power Supply with stripped/tinned wires, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max.
Mechanical Parameters

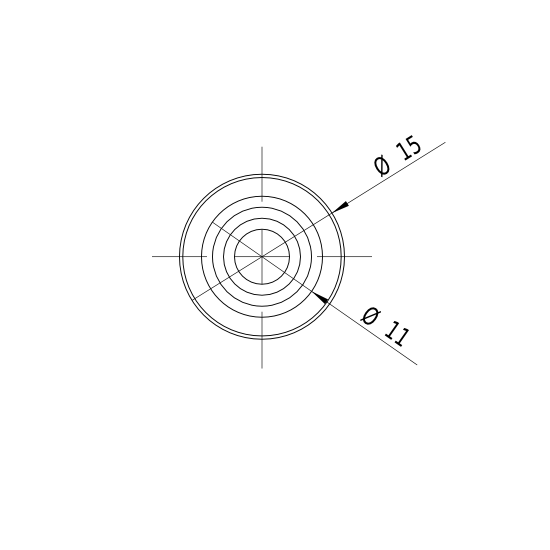

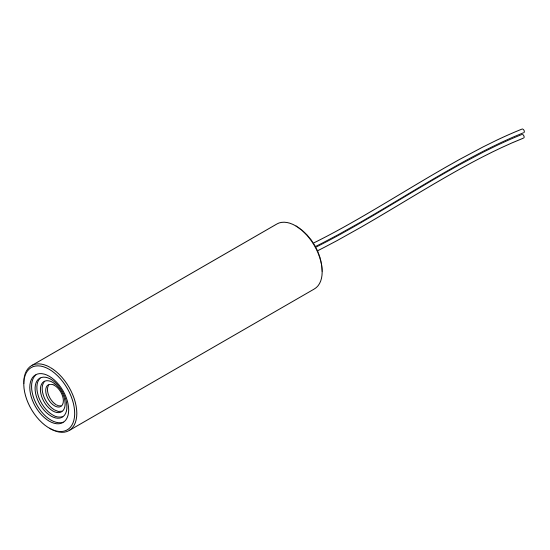

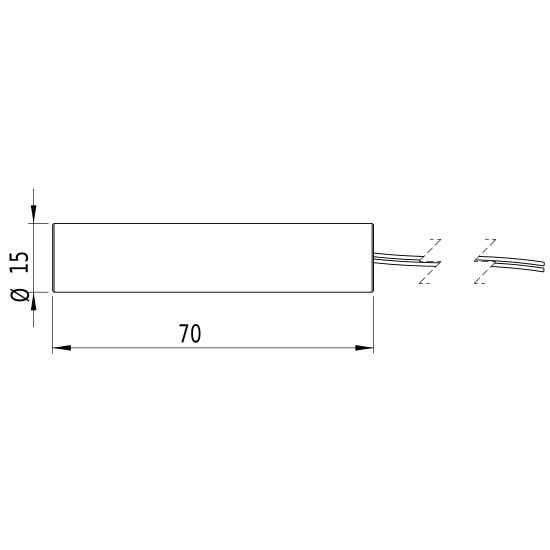

- Size: Ø15x70 mm
- Material: aluminium
- Cable length: 100 mm
- Wire type: 26AWG, 0,14mm²
- Output Aperture: 5 mm
- Housing Color: black
- Weight: 33.5 g
- Stripping of wire: 5 mm
Buy LD532-5-3(15x70) on Amazon
| Opening angle: | 90 ° |
|---|
