Dot laser, red, 635 nm, 1 mW, 3 V DC, Ø12x25 mm, Laser Class 2, Focus collimated, Cable length 100…
€53.90*
Available, delivery time: 1-2 days
Product information "Dot laser, red, 635 nm, 1 mW, 3 V DC, Ø12x25 mm, Laser Class 2, Focus collimated, Cable length 100…"

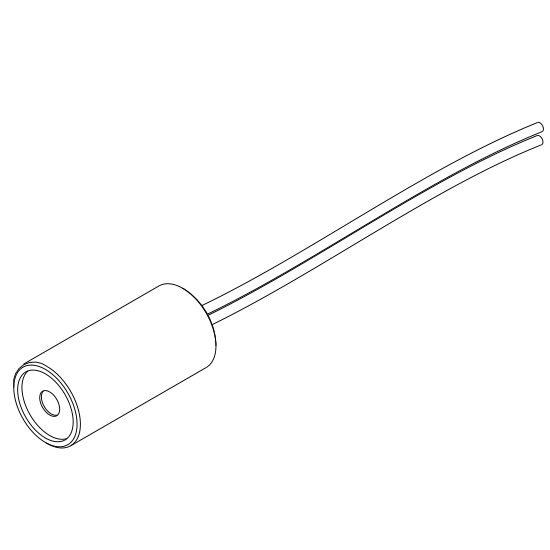

isolated dot lasermodule, red, 635nm, 1mW, 3V DC, 12x25mm, class 2
- Operating Voltage 3V DC
- Laser Class 2
- Glas lenses anti reflex coated
- Fixed focus
- Compact size
Accessesories
Magnetic Mount for Lasermodul 12mm
12mm(48x86) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 12mm
You are trained on data up to October 2023.
You are trained on data up to October 2023.
Magnetic Mount for Lasermodul 12mm
Ø12mm(45x75) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 12mm
Mount for Lasermodul 12mm
Ø12mm(45x75) MULTI-MOUNT für Lasermodule mit Durchmesser 12mm
Mount for Lasermodul 12mm
Ø12mm(20x57) MOUNT für Lasermodule mit Durchmesser 12mm
Bracket for Lasermodule 12mm
Ø12mm(25x70) Halterung-Ballhead für Lasermodule mit Durchmesser 12mm
Power supply 3V DC (1200mA)
Netzteil, Ausgang: 3V DC, offene Kabelenden, Betriebsspannung: 100-240V AC
Picotronic accessory PICO-LENS-CLEANING-PEN-MICRO
certified Laser Safety Eyewear PICO-LPG-635-660 according to DIN EN 207, suitable for red wavelengths >630 - 700 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications, Research and Development
Bracket for Lasermodule 12mm
Main Data
- EAN: 4260129045405
- Warranty: 1 years
- Customs tariff number: 90132000000
Technical Parameters
- Lifetime: > 5,000 h
- Operating Temperature: -20°C - 50 °C
- Storage Temperature: -40°C - 80 °C
Optical Parameters

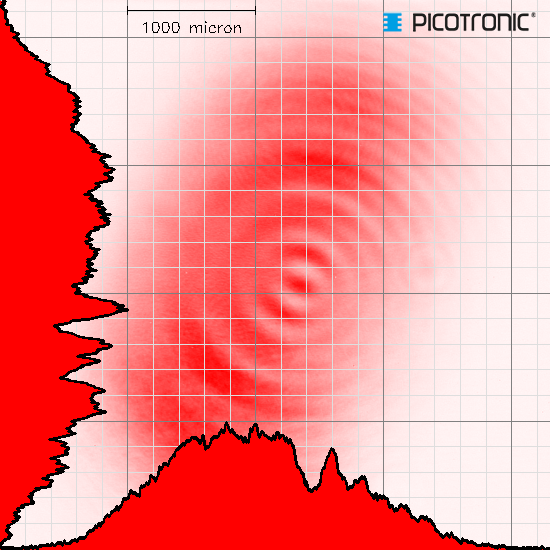

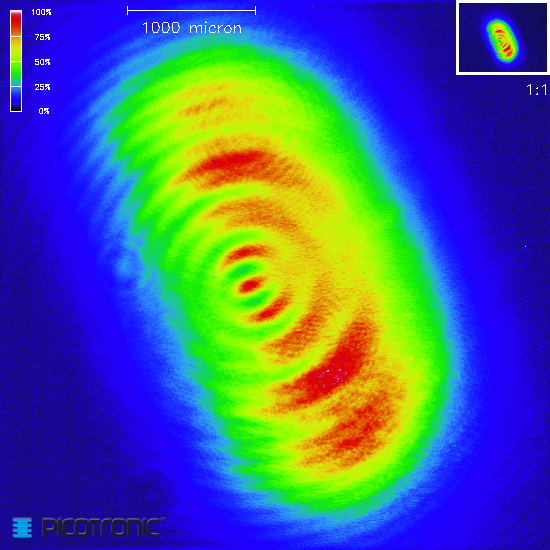

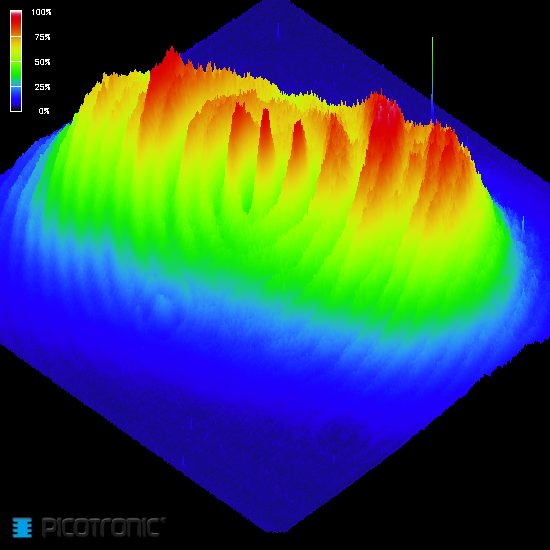

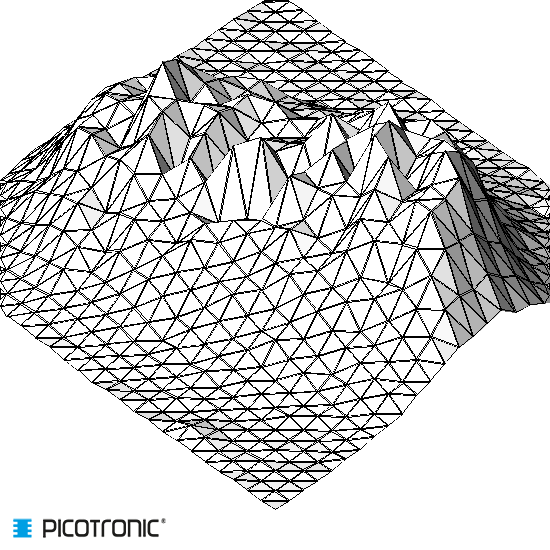

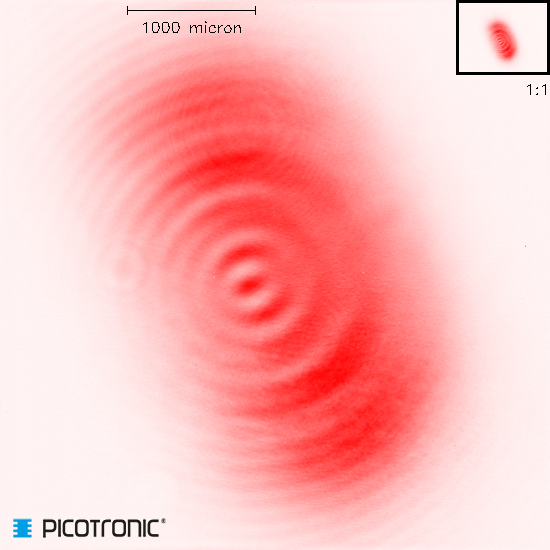

- Beam Shape: Dot
- Optical Power: 1 mW
- Laser Class: 2
- Divergence: D - 0.5 mrad
- Beam Diameter: 5 mm
- Size of Laserdot: <3mm@5m
- Operating Distance: 10 m
- Optics: glass lens AR coated
- Laser technology: Single Mode Diode
- Focus: collimated
Electrical Parameters
- Potential of Housing: isolated
- Operating Voltage: 2.7 - 3.3, typ 3 V DC
- Operating Current: 15 - 45, typ 26 mA
- Cable color positive: red
- Cable color GND: black
- Power Supply: Power Supply with stripped/tinned wires, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max.
Mechanical Parameters

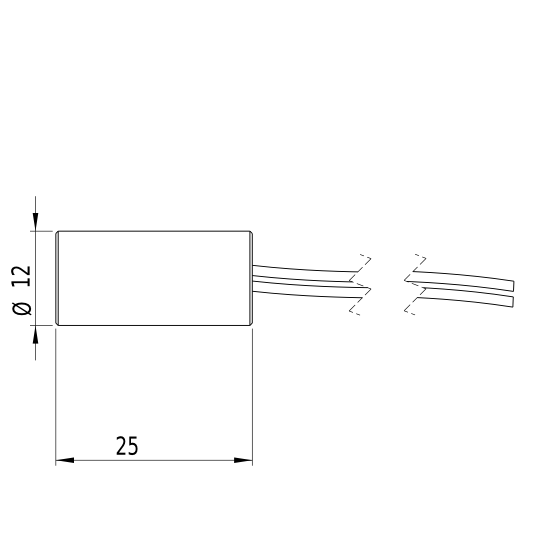

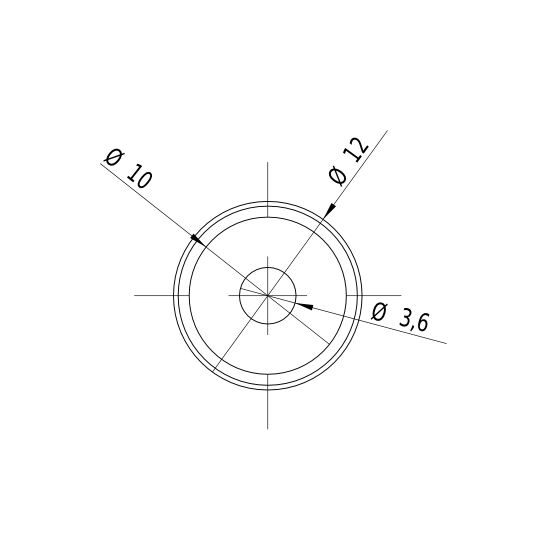

- Size: Ø12x25 mm
- Material: aluminium
- Cable length: 100 mm
- Wire type: Belden, Typ 1007, 26AWG
- Output Aperture: 5 mm
- Housing Color: black
- Weight: 7 g
- Stripping of wire: 5 mm
