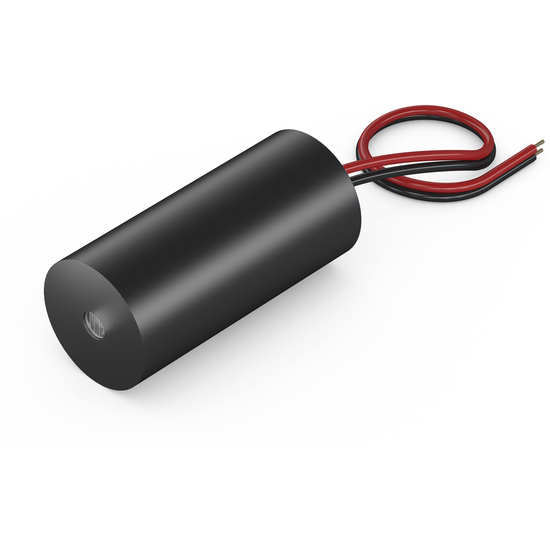

Dot laser, infrared, 830 nm, 0.4 mW, 5 V DC, Ø14x30 mm, Laser Class 1, Focus collimated, Cable length 100 mm
€125.90
Available, delivery time: 1-2 days
Product information "Dot laser, infrared, 830 nm, 0.4 mW, 5 V DC, Ø14x30 mm, Laser Class 1, Focus collimated, Cable length 100 mm"
internal modulated isolated Dot lasermodule, infrared, 830nm, 0.4mW, 5V DC, 14x30mm, class 1, 10kHz blinking
- Fixed focus
- Low power consumption
- Compact size
- Modulated 10kHz
- Glas lenses anti reflex coated
- Blinking with 10kHz
Main Data
- EAN: 4260129044316
- Warranty: 1 years
- Customs tariff number: 90132000000
Technical Parameters
- Lifetime: > 5,000 h
- Operating Temperature: -20°C - 50 °C
- Storage Temperature: -40°C - 80 °C

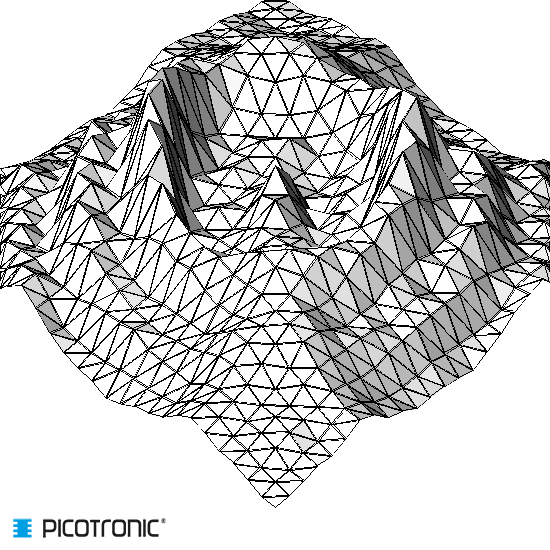

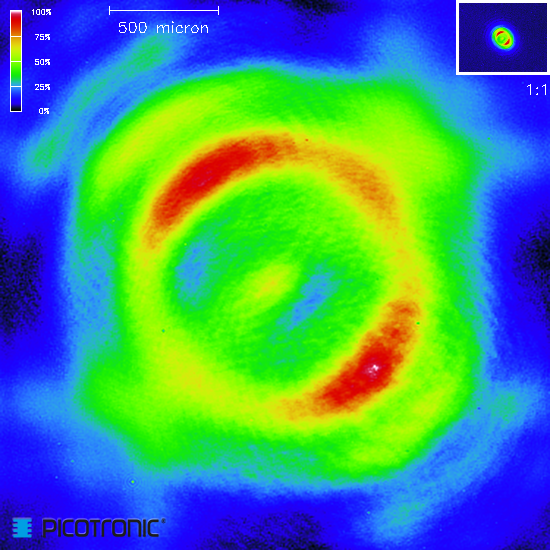

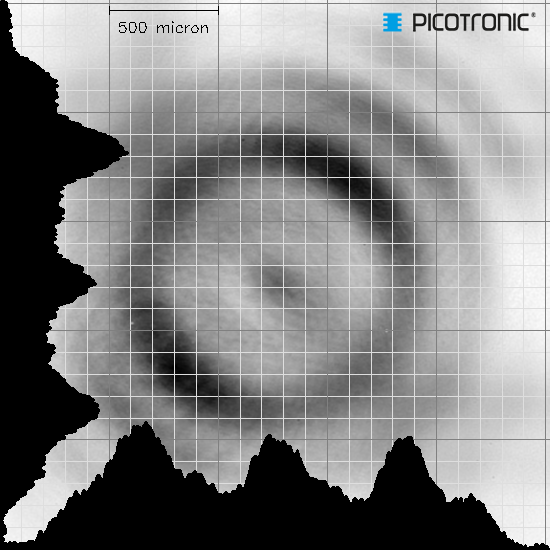

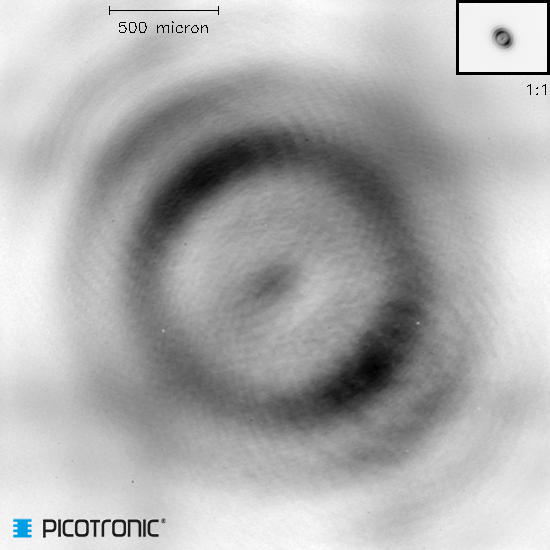

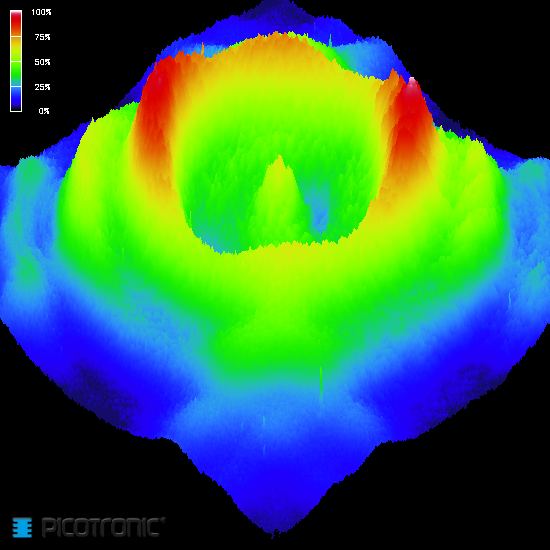

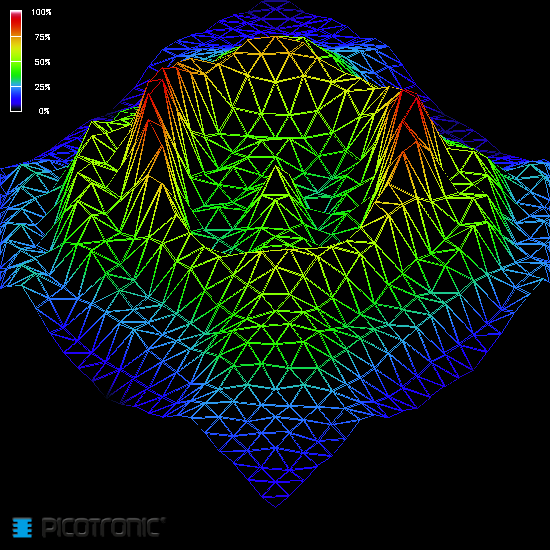

Optical Parameters
- Beam Shape: Dot
- Optical Power: 0.4 mW
- Laser Class: 1
- Divergence: D - 0.5 mrad
- Beam Diameter: 3 mm
- Operating Distance: 10 m
- Optics: glass lens AR coated
- Laser technology: Single Mode Diode
- Focus: collimated
Electrical Parameters
- Potential of Housing: isolated
- Operating Voltage: 4.5 - 5.5, typ 5 V DC
- Operating Current: 7 - 30, typ 15 mA
- Cable color positive: red
- Cable color ground: black
- Power Supply: Power Supply with stripped/tinned wires, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max.
Mechanical Parameters

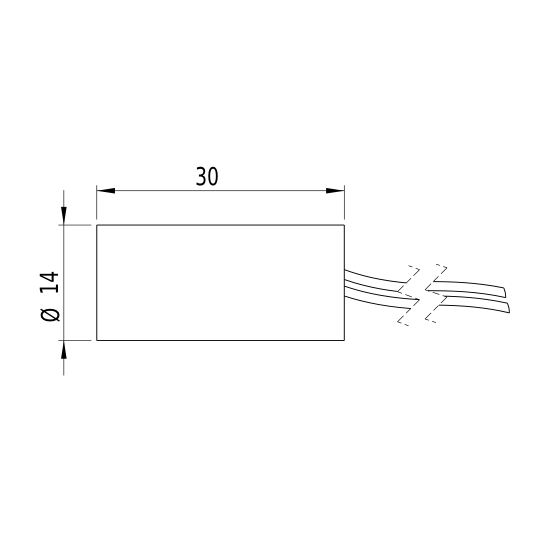

- Size: Ø14x30 mm
- Material: aluminium
- Cable length: 100 mm
- Wire type: Belden, Typ 1007, 26AWG

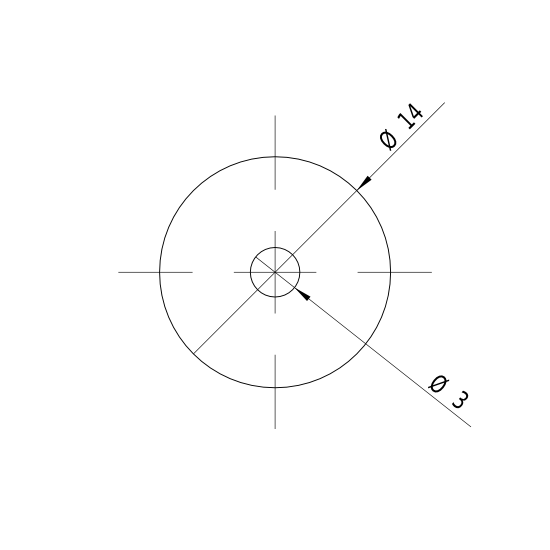

- Output Aperture: 3 mm
- Housing Color: black
- Weight: 18 g
- Stripping of wire: 5 mm
Holosun
- BKA exception: no
