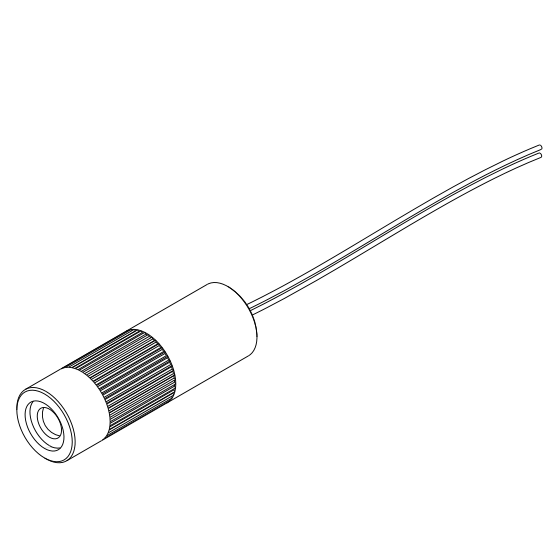

Doe laser, infrared, 850 nm, 5 mW, 3 V DC, Ø12x38 mm, Laser Class 1, Focus adjustable, Cable length…

€249.90*

Prices incl. VAT. No shipping costs for orders over 100 Euro in the EU

Available, delivery time: 1-2 days

Product number: 70128406

Product information "Doe laser, infrared, 850 nm, 5 mW, 3 V DC, Ø12x38 mm, Laser Class 1, Focus adjustable, Cable length…"

focusable isolated DOE lasermodule, infrared, 850nm, 5mW, 3V DC, 12x38mm, class 1, prepared for mounting a standard DOE 8x1,2mm incl. DOE-R332

Adjustable focus
DOE optic can be changed
Compact size
Glas lenses anti reflex coated
Operating Voltage 3 V DC

Accessesories

Magnetic Mount for Lasermodul 12mm
12mm(48x86) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 12mm Magnetic Mount for 12mm Laser Module
Ø12mm (36x62) Magnetic holder for 12mm laser module, diameter 36mm, height 62mm, plastic Magnetic Mount for Lasermodul 12mm
Ø12mm(45x75) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 12mm Mount for Lasermodul 12mm
Ø12mm(45x75) MULTI-MOUNT für Lasermodule mit Durchmesser 12mm Mount for Lasermodul 12mm
Ø12mm(20x57) MOUNT für Lasermodule mit Durchmesser 12mm Bracket for Lasermodule 12mm
Ø12mm(25x70) Halterung-Ballhead für Lasermodule mit Durchmesser 12mm Power supply 3V DC (1200mA)
Netzteil, Ausgang: 3V DC, offene Kabelenden, Betriebsspannung: 100-240V AC Picotronic accessory PICO-LENS-CLEANING-PEN-MICRO
certified Laser Safety Eyewear PICO-LPG-780-1064 according to DIN EN 207, suitable for infrared wavelengths >765 - 1100 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications
Bracket for Lasermodule 12mm

Main Data

EAN: 4055132006631
Warranty: 1 years
Customs tariff number: 90132000000

Technical Parameters

Lifetime: > 10,000 h
Operating Temperature: -20°C - 50 °C
Storage Temperature: -40°C - 80 °C

Optical Parameters

Beam Shape: DOE
Optical Power: 5 mW
Laser Class: 1
Divergence: D - 0.5 mrad
Operating Distance: 1 m
Optics: glass lens AR coated
Laser technology: Single Mode Diode
Focus: adjustable

Electrical Parameters

Potential of Housing: isolated
Operating Voltage: 2.7 - 3.3, typ 3 V DC
Operating Current: 15 - 45, typ 30 mA
Cable color positive: red
Cable color GND: black
Power Supply: Power Supply with stripped/tinned wires, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max.

Mechanical Parameters

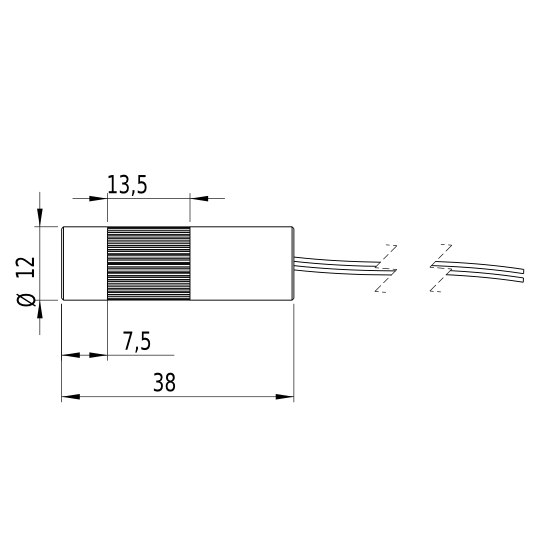

Size: Ø12x38 mm
Material: aluminium
Cable length: 100 mm
Wire type: 26AWG, 0,14mm²

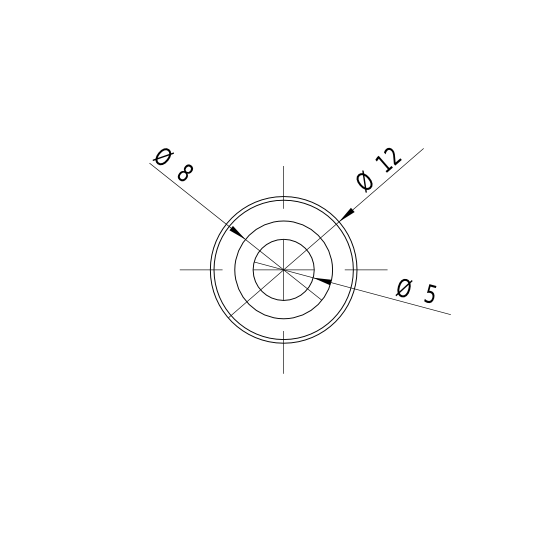

Output Aperture: 5 mm
Weight: 9.5 g
Stripping of wire: 5 mm
