Line laser, green, 520 nm, 120 °, 15 mW, 24 V DC, Ø20x120 mm, Laser Class 2M, Focus adjustable, CON…

€319.90*

Prices incl. VAT. No shipping costs for orders over 100 Euro in the EU

Available, delivery time: 1-2 days

Product number: 70134681

Product information "Line laser, green, 520 nm, 120 °, 15 mW, 24 V DC, Ø20x120 mm, Laser Class 2M, Focus adjustable, CON…"

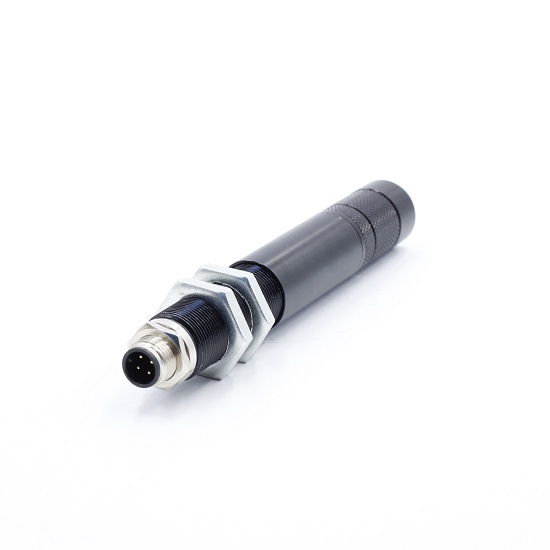

Adjustable isolated Line lasermodule, green, 120°, 520nm, 15mW, 12-24V DC, 20x120mm, class 2M, with connector M12 without cable, with outside winding

Operating Voltage 24 V DC
Isolated housing
Laser Class 2M
Protection lens
M12 Connector

Accessesories

Magnetic Mount for Lasermodul 20mm
20mm(48x86) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 20mm Picotronic BRACKET-20-AL
Ø20mm(35x80) BRACKET für Lasermodule mit Durchmesser 20mm auf 22mm Montagewelle Magnetic Mount for Lasermodul 20mm
Ø20mm(45x75) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 20mm Magnetic Mount for 20mm Laser Module
Ø20mm (36x62) magnetic holder for laser module 20mm, diameter 36mm, height 62mm, plastic Mount for Lasermodul 20mm
Ø20mm(45x75) MULTI-MOUNT für Lasermodule mit Durchmesser 20mm Bracket for Lasermodule 20mm
ø 20mm (25x78) Halterung-Ballhead für Lasermodule mit Durchmesser 20mm Picotronic accessory PICO-LENS-CLEANING-PEN-MICRO
certified Laser Safety Eyewear PICO-LPG-405-532 according to DIN EN 207, suitable for blue and green wavelengths >400 - 532 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications

Main Data

EAN: 4055132003272
Warranty: 1 years
Customs tariff number: 90132000000

Technical Parameters

Lifetime: > 10,000 h
Operating Temperature: -20°C - 50 °C
Storage Temperature: -40°C - 80 °C

Optical Parameters

Beam Shape: Line
Optical Power: 15 mW
Laser Class: 2M
Divergence: H - 1.0 mrad
Fan Angle: 120 °
Line Thickness: adjustable
Operating Distance: 2 m
Optics: glass lens AR coated
Laser technology: Single Mode Diode
Protection Lens: yes
Focus: adjustable

Electrical Parameters

Potential of Housing: isolated
Operating Voltage: 12 - 26.4, typ 24 V DC
Operating Current: 30 - 80, typ 50 mA
Connector: CON-M12

Mechanical Parameters

Size: Ø20x120 mm
Material: aluminium
Output Aperture: 5.5 mm
Housing Color: black
Weight: 79 g
Connector Pin VDD: 1
Connector Pin GND: 3
Protection Class: IP 54

Buy LH520-15-24(20x120)120-M12-ADJ on Amazon

Opening angle:	120 °
