Line laser, green, 520 nm, 30 °, 16 mW, 3 V DC, Ø14x55 mm, Laser Class 2M, Focus adjustable, Cable length 100 mm, CON-M12
€479.90
Available in 21 days, delivery time 1-2 days
Product information "Line laser, green, 520 nm, 30 °, 16 mW, 3 V DC, Ø14x55 mm, Laser Class 2M, Focus adjustable, Cable length 100 mm, CON-M12"
focusable isolated Line lasermodule, green, 30°, 520nm, 16mW, 3V DC, 14x55mm, class 2M, internal modulation 1kHz, connector M12
- Operating Voltage 3 V DC
- Laser Class 2M
- Adjustable focus
- Low power consumption
- Compact size
Main Data
- EAN: 4055132017675
- Warranty: 1 years
- Customs tariff number: 90132000000
Technical Parameters
- Lifetime: > 5,000 h
- Operating Temperature: -10°C - 60 °C
- Storage Temperature: -40°C - 80 °C
Optical Parameters
- Beam Shape: Line
- Optical Power: 16 mW
- Laser Class: 2M
- Divergence: C - 0.4 mrad
- Fan Angle: 30 °
- Line Thickness: adjustable
- Operating Distance: 8 m
- Optics: glass lens AR coated
- Laser technology: Single Mode Diode
- Focus: adjustable
- internal modulation frequency: 1 kHz
Electrical Parameters
- Potential of Housing: isolated
- Operating Voltage: 2.7 - 3.3, typ 3 V DC
- Operating Current: 25 - 70, typ 40 mA

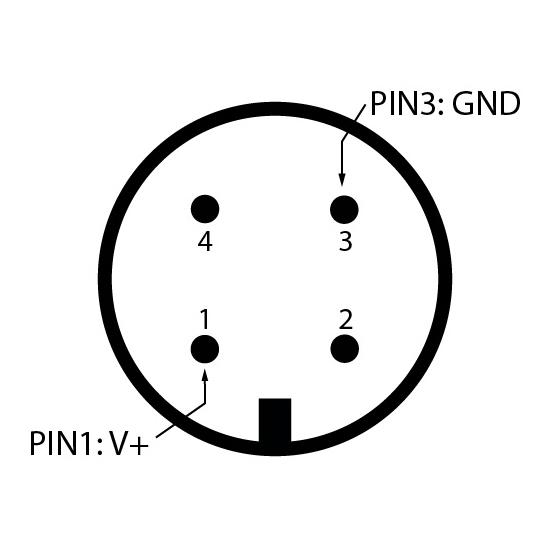

- Connector: CON-M12
- Cable color positive: red
- Cable color ground: black
- Power Supply: Power Supply with stripped/tinned wires, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max.
Mechanical Parameters
- Size: Ø14x55 mm
- Material: aluminium
- Cable length: 100 mm
- Wire type: 26AWG, 0,14mm²
- Output Aperture: 4 mm
- Housing Color: black
- Weight: 20 g
Holosun
- BKA exception: no
