Brackets

Ø4-12,5mm(66x69) LASER-MOUNT für Lasermodule mit Durchmesser 4mm bis 12,5mm Laser holder with a adjustable height Bracket is adjustable in all degrees of freedom Material: aluminum laser holder Rod and baseplate: Steel Flexible design Low cost Light weight stable transportbox Halterung für Lasermodule mit Durchmesser 4mm bis 12,5mm. Befestigung: Vier Durchgangslöcher im Standfuß Ø4,5mm Das Lasermodul wird mit Kunststoffklemmschrauben in der Halterung fixiert. Material: Aluminium, Stahl; Farbe: Schwarz Hochwertige Halterung für industrielle Anwendungen. Delivery Content Inklusive stabiler Transportbox Main Data EAN: 4055132008635 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 40 °C Storage Temperature: -50°C - 50 °C Mechanical Parameters Material: Stainless Steel Weight: 150 g Mount Parameters Total Height (h1): 69 mm Mount Diameter (d1): Ø 12.5 mm Diameter of Base (d2): Ø 35 mm Width of Mount (b): 66 mm Angle of Rotation Alpha (α): 360 ° Angle of Rotation Beta (β): ± 360 ° Shop+Web Delivery Content: Inklusive stabiler Transportbox Holosun BKA exception: no Matching articles Isolated point laser, red, 650nm, 0.4mW, Laser Class 1, collimated focus, 3V DC, 8x21mmIsolated point laser, red, 650nm, 0.4mW, laser class 1, focus collimated, 3V DC, 8x21mm Isolated line laser, red, 650nm, 4mW, 20°, Laser Class 2, Focus 0.1m, 5V DC, 8x26mmIsolated line laser, red, 650nm, 4mW, 20°, Laser Class 2, Focus 0.1m, 5V DC, 8x26mm Dot laser, red, 650 nm, 0.4 mW, 3 V DC, Ø8x21 mm, Laser Class 1, Focus adjustable, Cable length 100 mmFocusable point laser, red, 650nm, 0.4mW, Laser Class 1, focus adjustable, 3V DC, 8x21mm PICOTRONIC Point Laser, green, 520 nm, 1mW, 5V DC, Ø8x35 mm, Focus collimated, Laser Class 2Green dot laser, 520 nm, 1mW, 5V DC, Ø8x35 mm, Focus collimated, Laser class 2 Isolated point laser module, red, 650nm, 1mW, 5V DC, 7x21mm, Class 2, 10000h lifetime MTTF @ 25°CDot laser, red, 650nm, 1mW, Laser Class 2, collimated focus, 5V DC, 7x21mm Line laser, red, 635nm, 1mW, 90°, Laser Class 1, Focus 0.15m, 3V DC, 6x30mmLine laser, red, 635nm, 1mW, 90°, Laser Class 1, Focus 0.15m, 3V DC, 6x30mm Line laser red 650nm 3mW 5VDC - Laser module for Arduino, Raspberry PI, ESP8266, ESP32, DIY electronics projects, light barrier, signal transmission, measurement technologyEye-safe laser module compatible with Arduino, Raspberry Pi, and ESP 8266 boards Dot laser, red, 650 nm, 1 mW, 24 V DC, Ø12x60 mm, Laser Class 2, Focus fixed (3.4m), Cable length 500 mm, CON-M8-3POLPunktlaser, rot, 650nm, 1mW, Laser Klasse 2, Fokus 3,4m, 24V DC, 12x60mm, M8-Buchse Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.deBuy PLM-1125 on Amazon

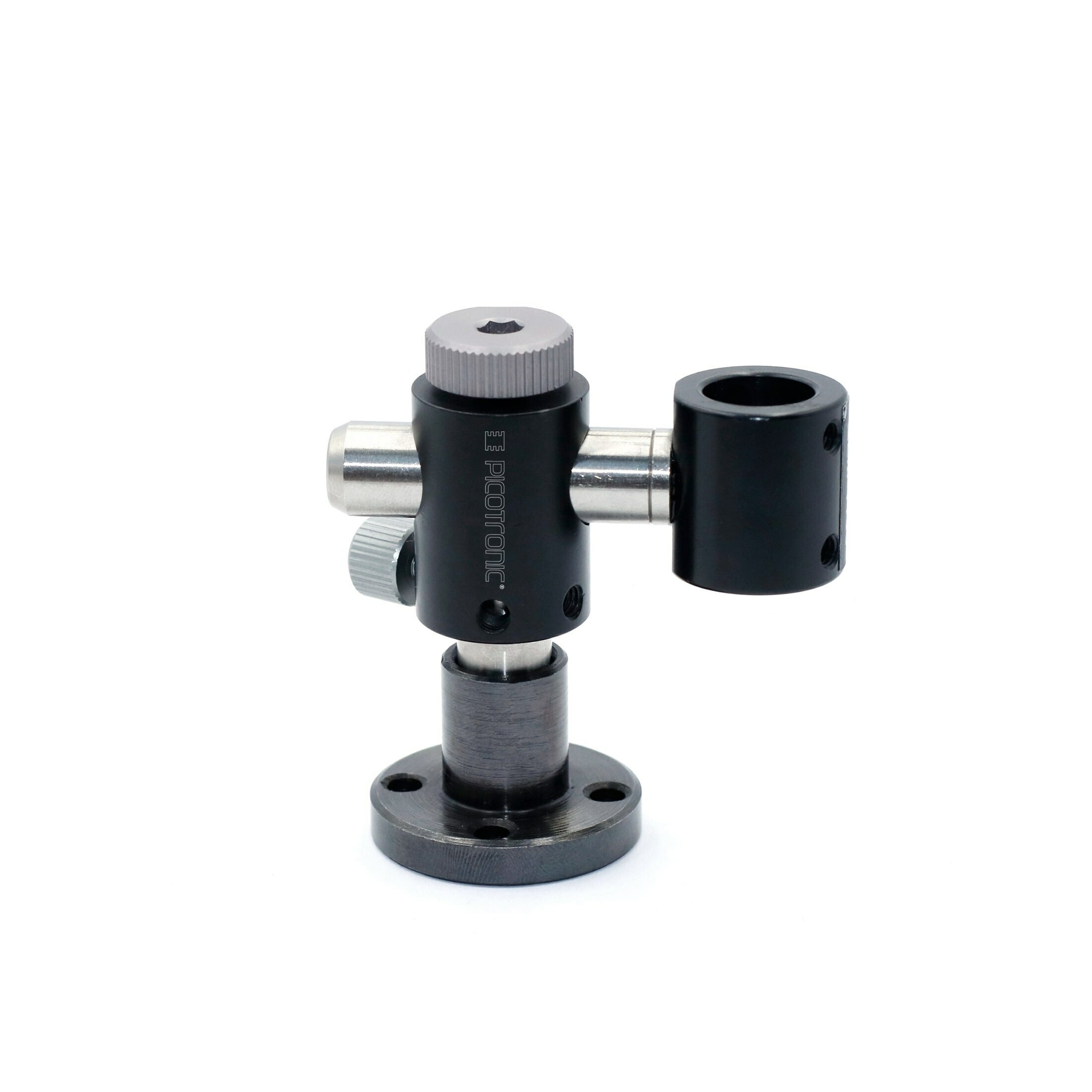

Ø16.5-22.5mm (90x75) LASER-MOUNT for laser modules with diameter 16.5mm to 22.5mm High-quality industrial-grade mount for laser modules with a diameter of 16.5mm to 22.5mm. The mount is adjustable in all degrees of freedom. For mounting, there are four through-holes in the base. The total height of the mount is 90 mm. The mount is characterized by its high flexibility. A sturdy transport box is included in the delivery. Mount for laser modules with a diameter of 16.5mm to 22.5mm. Fastening: Four through holes in the base Ø4.5mm The laser module is fixed in the bracket with plastic clamping screws. Material: Aluminum, Steel; Color: Black High-quality bracket for industrial applications. Delivery Content Including a stable transport box Main Data EAN: 4055132008642 Warranty: 1 years Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 40 °C Storage Temperature: -50°C - 50 °C Mechanical Parameters Size: 35x35x90 mm Material: Stainless Steel Weight: 150 g Mount Parameters Total Height (h1): 90 mm Mount Diameter (d1): Ø 22.5 mm Diameter of Base (d2): Ø 35 mm Width of Mount (b): 75 mm Angle of Rotation Alpha (α): 360 ° Angle of Rotation Beta (β): ± 360 ° Shop+Web Delivery Content: Including a stable transport box Holosun BKA exception: no Matching articles Line laser, red, 650 nm, 16 mW, 24 V DC, Ø20x80 mm, 90 °, Focus fixed (3000mm), Cable length 1.500 mm, Laser class 2Line laser, red, 650 nm, 16 mW, 24 V DC, Ø20x80 mm, 90 °, Focus fixed (3000mm), Cable length 1.500 mm, Laser class 2 Line laser, red, 650nm, 90°, 16mW, 24V DC, Ø20x80mm, Laser Class 2, Fixed focus (3000mm), Cable length 3000mmLine laser, red, 650nm, 16mW, 90°, Laser Class 2, Focus 3m, 24V DC, 20x80mm PICOTRONIC Linienlaser, rot, 635 nm, 30 mW, 24 V DC, Ø20x118 mm, 110 °, Fokus fixed (3000mm), Kabellänge 500 mm, Laserklasse 2, um 90° gedrehter LaserkopfLinienlaser, rot, 635 nm, 30 mW, 24 V DC, Ø20x118 mm, 110 °, Fokus fixed (3000mm) , Kabellänge 500 mm, Laserklasse 2, um 90° gedrehter Laserkopf PICOTRONIC line laser, green, 520 nm, 30 mW, 24 V DC, Ø20x118 mm, 110 °, Focus fixed (3000mm), Cable length 500 mm, Laser class 2, laser head rotated by 90°Line laser, green, 520 nm, 30 mW, 24 V DC, Ø20x118 mm, 110 °, focus fixed (3000mm), cable length 500 mm, laser class 2, laser head rotated by 90° Dot laser, red, 635 nm, 1 mW, 24 V DC, Ø20x90 mm, Laser Class 2, Focus adjustable, CON-M12Adjustable point laser, red, 635nm, 1mW, laser class 2, focus adjustable, 24V DC, 20x90mm Dot laser, green, 520 nm, 1 mW, 24 V DC, Ø20x90 mm, Laser Class 2, Focus adjustable, CON-M12Focusable point laser, green, 520nm, 1mW, Laser Class 2, focus adjustable, 24V DC, 20x70mm PICOTRONIC Line Laser, green, 520 nm, 30 mW, 24 V DC, Ø20x90 mm, 110 °, Focus einstellbar, Laser Class 2MLine laser, green, 520nm, 30mW, 110°, Laser Class 2M, adjustable focus, 24V DC, 20x90mmLine laser, green, 520 nm, 30 mW, 24 V DC, Ø20x90 mm, 110 °, focus einstellbar , laser class 2M Linienlaser, rot, 650nm, 25mW, 90°, Laser Klasse 2, Fokus 0,8m, 24V DC, 20x80mmLinienlaser, rot, 650nm, 25mW, 90°, Laser Klasse 2, Fokus 0,8m, 24V DC, 20x80mm Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.deBuy PLM-1225 on Amazon

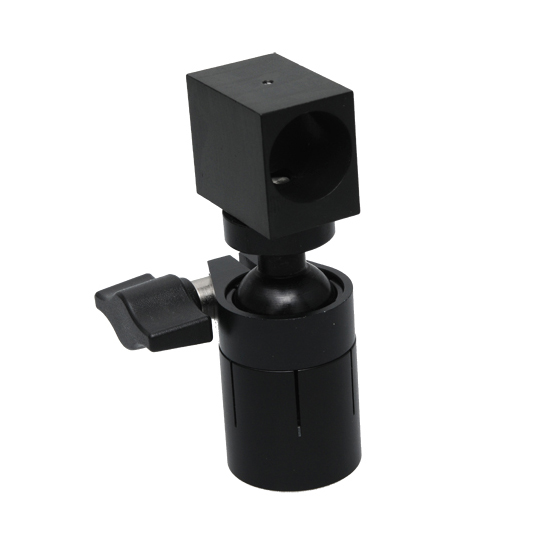

Ø16mm(25x75) Halterung-Ballhead für Lasermodule mit Durchmesser 16mm Laser holder with a height of 74 mm. Ballhead allows to move in all degrees of freedom. 1/4 '' UNC internal thread in the base. Material: Aluminum, black anodized Flexible design / Industrial Quality / Light weight Bracket for Lasermodule 16mm. 1/4 '' UNC internal thread in the base. Das Lasermodul kann mit einer Madenschraube in der Halterung fixiert werden. Material: Aluminium; Farbe: Schwarz Main Data EAN: 4260129042411 Warranty: 1 years Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 40 °C Storage Temperature: -50°C - 50 °C Mechanical Parameters Size: 25x25x74 mm Material: aluminium Housing Color: black Weight: 84 g Mount Parameters Total Height (h1): 75 mm Height to Laseraxis (h2): 64 mm Height of Base (h3): 34.5 mm Mount Diameter (d1): Ø 16 mm Diameter of Base (d2): Ø 25 mm Width of Mount (b): 18 mm Height of Mount (g): 23 mm Height of Mount Head (k): 39 mm Depth of Mount (t): 27 mm Angle of Rotation Alpha (α): 360 ° Angle of Rotation Beta (β): ± 40 ° Angle of Rotation Gamma (γ): ± 40 ° Holosun BKA exception: no Matching articles Adjustable Isolated DOE Laser Module, Red, 635nm, 5mW, 24V DC, 16x65mm, Class 2M, includes DOE R261 Justierbares isoliertes DOE Lasermodul, rot, 635nm, 5mW, 24V DC, 16x65mm, Klasse 2M, inkl. DOE R 205 Line laser, green, 520 nm, 60 °, 10 mW, 24 V DC, Ø16x55 mm, Laser Class 1M, Focus fixed (3000mm), Cable length 1,000 mm, CON-M12Linienlaser, grün, 520nm,10mW, 3V, 16x55mm, Fokus 3m, Öffnungswinkel 60°, Laser Klasse 1M, mit M12-Stecker, IP67 Line laser, green, 520 nm, 60 °, 10 mW, 24 V DC, Ø16x55 mm, Laser Class 1M, Focus fixed (3000mm), Cable length 1,000 mmLinienlaser, grün, 520nm, 10mW, 3V, 16x55mm, Fokus 3m, Öffnungswinkel 60°, Laser Klasse 1M, IP67 Doe laser, red, 635 nm, 60 °, 10 mW, 24 V DC, Ø16x62 mm, Laser Class 2M, Focus adjustable, Cable length 300 mm Doe laser, red, 635 nm, 45 °, 10 mW, 24 V DC, Ø16x62 mm, Laser Class 2M, Focus adjustable, Cable length 300 mm Doe laser, red, 635 nm, 10 mW, 5 V DC, Ø16x62 mm, Laser Class 2M, Focus adjustable, Cable length 300 mm Doe laser, red, 635 nm, 10 mW, 5 V DC, Ø16x62 mm, Laser Class 2M, Focus adjustable, Cable length 300 mm Doe laser, green, 520 nm, 15.9 °, 5 mW, 3 V DC, Ø16x65 mm, Laser Class 2M, Focus adjustable, Cable length 100 mm Doe laser, red, 635 nm, 10 mW, 5 V DC, Ø16x62 mm, Laser Class 2, Focus adjustable, Cable length 300 mm Cross laser, green, 520 nm, 90 °, 10 mW, 5 V DC, Ø16x60 mm, Laser Class 1M, Focus adjustable, Cable length 200 mmCross laser, green, 520nm, 10mW, 90°, laser class 2, focus adjustable, 5V DC, 16x60mm Doe laser, red, 635 nm, 38.5 °, 5 mW, 5 V DC, Ø16x62 mm, Laser Class 1, Focus adjustable, Cable length 300 mm Red point laser, 650nm, 1mW, Laser Class 2, Focus 1.3m, 3V DC, 16x90mm, incl. power supplyRed dot laser, 650nm, 1mW, Laser Class 2, Focus 1.3m, 3V DC, 16x90mm, including power adapter Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.deBuy BALLHEAD-MOUNT-16(25x75) on Amazon

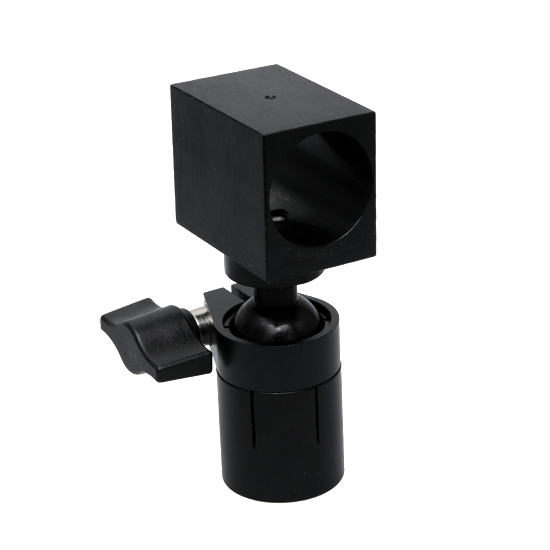

Ø22mm(25x80) Halterung-Ballhead für Lasermodule mit Durchmesser 22mm Laser holder with a height of 80 mm. Ballhead allows to move in all degrees of freedom 1/4 '' UNC internal thread in the base. Material: Aluminum, black anodized Flexible design Industrial Quality Light weight Bracket for Lasermodule 22mm 1/4 '' UNC internal thread in the base. Das Lasermodul kann mit einer Madenschraube in der Halterung fixiert werden. Material: Aluminium; Farbe: Schwarz Main Data EAN: 4260129042329 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 40 °C Storage Temperature: -50°C - 50 °C Mechanical Parameters Material: aluminium Housing Color: black Weight: 84 g Mount Parameters Total Height (h1): 80 mm Height to Laseraxis (h2): 67 mm Height of Base (h3): 34.5 mm Mount Diameter (d1): Ø 22 mm Diameter of Base (d2): Ø 25 mm Width of Mount (b): 24 mm Height of Mount (g): 29 mm Height of Mount Head (k): 46 mm Depth of Mount (t): 36 mm Angle of Rotation Alpha (α): 360 ° Angle of Rotation Beta (β): ± 40 ° Angle of Rotation Gamma (γ): ± 40 ° Holosun BKA exception: no Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.deBuy BALLHEAD-MOUNT-22(25x80) on Amazon

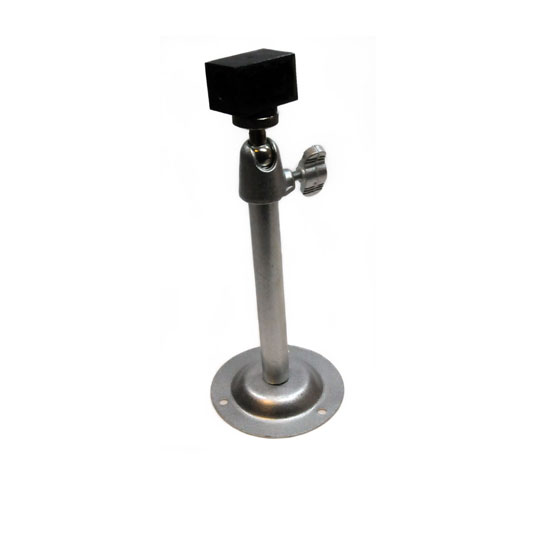

Laser holder with a height of 12 cm, also reducible to a height of 6 cm Bracket is adjustable in all degrees of freedom Material: aluminum rod and laser holder Baseplate: Plastic Flexible design Low cost Light weight Main Data EAN: 4260129041360 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 40 °C Storage Temperature: -50°C - 50 °C Mechanical Parameters Material: Aluminium/Plastic Weight: 85 g Holosun BKA exception: no Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de

Base plate with mounting pin Ø22mm for wall and ceiling mounting, rotatable fastening. The bracket is intended for mounting on a Ø22mm mounting shaft. The total height of the bracket is 80 mm. High-quality mount with a mounting pin Ø22mm. Mounts that are designed for Ø22mm mounting shafts can be mounted on the mounting pin. The product is compatible with Picotronic bracket BRACKET-20-AL and Picotronic bracket BRACKET40. Four through holes and four M6 threaded holes are provided in the base plate for fastening. Base plate with mounting mandrel Ø22mm. Mounting: Supports can be fixed to the Ø22mm mounting mandrel with a clamping screw. Compatible with Picotronic bracket BRACKET-20-AL and Picotronic bracket BRACKET40. For securing the base plate, there are four through holes with Ø6mm (spacing 70x35mm) and four threaded holes M6 (spacing 80x60mm) provided. Material: Aluminum; Color: Black High-quality bracket for industrial applications. Main Data EAN: 4260129045153 Warranty: 1 years Customs tariff number: 90139080000 Mechanical Parameters Size: 90x70x64 mm Material: aluminium Weight: 350 g Mount Parameters Total Height (h1): 64 mm Mount Diameter (d1): Ø 22 mm Holosun BKA exception: no Accessesories Picotronic BRACKET-20-ALØ20mm(35x80) BRACKET für Lasermodule mit Durchmesser 20mm auf 22mm Montagewelle Picotronic BRACKET40 Matching articles Linienlaser, rot, 658nm, 50mW, 90°, Laser Klasse 2M, Fokus 7m, 24V DC, 40x210mm, inkl. HalterungRed line laser, 658nm, 50mW, 90°, Laser Class 2M, focus 7m, 24V DC, 40x210mm, including mount Picotronic Linelaser green, 520nm, 90°, 24V DC, Ø20x135 mm, Focus adjustable, class 2MFokussierbarer Linienlaser, grün, 520nm, 15mW, 90°, Laser Klasse 2M, Fokus einstellbar, 24V DC, 20x135mm, inkl. Halterung Picotronic Linelaser green, 520nm, 90°, 24V DC, Ø20x135 mm, Focus adjustable, class 2MFokussierbarer Linienlaser, grün, 520nm, 30mW, 90°, Laser Klasse 2M, Fokus einstellbar, 24V DC, 20x135mm, inkl. Halterung Picotronic Linelaser blue, 450nm, 90°, 24V DC, Ø20x135 mm, Focus adjustable, class 2M, M12-connectorFokussierbarer Linienlaser, blau, 450nm, 30mW, 90°, Laser Klasse 2M, Fokus einstellbar, 24V DC, 20x135mm, inkl. Halterung Picotronic Linelaser blue, 450nm, 90°, 24V DC, Ø20x135 mm, Focus adjustable, class 2M, M12-connectorFokussierbarer Linienlaser, blau, 450nm, 15mW, 90°, Laser Klasse 2M, Fokus einstellbar, 24V DC, 20x135mm, inkl. Halterung Picotronic Linelaser red, 635nm, 90°, 24V DC, Ø20x135 mm, Focus adjustable, class 2M, M12-connectorFokussierbarer Linienlaser, rot, 635nm, 15mW, 90°, Laser Klasse 2M, Fokus einstellbar, 24V DC, 20x135mm, inkl. Halterung Picotronic Linelaser red, 635nm, 90°, 24V DC, Ø20x135 mm, Focus adjustable, class 2M, M12-connectorFokussierbarer Linienlaser, rot, 635nm, 30mW, 90°, Laser Klasse 2M, Fokus einstellbar, 24V DC, 20x135mm, inkl. Halterung Picotronic Linelaser green, 532nm, 90°, 24V DC, Ø20x135 mm, Focus adjustable, class 2M, M12-connectorFokussierbarer Linienlaser, grün, 532nm, 20mW, 90°, Laser Klasse 2M, Fokus einstellbar, 24V DC, 20x135mm, inkl. Halterung Picotronic Linelaser red, 635nm, 90°, 24V DC, Ø20x135 mm, Focus adjustable, class 2M, M12-connectorFokussierbarer Linienlaser, rot, 635nm, 25mW, 90°, Laser Klasse 2M, Fokus einstellbar, 24V DC, 20x135mm, inkl. Halterung Line laser, red, 635 nm, 90 °, 15 mW, 5 V DC, Ø20x135 mm, Laser Class 2M, Focus adjustable, CON-M12Fokussierbarer Linienlaser, rot, 635nm, 15mW, 90°, Laser Klasse 2M, Fokus einstellbar, 5V DC, 20x135mm, inkl. Halterung Picotronic Linelaser green, 532nm, 90°, 24V DC, Ø20x135 mm, Focus adjustable, class 2M, M12-connectorFokussierbarer Linienlaser, grün, 532nm, 15mW, 90°, Laser Klasse 2M, Fokus einstellbar, 24V DC, 20x135mm, inkl. Halterung Picotronic Linelaser green, 532nm, 90°, 24V DC, Ø20x135 mm, Focus adjustable, class 2M, M12-connectorFokussierbarer Linienlaser, grün, 532nm, 30mW, 90°, Laser Klasse 2M, Fokus einstellbar, 24V DC, 20x135mm, inkl. Halterung Line laser, green, 532 nm, 90 °, 30 mW, 24 V DC, Ø20x120 mm, Laser Class 2M, Focus fixed (2000mm), CON-M12Linienlaser, grün, 532nm, 30mW, 90°, Laser Klasse 2M, Fokus 2m, 24V DC, 20x80mm, mit M12-Stecker ohne Kabel, inkl. Halterung Picotronic DOE Laser red, 635nm, 24V DC, Ø20x135 mm, Focus adjustable, class 3B, M12-connector, including mount and DOE R260Fokussierbarer Punktlaser, rot, 635nm, 30mW, Laser Klasse 3B, Fokus einstellbar, 24V DC, 20x135mm, inkl. Halterung, mit DOE-DE-R260 Viewfinder (Kreis + Kreuz) Picotronic DOE Laser green, 520nm, 24V DC, Ø20x135 mm, Focus adjustable, class 2M, M12-connector, including mount and DOE R342DOE Lasermodul, grün, 520nm, 15mW, Laser Klasse 2M, Fokus einstellbar, 24V DC, 20x135mm, inkl. Halterung, mit DOE-DE-R342 Cross (Kreuz) 52° Picotronic DOE Laser green, 520nm, 24V DC, Ø20x135 mm, Focus adjustable, class 2M, M12-connector, including mount and DOE R212DOE Lasermodul, grün, 520nm, 15mW, Laser Klasse 2M, Fokus einstellbar, 24V DC, 20x135mm, inkl. Halterung, mit DOE-DE-R212 Cross (Kreuz) 25° Picotronic DOE Laser green, 532nm, 24V DC, Ø20x135 mm, Focus adjustable, class 2M, M12-connector, including mount and DOE R212DOE Lasermodul, grün, 532nm, 15mW, Laser Klasse 2M, Fokus einstellbar, 24V DC, 20x135mm, inkl. Halterung, mit DOE-DE-R212 (Kreuz) 25° Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.deBuy MOUNT-BASE-PLATE-01 on Amazon

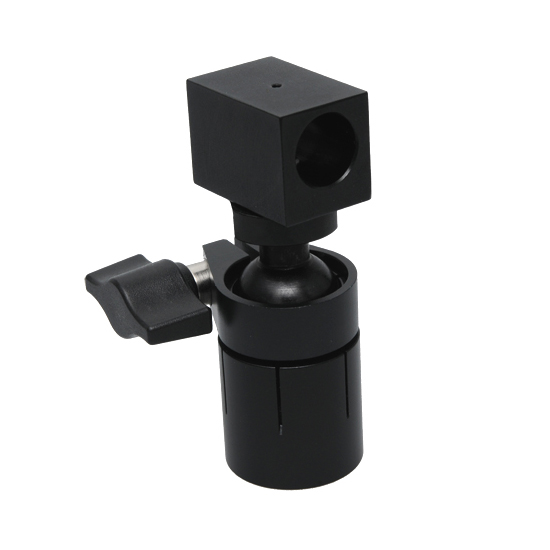

Die Halterung ist durch die Kugelkopflagerung in allen Freiheitsgraden einstellbar. Zur Befestigung dient ein 1/4'' UNC Innengewinde im Standfuß. Die Gesamthöhe der Halterung beträgt 45,5 mm. Befestigung: 1/4''UNC Innengewinde im Standfuß; Zwei Durchgangslöcher 4mm; Zwei Durchgangslöcher 2,5mm Material: Aluminium; Farbe: Schwarz Main Data EAN: 4055132020774 Warranty: 1 years Customs tariff number: 90139080000 Mechanical Parameters Material: aluminium Housing Color: black Weight: 40 g Holosun BKA exception: no Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.deBuy BALL-HEAD-MOUNT01 on Amazon

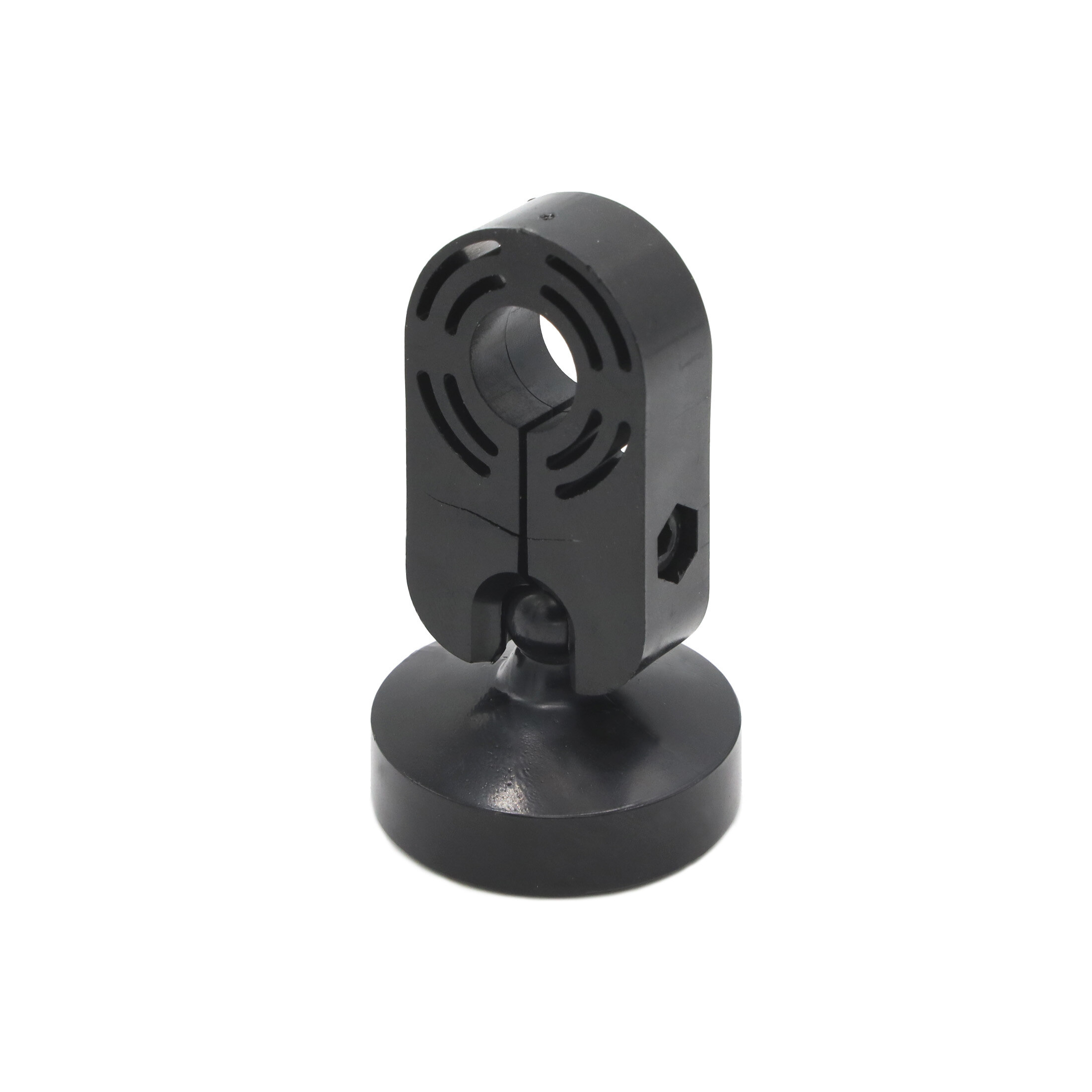

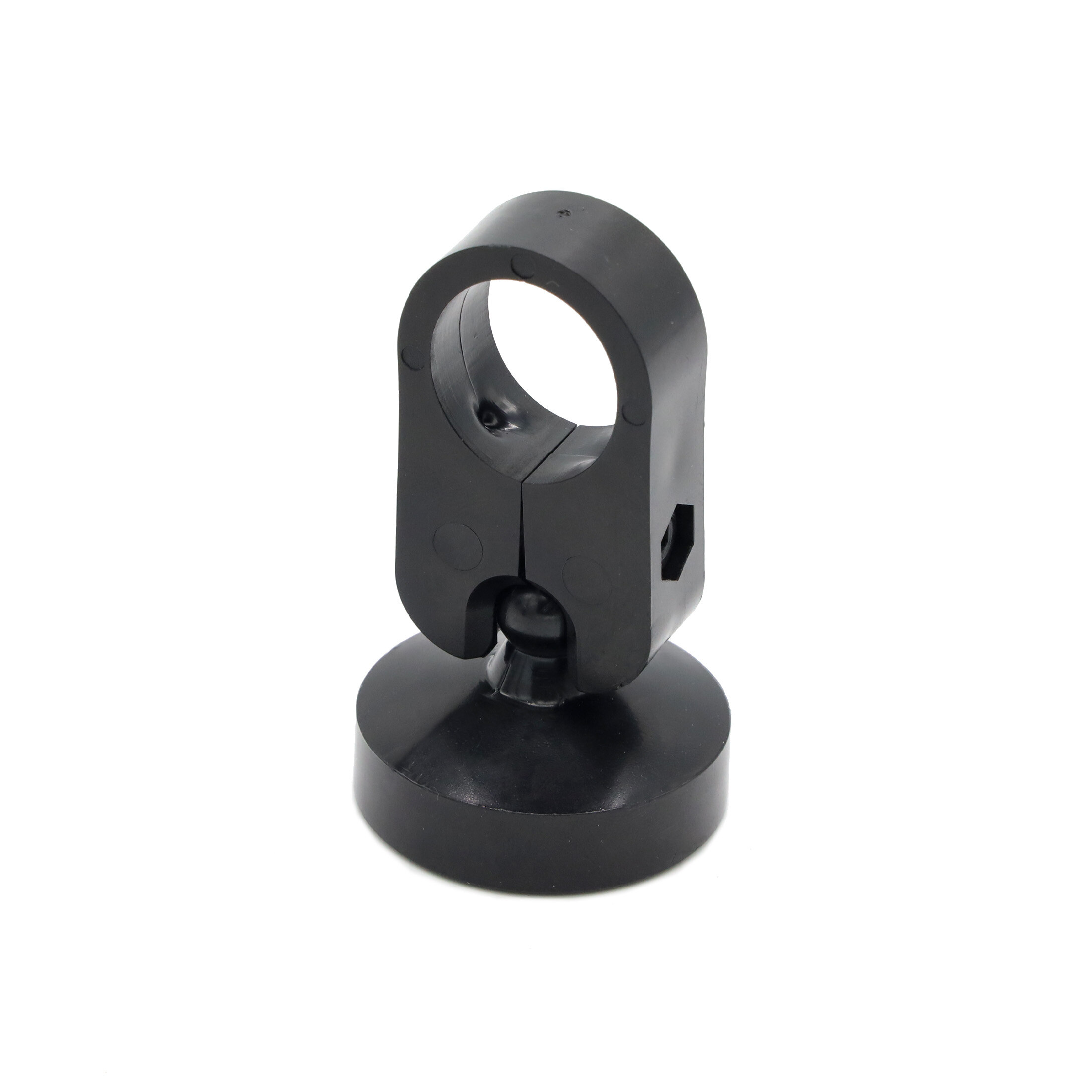

Ø12mm (36x62) Magnetic holder for 12mm laser module, diameter 36mm, height 62mm, plastic Inexpensive mounting bracket in a simple design for laser modules with a diameter of 12mm. The bracket is adjustable in all degrees of freedom. The magnetic base allows for quick and uncomplicated secure attachment. The total height of the bracket is 62 mm. A holding force of 6.5 kg is achieved. If a higher holding force is needed, there are, for example, the professional MAGNETIC-MOUNT-PRO from Picotronic in sizes ranging from 6mm to 22mm in millimeter increments with a holding force of 65 kg. Mount for laser modules with a diameter of 12mm. Mounting: Magnetic stand with a holding force of 6.5 kg The laser module is fixed in the bracket with a clamping screw. Material: Plastic; Color: Black Affordable mounting for many applications Main Data EAN: 4055132022099 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 50 °C Storage Temperature: -50°C - 70 °C Mechanical Parameters Material: Plastic Housing Color: black Weight: 20 g Mount Parameters Total Height (h1): 62 mm Height to Laseraxis (h2): 47 mm Height of Base (h3): 17 mm Mount Diameter (d1): Ø 12 mm Diameter of Base (d2): Ø 36 mm Width of Mount (b): 26 mm Height of Mount (g): 45 mm Depth of Mount (t): 12 mm Angle of Rotation Alpha (α): 360 ° Angle of Rotation Beta (β): ± 180 ° Holosun BKA exception: no Accessesories Magnetic Mount for Lasermodul 12mmØ12mm(45x75) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 12mm Magnetic Mount for Lasermodul 12mm12mm(48x86) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 12mm Picotronic accessory PICO-LENS-CLEANING-PEN-MICRO Matching articles PICOTRONIC red dot laser 635 nm, 1 mW, 3 V DC, Ø12x25 mm, focus kollimiert, laser class 2Dot laser, red, 635 nm, 1 mW, 3 V DC, Ø12x25 mm, Focus kollimiert, Laser class 2 Punktlaser grün 532nm 1mW Ø12x60 100mm KabelPunktlaser, grün, 532nm, 1mW, Laser Klasse 2, Fokus kollimiert, 3V DC, 12x60mm Doe laser, red, 650 nm, 5 mW, 3 V DC, Ø12x38 mm, Laser Class 1, Focus adjustable, Cable length 100 mm PICOTRONIC red dot laser 650 nm, 0,4 mW, 3 V DC, Ø12x34 mm, Focus einstellbar, Cable length 100 mm, Laser class 1Point laser, red, 650 nm, 0,4 mW, 3 V DC, Ø12x34 mm, Focus einstellbar, Cable length 100 mm, Laser class 1 Line laser red 650nm 5mW 20° 24VDC aluminum housing 12x50mmLine laser, red, 650nm, 5mW, 20°, Laser Class 1, Focus 3m, 24V DC, 12x50mm, Cable length 100mm direct green laser modul cross laser green 520nm 4mW 3VDCKreuzlaser, grün, 520nm, 4mW, 90°, Laser Klasse 1, Fokus 3m, 3V DC, 12x47mm Line laser, red, 635 nm, 90 °, 4 mW, 5 V DC, Ø12x32 mm, Laser Class 1, Focus fixed (3000mm), Cable length 100 mm Dot laser, red, 650nm, 1mW, Laser Class 2, focus collimated, 3V DC, 12x40mm, axially parallelDot laser, red, 650nm, 1mW, Laser Class 2, collimated focus, 3V DC, 12x40mm, axis parallel PICOTRONIC red point laser 650 nm, 0,4 mW, 3 V DC, Ø12x34 mm, Focus einstellbar, Cable length 1.000 mm, Laser class 1Point laser, red, 650 nm, 0,4 mW, 3 V DC, Ø12x34 mm, Focus einstellbar, Cable length 1.000 mm, Laser class 1 Doe laser, red, 650 nm, 5 mW, 3 V DC, Ø12x38 mm, Laser Class 1M, Focus adjustable, Cable length 100 mm Punktlaser grün 532nm 1mW Ø12x60 250mm KabelPunktlaser, grün, 532nm, 1mW, Laser Klasse 2, Fokus kollimiert, 3V DC, 12x60mm, Kabel 0,25m Dot laser, green, 532 nm, 1 mW, 3 V DC, Ø12x45 mm, Laser Class 2, Focus collimated, Cable length 100 mm, 2.5 mm DC socket (GND pole inner)Punktlaser, grün, 532nm, 1mW, Laser Klasse 2, Fokus kollimiert, 3V DC, 12x45mm, mit DC-Hohlstecker 2.5mm Dot laser, red, 650 nm, 1 mW, 24 V DC, Ø12x60 mm, Laser Class 2, Focus fixed (3.4m), Cable length 500 mm, CON-M8-3POLPunktlaser, rot, 650nm, 1mW, Laser Klasse 2, Fokus 3,4m, 24V DC, 12x60mm, M8-Buchse Line laser red 650nm 5mW 20° 24VDC aluminum housing 12x50mmRed line laser, 650nm, 5mW, 20°, Laser Class 1, Focus 3m, 24V DC, 12x50mm, Cable length 300mm Line laser, green, 520 nm, 30 °, 7 mW, 5 V DC, Ø12x40 mm, Laser Class 2, Focus fixed (400mm), Cable length 500 mmLine laser, green, 520nm, 7mW, 30°, Laser Class 2, Focus 0.4m, 5V DC, 12x40mm Cross laser, green, 520 nm, 30 °, 10 mW, 5 V DC, Ø12x40 mm, Laser Class 2M, Focus fixed (400mm), Cable length 500 mmCross laser, green, 520nm, 10mW, 30°, Laser Class 2M, Focus 0.4m, 5V DC, 12x40mm Doe laser, green, 532 nm, 15 °, 5 mW, 3 V DC, Ø12x55 mm, Laser Class 2M, Focus adjustable, Cable length 200 mm, 2.5 mm DC socket (GND pole inner) Justierbares isoliertes DOE Lasermodul, rot, 635nm, 1mW, 3V DC, 12x54mm, Klasse 1, inkl. DOE-R-218, Kreuz Projektion 15° Point laser, blue, 405 nm, 0.4 mW, Laser Class 1, focusable, 5 V DC, 12x40 mmPoint laser, blue, 405 nm, 0.4 mW, laser class 1, focusable, 5 V DC, 12x40 mm Dot laser, blue, 450nm, 0.4mW, Laser Class 1, collimated, 5V DC, 12x40mmBlue dot laser, 450nm, 0.4mW, Laser Class 1, collimated, 5V DC, 12x40mm Linienlaser, rot, 650nm, 5mW, 5°, 5V DC, 12x50 mm, Klasse 2M, Fokus 1m, Intensität einstellbar (0-5V), Powell linseLinienlaser, rot, 650nm, 5mW, 5°, 5V DC, 12x50 mm, Klasse 2M, Fokus 1m, Intensität einstellbar (0-5V), Powell linse Line laser, green, 520nm, 4mW, 10°, Laser Class 1M, Focus 3m, 3V DC, 12x34mm, with 2.5mm DC hollow plug Doe laser, red, 635 nm, 5 °, 1 mW, 24 V DC, Ø12x54 mm, Laser Class 1M, Focus adjustable, Cable length 300 mm Doe laser, red, 635 nm, 5 °, 1 mW, 24 V DC, Ø12x54 mm, Laser Class 1M, Focus adjustable, Cable length 300 mm, CON-M12 Dot laser, red, 650 nm, 1 mW, 24 V DC, Ø12x60 mm, Laser Class 2, Focus fixed (3.4m), Cable length 500 mm, CON-M8-3POLRed dot laser, 650nm, 1mW, Laser Class 2, Focus 3.4m, 24V DC, 12x60mm, M8 connector LASERFUCHS Red Dot Laser 650 nm, , 5 V DC, Ø12x45 mm, Focus kollimiert, Laser Class 2 PICOTRONIC DOE Laser, green, 532 nm, 10 mW, 3 V DC, Ø12x55 mm, Focus einstellbar, Laser class 2M, DC hollow plug 2.5mm, incl. DOE R350Adjustable DOE Laser, green, 532 nm, 10 mW, 3 V DC, Ø12x55 mm, Focus einstellbar , Laser class 2M, DC hollow plug 2.5mm, incl. DOE R350 Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de

Ø20mm (36x62) Magnetic mount for laser module 20mm, diameter 36mm, height 62mm, plastic Cost-effective mount in a simple design for laser modules with a diameter of 20 mm. The mount is adjustable in all degrees of freedom. The magnetic base allows for quick and uncomplicated secure fastening. The total height of the mount is 62 mm. A holding force of 6.5 kg is achieved. If a higher holding force is needed, there are, for example, the professional MAGNETIC-MOUNT-PRO from Picotronic in sizes from 6 mm to 22 mm in millimeter increments with a holding force of 65 kg. Mount for laser modules with a diameter of 20 mm. Mounting: Magnetic stand with a holding force of 6.5 kg. The laser module is secured in the bracket with a clamping screw. Material: Plastic; Color: Black Inexpensive mounting for many applications. Main Data EAN: 4055132021825 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 50 °C Storage Temperature: -50°C - 70 °C Mechanical Parameters Size: 36x36x62 mm Material: Plastic Housing Color: black Weight: 20 g Mount Parameters Total Height (h1): 62 mm Height to Laseraxis (h2): 47 mm Height of Base (h3): 17 mm Mount Diameter (d1): Ø 20 mm Diameter of Base (d2): Ø 36 mm Width of Mount (b): 26 mm Height of Mount (g): 45 mm Depth of Mount (t): 12 mm Angle of Rotation Alpha (α): 360 ° Angle of Rotation Beta (β): ± 180 ° Holosun BKA exception: no Accessesories Magnetic Mount for Lasermodul 20mmØ20mm(45x75) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 20mm Magnetic Mount for Lasermodul 20mm20mm(48x86) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 20mm Picotronic accessory PICO-LENS-CLEANING-PEN-MICRO Matching articles Line laser, red, 650 nm, 16 mW, 24 V DC, Ø20x80 mm, 90 °, Focus fixed (3000mm), Cable length 1.500 mm, Laser class 2Line laser, red, 650 nm, 16 mW, 24 V DC, Ø20x80 mm, 90 °, Focus fixed (3000mm), Cable length 1.500 mm, Laser class 2 Line laser, red, 650nm, 90°, 16mW, 24V DC, Ø20x80mm, Laser Class 2, Fixed focus (3000mm), Cable length 3000mmLine laser, red, 650nm, 16mW, 90°, Laser Class 2, Focus 3m, 24V DC, 20x80mm Cross laser, green, 520 nm, 110 °, 10 mW, 5 V DC, Ø20x90 mm, Laser Class 1M, Focus adjustable, Cable length 950 mm, 2.5 mm DC socket (+ pole inner) PICOTRONIC Linienlaser, rot, 635 nm, 30 mW, 24 V DC, Ø20x118 mm, 110 °, Fokus fixed (3000mm), Kabellänge 500 mm, Laserklasse 2, um 90° gedrehter LaserkopfLinienlaser, rot, 635 nm, 30 mW, 24 V DC, Ø20x118 mm, 110 °, Fokus fixed (3000mm) , Kabellänge 500 mm, Laserklasse 2, um 90° gedrehter Laserkopf PICOTRONIC line laser, green, 520 nm, 30 mW, 24 V DC, Ø20x118 mm, 110 °, Focus fixed (3000mm), Cable length 500 mm, Laser class 2, laser head rotated by 90°Line laser, green, 520 nm, 30 mW, 24 V DC, Ø20x118 mm, 110 °, focus fixed (3000mm), cable length 500 mm, laser class 2, laser head rotated by 90° Dot laser, red, 635 nm, 1 mW, 24 V DC, Ø20x90 mm, Laser Class 2, Focus adjustable, CON-M12Adjustable point laser, red, 635nm, 1mW, laser class 2, focus adjustable, 24V DC, 20x90mm Dot laser, green, 520 nm, 1 mW, 24 V DC, Ø20x90 mm, Laser Class 2, Focus adjustable, CON-M12Focusable point laser, green, 520nm, 1mW, Laser Class 2, focus adjustable, 24V DC, 20x70mm PICOTRONIC Line Laser, green, 520 nm, 30 mW, 24 V DC, Ø20x90 mm, 110 °, Focus einstellbar, Laser Class 2MLine laser, green, 520nm, 30mW, 110°, Laser Class 2M, adjustable focus, 24V DC, 20x90mmLine laser, green, 520 nm, 30 mW, 24 V DC, Ø20x90 mm, 110 °, focus einstellbar , laser class 2M Line laser, green, 520 nm, 110 °, 30 mW, 24 V DC, Ø20x90 mm, Laser Class 2M, Focus adjustable, CON-M12Line laser, green, 520nm, 30mW, 110°, Laser Class 2M, focus adjustable, 24V DC, 20x90mm, non-isolated Cross laser, green, 520 nm, 90 °, 5 mW, 24 V DC, Ø20x80 mm, Laser Class 1, Focus fixed (3000mm), CON-M8-3POL Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de

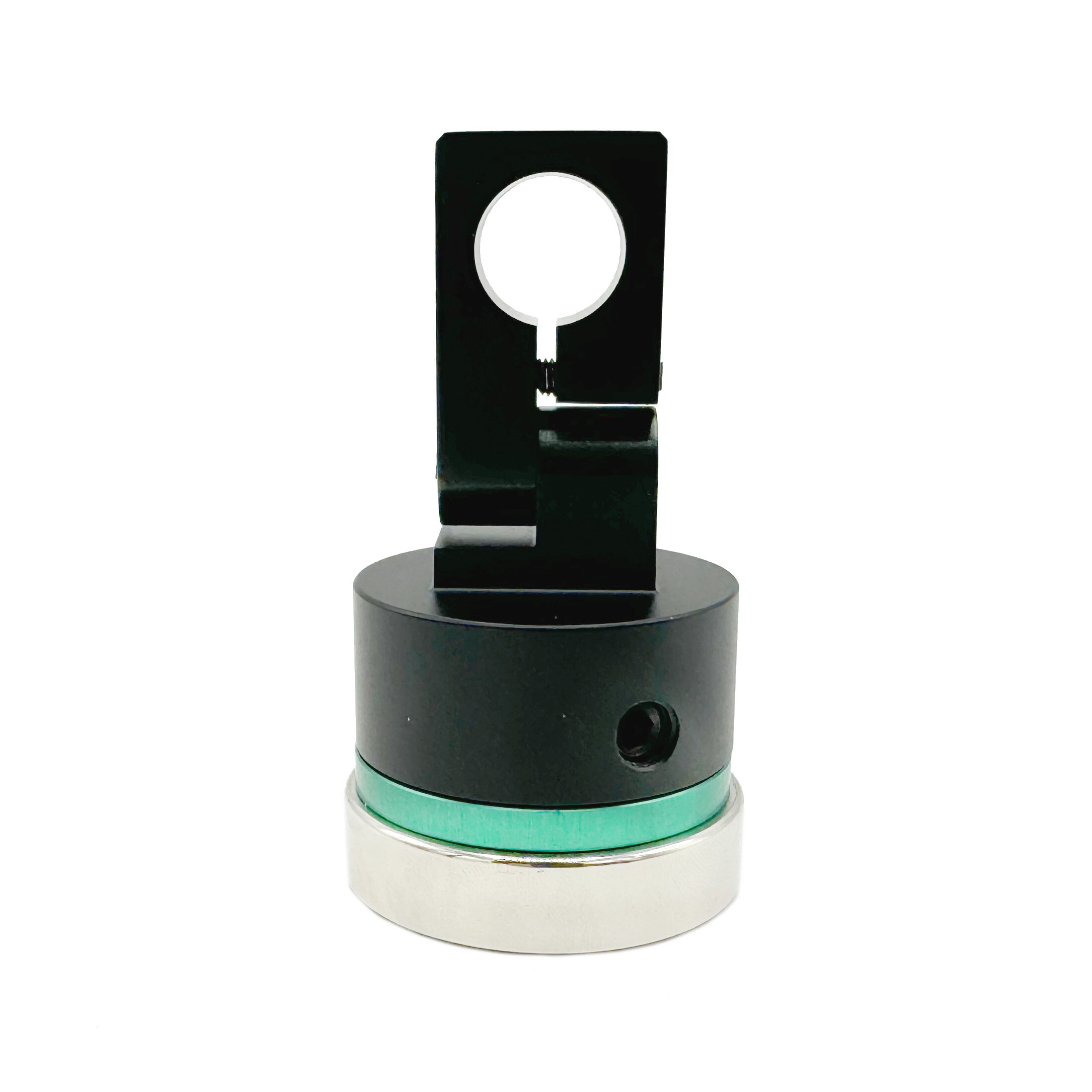

10mm(48x86) MAGNETIC-MOUNT-PRO für Lasermodule mit Durchmesser 10mm Solid, very robust laser aluminum mount for industrial applicationsIndustrial quality, Bracket is adjustable in all degrees of freedom, Baseplate with magnetic mounting option Anodized aluminium Very robust For industrial applications Magnetic Halterung für Lasermodule mit Durchmesser 10mm. Befestigung: Magnetischer Standfuß Das Lasermodul wird mit einer Klemmschraube in der Halterung fixiert. Der farbige Standfuß wird mit Hilfe von drei Inbusschrauben mit dem Mount verbunden. Material: Aluminium; Farbe: Schwarz Hochwertige Halterung für industrielle Anwendungen Main Data EAN: 4055132021931 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 50 °C Storage Temperature: -50°C - 70 °C Mechanical Parameters Material: aluminium Housing Color: black Weight: 288 g Mount Parameters Total Height (h1): 86 mm Height to Laseraxis (h2): 73.5 mm Height of Base (h3): 37 mm Mount Diameter (d1): Ø 10 mm Diameter of Base (d2): Ø 48 mm Width of Mount (b): 26 mm Height of Mount Head (k): 50 mm Depth of Mount (t): 15 mm Angle of Rotation Alpha (α): 360 ° Angle of Rotation Beta (β): ± 90 ° Holosun BKA exception: no Matching articles Doe laser, red, 635 nm, 5 mW, 5 V DC, Ø10x24 mm, Laser Class 1M, Focus adjustable, Cable length 100 mm Line laser red 650nm 3mW 5VDC - Laser module for Arduino, Raspberry PI, ESP8266, ESP32, DIY electronics projects, light barrier, signal transmission, measurement technologyEye-safe laser module compatible with Arduino, Raspberry Pi, and ESP 8266 boards Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de

11mm(48x86) MAGNETIC-MOUNT-PRO für Lasermodule mit Durchmesser 11mm Solid, very robust laser aluminum mount for industrial applicationsIndustrial quality, Bracket is adjustable in all degrees of freedom, Baseplate with magnetic mounting option Anodized aluminium Very robust For industrial applications Magnetic Halterung für Lasermodule mit Durchmesser 11mm. Befestigung: Magnetischer Standfuß Das Lasermodul wird mit einer Klemmschraube in der Halterung fixiert. Der farbige Standfuß wird mit Hilfe von drei Inbusschrauben mit dem Mount verbunden. Material: Aluminium; Farbe: Schwarz Hochwertige Halterung für industrielle Anwendungen Main Data EAN: 4055132022020 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 50 °C Storage Temperature: -50°C - 70 °C Mechanical Parameters Material: aluminium Housing Color: black Weight: 288 g Mount Parameters Total Height (h1): 86 mm Height to Laseraxis (h2): 73.5 mm Height of Base (h3): 37 mm Mount Diameter (d1): Ø 11 mm Diameter of Base (d2): Ø 48 mm Width of Mount (b): 26 mm Height of Mount Head (k): 50 mm Depth of Mount (t): 15 mm Angle of Rotation Alpha (α): 360 ° Angle of Rotation Beta (β): ± 90 ° Holosun BKA exception: no Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de

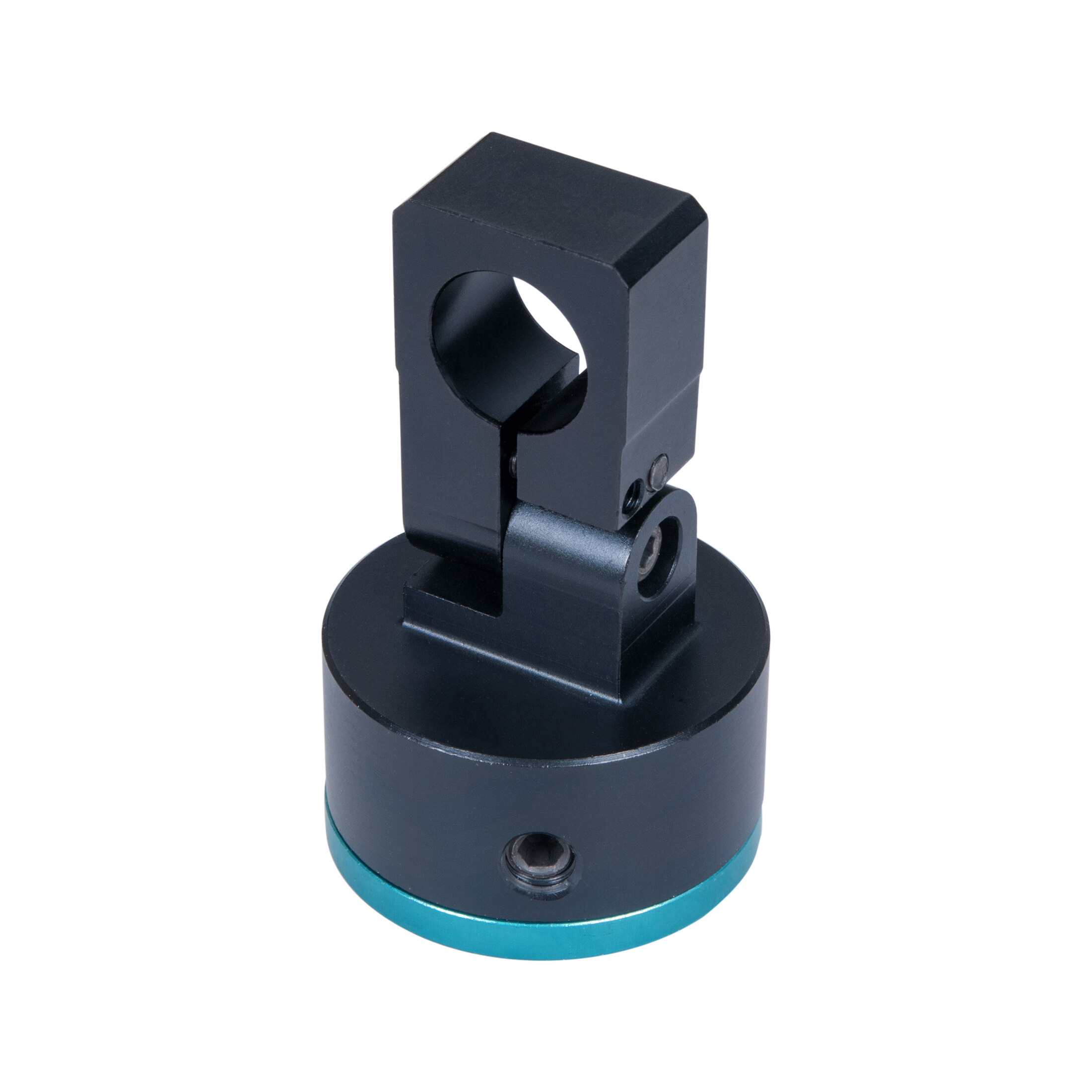

12mm(48x86) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 12mm Solid, very robust laser aluminum mount for industrial applicationsIndustrial quality, Bracket is adjustable in all degrees of freedom, Baseplate with magnetic mounting option Anodized aluminium Very robust For industrial applications Magnetic Halterung für Lasermodule mit Durchmesser 12mm. Befestigung: Magnetischer Standfuß Das Lasermodul wird mit einer Klemmschraube in der Halterung fixiert. Der farbige Standfuß wird mit Hilfe von drei Inbusschrauben mit dem Mount verbunden. Material: Aluminium; Farbe: Schwarz Hochwertige Halterung für industrielle Anwendungen Main Data EAN: 4055132022228 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 50 °C Storage Temperature: -50°C - 70 °C Electrical Parameters Operating Voltage: max 0 V DC Mechanical Parameters Material: aluminium Housing Color: black Weight: 288 g Mount Parameters Total Height (h1): 86 mm Height to Laseraxis (h2): 73.5 mm Height of Base (h3): 37 mm Mount Diameter (d1): Ø 12 mm Diameter of Base (d2): Ø 48 mm Width of Mount (b): 26 mm Height of Mount (g): 50 mm Height of Mount Head (k): 50 mm Depth of Mount (t): 15 mm Angle of Rotation Alpha (α): 360 ° Angle of Rotation Beta (β): ± 90 ° Holosun BKA exception: no Matching articles Punktlaser grün 532nm 1mW Ø12x60 100mm KabelPunktlaser, grün, 532nm, 1mW, Laser Klasse 2, Fokus kollimiert, 3V DC, 12x60mm Doe laser, red, 650 nm, 5 mW, 3 V DC, Ø12x38 mm, Laser Class 1, Focus adjustable, Cable length 100 mm Line laser red 650nm 5mW 20° 24VDC aluminum housing 12x50mmLine laser, red, 650nm, 5mW, 20°, Laser Class 1, Focus 3m, 24V DC, 12x50mm, Cable length 100mm direct green laser modul cross laser green 520nm 4mW 3VDCKreuzlaser, grün, 520nm, 4mW, 90°, Laser Klasse 1, Fokus 3m, 3V DC, 12x47mm Line laser, red, 635 nm, 90 °, 4 mW, 5 V DC, Ø12x32 mm, Laser Class 1, Focus fixed (3000mm), Cable length 100 mm Dot laser, red, 650nm, 1mW, Laser Class 2, focus collimated, 3V DC, 12x40mm, axially parallelDot laser, red, 650nm, 1mW, Laser Class 2, collimated focus, 3V DC, 12x40mm, axis parallel Doe laser, red, 650 nm, 5 mW, 3 V DC, Ø12x38 mm, Laser Class 1M, Focus adjustable, Cable length 100 mm Punktlaser grün 532nm 1mW Ø12x60 250mm KabelPunktlaser, grün, 532nm, 1mW, Laser Klasse 2, Fokus kollimiert, 3V DC, 12x60mm, Kabel 0,25m Dot laser, green, 532 nm, 1 mW, 3 V DC, Ø12x45 mm, Laser Class 2, Focus collimated, Cable length 100 mm, 2.5 mm DC socket (GND pole inner)Punktlaser, grün, 532nm, 1mW, Laser Klasse 2, Fokus kollimiert, 3V DC, 12x45mm, mit DC-Hohlstecker 2.5mm Dot laser, red, 650 nm, 1 mW, 24 V DC, Ø12x60 mm, Laser Class 2, Focus fixed (3.4m), Cable length 500 mm, CON-M8-3POLPunktlaser, rot, 650nm, 1mW, Laser Klasse 2, Fokus 3,4m, 24V DC, 12x60mm, M8-Buchse Line laser red 650nm 5mW 20° 24VDC aluminum housing 12x50mmRed line laser, 650nm, 5mW, 20°, Laser Class 1, Focus 3m, 24V DC, 12x50mm, Cable length 300mm Magnetic Mount for 12mm Laser ModuleØ12mm (36x62) Magnetic holder for 12mm laser module, diameter 36mm, height 62mm, plastic Line laser, green, 520 nm, 30 °, 7 mW, 5 V DC, Ø12x40 mm, Laser Class 2, Focus fixed (400mm), Cable length 500 mmLine laser, green, 520nm, 7mW, 30°, Laser Class 2, Focus 0.4m, 5V DC, 12x40mm Cross laser, green, 520 nm, 30 °, 10 mW, 5 V DC, Ø12x40 mm, Laser Class 2M, Focus fixed (400mm), Cable length 500 mmCross laser, green, 520nm, 10mW, 30°, Laser Class 2M, Focus 0.4m, 5V DC, 12x40mm Doe laser, green, 532 nm, 15 °, 5 mW, 3 V DC, Ø12x55 mm, Laser Class 2M, Focus adjustable, Cable length 200 mm, 2.5 mm DC socket (GND pole inner) Justierbares isoliertes DOE Lasermodul, rot, 635nm, 1mW, 3V DC, 12x54mm, Klasse 1, inkl. DOE-R-218, Kreuz Projektion 15° Point laser, blue, 405 nm, 0.4 mW, Laser Class 1, focusable, 5 V DC, 12x40 mmPoint laser, blue, 405 nm, 0.4 mW, laser class 1, focusable, 5 V DC, 12x40 mm Dot laser, blue, 450nm, 0.4mW, Laser Class 1, collimated, 5V DC, 12x40mmBlue dot laser, 450nm, 0.4mW, Laser Class 1, collimated, 5V DC, 12x40mm Linienlaser, rot, 650nm, 5mW, 5°, 5V DC, 12x50 mm, Klasse 2M, Fokus 1m, Intensität einstellbar (0-5V), Powell linseLinienlaser, rot, 650nm, 5mW, 5°, 5V DC, 12x50 mm, Klasse 2M, Fokus 1m, Intensität einstellbar (0-5V), Powell linse Line laser, green, 520nm, 4mW, 10°, Laser Class 1M, Focus 3m, 3V DC, 12x34mm, with 2.5mm DC hollow plug Doe laser, red, 635 nm, 5 °, 1 mW, 24 V DC, Ø12x54 mm, Laser Class 1M, Focus adjustable, Cable length 300 mm Doe laser, red, 635 nm, 5 °, 1 mW, 24 V DC, Ø12x54 mm, Laser Class 1M, Focus adjustable, Cable length 300 mm, CON-M12 Dot laser, red, 650 nm, 1 mW, 24 V DC, Ø12x60 mm, Laser Class 2, Focus fixed (3.4m), Cable length 500 mm, CON-M8-3POLRed dot laser, 650nm, 1mW, Laser Class 2, Focus 3.4m, 24V DC, 12x60mm, M8 connector Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de

Ø9mm(45x75) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 9mm Solid, very robust laser aluminum mount for industrial applicationsIndustrial quality, Bracket is adjustable in all degrees of freedom, Baseplate with magnetic mounting option Anodized aluminium Very robust For industrial applications Magnetic Halterung für Lasermodule mit Durchmesser 9mm. Befestigung: Magnetischer Standfuß mit einer Haltekraft von 3 kg Das Lasermodul wird mit einer Klemmschraube in der Halterung fixiert. Der farbige Standfuß wird mit Hilfe von drei Inbusschrauben mit dem Mount verbunden. Material: Aluminium; Farbe: Schwarz Hochwertige Halterung für industrielle Anwendungen. Main Data EAN: 4055132018825 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 50 °C Storage Temperature: -50°C - 70 °C Electrical Parameters Operating Voltage: max 0 V DC Mechanical Parameters Size: Ø45x75 mm Material: aluminium Housing Color: black Weight: 141 g Mount Parameters Total Height (h1): 75 mm Height to Laseraxis (h2): 60 mm Height of Base (h3): 25 mm Mount Diameter (d1): Ø 9 mm Diameter of Base (d2): Ø 45 mm Width of Mount (b): 26 mm Height of Mount (g): 50 mm Height of Mount Head (k): 50 mm Depth of Mount (t): 15 mm Angle of Rotation Alpha (α): 360 ° Angle of Rotation Beta (β): ± 90 ° Holosun BKA exception: no Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de

Ø8mm(45x75) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 8mm Solid, very robust laser aluminum mount for industrial applicationsIndustrial quality, Bracket is adjustable in all degrees of freedom, Baseplate with magnetic mounting option Anodized aluminium Very robust For industrial applications Magnetic Halterung für Lasermodule mit Durchmesser 8mm. Befestigung: Magnetischer Standfuß mit einer Haltekraft von 3 kg Das Lasermodul wird mit einer Klemmschraube in der Halterung fixiert. Der farbige Standfuß wird mit Hilfe von drei Inbusschrauben mit dem Mount verbunden. Material: Aluminium; Farbe: Schwarz Hochwertige Halterung für industrielle Anwendungen. Main Data EAN: 4055132018818 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 50 °C Storage Temperature: -50°C - 70 °C Electrical Parameters Operating Voltage: max 0 V DC Mechanical Parameters Size: Ø45x75 mm Material: aluminium Housing Color: black Weight: 141 g Mount Parameters Total Height (h1): 75 mm Height to Laseraxis (h2): 60 mm Height of Base (h3): 25 mm Mount Diameter (d1): Ø 8 mm Diameter of Base (d2): Ø 45 mm Width of Mount (b): 26 mm Height of Mount (g): 50 mm Height of Mount Head (k): 50 mm Depth of Mount (t): 15 mm Angle of Rotation Alpha (α): 360 ° Angle of Rotation Beta (β): ± 90 ° Holosun BKA exception: no Matching articles Isolated point laser, red, 650nm, 0.4mW, Laser Class 1, collimated focus, 3V DC, 8x21mmIsolated point laser, red, 650nm, 0.4mW, laser class 1, focus collimated, 3V DC, 8x21mm Dot laser, red, 650 nm, 0.4 mW, 3 V DC, Ø8x21 mm, Laser Class 1, Focus adjustable, Cable length 100 mmFocusable point laser, red, 650nm, 0.4mW, Laser Class 1, focus adjustable, 3V DC, 8x21mm PICOTRONIC Point Laser, green, 520 nm, 1mW, 5V DC, Ø8x35 mm, Focus collimated, Laser Class 2Green dot laser, 520 nm, 1mW, 5V DC, Ø8x35 mm, Focus collimated, Laser class 2 Dot laser, red, 650 nm, 1 mW, 5 V DC, Ø8x21 mm, Laser Class 2, Focus fixed (100mm), Cable length 100 mmModulierbarer Punktlaser, rot, 650nm, 1mW, Laser Klasse 2, Fokus 0.1m, 5V DC, 8x21mm Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de

Ø12mm(45x75) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 12mm Solid, very robust laser aluminum mount for industrial applicationsIndustrial quality, Bracket is adjustable in all degrees of freedom, Baseplate with magnetic mounting option Anodized aluminium Very robust For industrial applications Magnetic Halterung für Lasermodule mit Durchmesser 12mm. Befestigung: Magnetischer Standfuß mit einer Haltekraft von 3 kg Das Lasermodul wird mit einer Klemmschraube in der Halterung fixiert. Der farbige Standfuß wird mit Hilfe von drei Inbusschrauben mit dem Mount verbunden. Material: Aluminium; Farbe: Schwarz Hochwertige Halterung für industrielle Anwendungen Main Data EAN: 4055132018764 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 50 °C Storage Temperature: -50°C - 70 °C Electrical Parameters Operating Voltage: max 0 V DC Mechanical Parameters Size: Ø45x75 mm Material: aluminium Housing Color: black Weight: 141 g Mount Parameters Total Height (h1): 75 mm Height to Laseraxis (h2): 60 mm Height of Base (h3): 25 mm Mount Diameter (d1): Ø 12 mm Diameter of Base (d2): Ø 45 mm Width of Mount (b): 26 mm Height of Mount (g): 50 mm Height of Mount Head (k): 50 mm Depth of Mount (t): 15 mm Angle of Rotation Alpha (α): 360 ° Angle of Rotation Beta (β): ± 90 ° Holosun BKA exception: no Matching articles Punktlaser grün 532nm 1mW Ø12x60 100mm KabelPunktlaser, grün, 532nm, 1mW, Laser Klasse 2, Fokus kollimiert, 3V DC, 12x60mm Doe laser, red, 650 nm, 5 mW, 3 V DC, Ø12x38 mm, Laser Class 1, Focus adjustable, Cable length 100 mm Line laser red 650nm 5mW 20° 24VDC aluminum housing 12x50mmLine laser, red, 650nm, 5mW, 20°, Laser Class 1, Focus 3m, 24V DC, 12x50mm, Cable length 100mm direct green laser modul cross laser green 520nm 4mW 3VDCKreuzlaser, grün, 520nm, 4mW, 90°, Laser Klasse 1, Fokus 3m, 3V DC, 12x47mm Line laser, red, 635 nm, 90 °, 4 mW, 5 V DC, Ø12x32 mm, Laser Class 1, Focus fixed (3000mm), Cable length 100 mm Dot laser, red, 650nm, 1mW, Laser Class 2, focus collimated, 3V DC, 12x40mm, axially parallelDot laser, red, 650nm, 1mW, Laser Class 2, collimated focus, 3V DC, 12x40mm, axis parallel Doe laser, red, 650 nm, 5 mW, 3 V DC, Ø12x38 mm, Laser Class 1M, Focus adjustable, Cable length 100 mm Punktlaser grün 532nm 1mW Ø12x60 250mm KabelPunktlaser, grün, 532nm, 1mW, Laser Klasse 2, Fokus kollimiert, 3V DC, 12x60mm, Kabel 0,25m Dot laser, green, 532 nm, 1 mW, 3 V DC, Ø12x45 mm, Laser Class 2, Focus collimated, Cable length 100 mm, 2.5 mm DC socket (GND pole inner)Punktlaser, grün, 532nm, 1mW, Laser Klasse 2, Fokus kollimiert, 3V DC, 12x45mm, mit DC-Hohlstecker 2.5mm Dot laser, red, 650 nm, 1 mW, 24 V DC, Ø12x60 mm, Laser Class 2, Focus fixed (3.4m), Cable length 500 mm, CON-M8-3POLPunktlaser, rot, 650nm, 1mW, Laser Klasse 2, Fokus 3,4m, 24V DC, 12x60mm, M8-Buchse Line laser red 650nm 5mW 20° 24VDC aluminum housing 12x50mmRed line laser, 650nm, 5mW, 20°, Laser Class 1, Focus 3m, 24V DC, 12x50mm, Cable length 300mm Dot laser, red, 650 nm, 1 mW, 3 V DC, Ø12x42 mm, Laser Class 2, Focus fixed (10.0m), Cable length 1,850 mmPunktlaser, rot, 650nm, 1mW, Laser Klasse 2, Fokus kollimiert, 3V DC, 12x42mm, Achsparallel Line laser, infrared, 830 nm, 60 °, 3 mW, 24 V DC, Ø12x40 mm, Laser Class 1, Focus fixed (450mm), Cable length 200 mmLinienlaser, IR, 830nm, 3mW, 60°, Laser Klasse 1, Fokus 0,45m, 24V DC, 12x40mm Magnetic Mount for 12mm Laser ModuleØ12mm (36x62) Magnetic holder for 12mm laser module, diameter 36mm, height 62mm, plastic Line laser, green, 520 nm, 30 °, 7 mW, 5 V DC, Ø12x40 mm, Laser Class 2, Focus fixed (400mm), Cable length 500 mmLine laser, green, 520nm, 7mW, 30°, Laser Class 2, Focus 0.4m, 5V DC, 12x40mm Cross laser, green, 520 nm, 30 °, 10 mW, 5 V DC, Ø12x40 mm, Laser Class 2M, Focus fixed (400mm), Cable length 500 mmCross laser, green, 520nm, 10mW, 30°, Laser Class 2M, Focus 0.4m, 5V DC, 12x40mm Doe laser, green, 532 nm, 15 °, 5 mW, 3 V DC, Ø12x55 mm, Laser Class 2M, Focus adjustable, Cable length 200 mm, 2.5 mm DC socket (GND pole inner) Justierbares isoliertes DOE Lasermodul, rot, 635nm, 1mW, 3V DC, 12x54mm, Klasse 1, inkl. DOE-R-218, Kreuz Projektion 15° Point laser, blue, 405 nm, 0.4 mW, Laser Class 1, focusable, 5 V DC, 12x40 mmPoint laser, blue, 405 nm, 0.4 mW, laser class 1, focusable, 5 V DC, 12x40 mm Dot laser, blue, 450nm, 0.4mW, Laser Class 1, collimated, 5V DC, 12x40mmBlue dot laser, 450nm, 0.4mW, Laser Class 1, collimated, 5V DC, 12x40mm Linienlaser, rot, 650nm, 5mW, 5°, 5V DC, 12x50 mm, Klasse 2M, Fokus 1m, Intensität einstellbar (0-5V), Powell linseLinienlaser, rot, 650nm, 5mW, 5°, 5V DC, 12x50 mm, Klasse 2M, Fokus 1m, Intensität einstellbar (0-5V), Powell linse Line laser, green, 520nm, 4mW, 10°, Laser Class 1M, Focus 3m, 3V DC, 12x34mm, with 2.5mm DC hollow plug Doe laser, red, 635 nm, 5 °, 1 mW, 24 V DC, Ø12x54 mm, Laser Class 1M, Focus adjustable, Cable length 300 mm Doe laser, red, 635 nm, 5 °, 1 mW, 24 V DC, Ø12x54 mm, Laser Class 1M, Focus adjustable, Cable length 300 mm, CON-M12 Dot laser, red, 650 nm, 1 mW, 24 V DC, Ø12x60 mm, Laser Class 2, Focus fixed (3.4m), Cable length 500 mm, CON-M8-3POLRed dot laser, 650nm, 1mW, Laser Class 2, Focus 3.4m, 24V DC, 12x60mm, M8 connector Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de

Ø7mm(45x75) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 7mm Solid, very robust laser aluminum mount for industrial applicationsIndustrial quality, Bracket is adjustable in all degrees of freedom, Baseplate with magnetic mounting option Anodized aluminium Very robust For industrial applications Magnetic Halterung für Lasermodule mit Durchmesser 7mm. Befestigung: Magnetischer Standfuß mit einer Haltekraft von 3 kg Das Lasermodul wird mit einer Klemmschraube in der Halterung fixiert. Der farbige Standfuß wird mit Hilfe von drei Inbusschrauben mit dem Mount verbunden. Material: Aluminium; Farbe: Schwarz Hochwertige Halterung für industrielle Anwendungen. Main Data EAN: 4055132018801 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 50 °C Storage Temperature: -50°C - 70 °C Electrical Parameters Operating Voltage: max 0 V DC Mechanical Parameters Size: Ø45x75 mm Material: aluminium Housing Color: black Weight: 141 g Mount Parameters Total Height (h1): 75 mm Height to Laseraxis (h2): 60 mm Height of Base (h3): 25 mm Mount Diameter (d1): Ø 7 mm Diameter of Base (d2): Ø 45 mm Width of Mount (b): 26 mm Height of Mount (g): 50 mm Height of Mount Head (k): 50 mm Depth of Mount (t): 15 mm Angle of Rotation Alpha (α): 360 ° Angle of Rotation Beta (β): ± 90 ° Holosun BKA exception: no Matching articles Isolated point laser module, red, 650nm, 1mW, 5V DC, 7x21mm, Class 2, 10000h lifetime MTTF @ 25°CDot laser, red, 650nm, 1mW, Laser Class 2, collimated focus, 5V DC, 7x21mm Dot laser, green, 520 nm, 0.4 mW, 5 V DC, Ø7x26 mm, Laser Class 1, Focus collimated, Cable length 115 mm Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de

Ø10mm(45x75) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 10mm Solid, very robust laser aluminum mount for industrial applicationsIndustrial quality, Bracket is adjustable in all degrees of freedom, Baseplate with magnetic mounting option Anodized aluminium Very robust For industrial applications Magnetic Halterung für Lasermodule mit Durchmesser 10mm. Befestigung: Magnetischer Standfuß mit einer Haltekraft von 3 kg Das Lasermodul wird mit einer Klemmschraube in der Halterung fixiert. Der farbige Standfuß wird mit Hilfe von drei Inbusschrauben mit dem Mount verbunden. Material: Aluminium; Farbe: Schwarz Hochwertige Halterung für industrielle Anwendungen Main Data EAN: 4055132018832 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 50 °C Storage Temperature: -50°C - 70 °C Electrical Parameters Operating Voltage: max 0 V DC Mechanical Parameters Size: Ø45x75 mm Material: aluminium Housing Color: black Weight: 141 g Mount Parameters Total Height (h1): 75 mm Height to Laseraxis (h2): 60 mm Height of Base (h3): 25 mm Mount Diameter (d1): Ø 10 mm Diameter of Base (d2): Ø 45 mm Width of Mount (b): 26 mm Height of Mount (g): 50 mm Height of Mount Head (k): 50 mm Depth of Mount (t): 15 mm Angle of Rotation Alpha (α): 360 ° Angle of Rotation Beta (β): ± 90 ° Holosun BKA exception: no Matching articles Doe laser, red, 635 nm, 5 mW, 5 V DC, Ø10x24 mm, Laser Class 1M, Focus adjustable, Cable length 100 mm Line laser red 650nm 3mW 5VDC - Laser module for Arduino, Raspberry PI, ESP8266, ESP32, DIY electronics projects, light barrier, signal transmission, measurement technologyEye-safe laser module compatible with Arduino, Raspberry Pi, and ESP 8266 boards Cross laser, green, 520 nm, 5 °, 2 mW, 5 V DC, Ø10x30 mm, Laser Class 1, Focus fixed (700mm), Cable length 100 mmGreen cross laser, 520nm, 2mW, 5°, Laser Class 1, Focus 0.7m, 5V DC, 10x30mm Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de

Ø6mm(45x75) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 6 mm Solid, very robust laser aluminum mount for industrial applicationsIndustrial quality, Bracket is adjustable in all degrees of freedom, Baseplate with magnetic mounting option Halterung für Lasermodule mit Durchmesser 6mm Befestigung: Magnetischer Standfuß mit einer Haltekraft von 3 kg Das Lasermodul wird mit einer Klemmschraube in der Halterung fixiert. Der farbige Standfuß wird mit Hilfe von drei Inbusschrauben mit dem Mount verbunden Material: Aluminium; Farbe: Schwarz Hochwertige Halterung für industrielle Anwendungen Main Data EAN: 4055132018795 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 50 °C Storage Temperature: -50°C - 70 °C Mechanical Parameters Size: Ø45x75 mm Material: aluminium Housing Color: black Weight: 141 g Mount Parameters Total Height (h1): 75 mm Height to Laseraxis (h2): 60 mm Height of Base (h3): 25 mm Mount Diameter (d1): Ø 6 mm Diameter of Base (d2): Ø 45 mm Width of Mount (b): 26 mm Height of Mount (g): 50 mm Height of Mount Head (k): 50 mm Depth of Mount (t): 15 mm Angle of Rotation Alpha (α): 360 ° Angle of Rotation Beta (β): ± 90 ° Holosun BKA exception: no Accessesories Picotronic accessory PICO-LENS-CLEANING-PEN-MICRO Matching articles Line laser, red, 635nm, 1mW, 90°, Laser Class 1, Focus 0.15m, 3V DC, 6x30mmLine laser, red, 635nm, 1mW, 90°, Laser Class 1, Focus 0.15m, 3V DC, 6x30mm Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de

Ø11mm(45x75) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 11mm Solid, very robust laser aluminum mount for industrial applicationsIndustrial quality, Bracket is adjustable in all degrees of freedom, Baseplate with magnetic mounting option Anodized aluminium Very robust For industrial applications Magnetic Halterung für Lasermodule mit Durchmesser 11mm. Befestigung: Magnetischer Standfuß mit einer Haltekraft von 3 kg Das Lasermodul wird mit einer Klemmschraube in der Halterung fixiert. Der farbige Standfuß wird mit Hilfe von drei Inbusschrauben mit dem Mount verbunden. Material: Aluminium; Farbe: Schwarz Hochwertige Halterung für industrielle Anwendungen Main Data EAN: 4055132018849 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 50 °C Storage Temperature: -50°C - 70 °C Electrical Parameters Operating Voltage: max 0 V DC Mechanical Parameters Size: Ø45x75 mm Material: aluminium Housing Color: black Weight: 141 g Mount Parameters Total Height (h1): 75 mm Height to Laseraxis (h2): 60 mm Height of Base (h3): 25 mm Mount Diameter (d1): Ø 11 mm Diameter of Base (d2): Ø 45 mm Width of Mount (b): 26 mm Height of Mount (g): 50 mm Height of Mount Head (k): 50 mm Depth of Mount (t): 15 mm Angle of Rotation Alpha (α): 360 ° Angle of Rotation Beta (β): ± 90 ° Holosun BKA exception: no Matching articles Line laser, green, 520 nm, 20 °, 4 mW, 5 V DC, Ø11x30 mm, Laser Class 1, Focus fixed (2000mm), Cable length 2,000 mmLinienlaser, grün, 520nm, 4mW, 20°, Laser Klasse 1, Fokus 2m, 5V DC, 11x30mm Line laser, green, 520 nm, 90 °, 8 mW, 5 V DC, Ø11x30 mm, Laser Class 1, Focus fixed (2000mm), Cable length 2,000 mm, CON-USB-CLinienlaser, grün, 520nm, 8mW, 90°, Laser Klasse 1, Fokus 2m, 5V DC, 11x30mm Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de

13mm(48x86) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 13mm Solid, very robust laser aluminum mount for industrial applicationsIndustrial quality, Bracket is adjustable in all degrees of freedom, Baseplate with magnetic mounting option Anodized aluminium Very robust For industrial applications Magnetic Halterung für Lasermodule mit Durchmesser 13mm. Befestigung: Magnetischer Standfuß Das Lasermodul wird mit einer Klemmschraube in der Halterung fixiert. Der farbige Standfuß wird mit Hilfe von drei Inbusschrauben mit dem Mount verbunden. Material: Aluminium; Farbe: Schwarz Hochwertige Halterung für industrielle Anwendungen Main Data EAN: 4055132022198 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 50 °C Storage Temperature: -50°C - 70 °C Electrical Parameters Operating Voltage: max 0 V DC Mechanical Parameters Material: aluminium Housing Color: black Weight: 288 g Mount Parameters Total Height (h1): 86 mm Height to Laseraxis (h2): 73 mm Height of Base (h3): 37 mm Mount Diameter (d1): Ø 13 mm Diameter of Base (d2): Ø 48 mm Width of Mount (b): 26 mm Height of Mount (g): 50 mm Height of Mount Head (k): 50 mm Depth of Mount (t): 15 mm Angle of Rotation Alpha (α): 360 ° Angle of Rotation Beta (β): ± 90 ° Holosun BKA exception: no Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de

Ø13mm(45x75) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 13mm Solid, very robust laser aluminum mount for industrial applicationsIndustrial quality, Bracket is adjustable in all degrees of freedom, Baseplate with magnetic mounting option Anodized aluminium Very robust For industrial applications Magnetic Halterung für Lasermodule mit Durchmesser 13mm. Befestigung: Magnetischer Standfuß mit einer Haltekraft von 3 kg Das Lasermodul wird mit einer Klemmschraube in der Halterung fixiert. Der farbige Standfuß wird mit Hilfe von drei Inbusschrauben mit dem Mount verbunden. Material: Aluminium; Farbe: Schwarz Hochwertige Halterung für industrielle Anwendungen Main Data EAN: 4055132018863 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 50 °C Storage Temperature: -50°C - 70 °C Electrical Parameters Operating Voltage: max 0 V DC Mechanical Parameters Size: Ø45x75 mm Material: aluminium Housing Color: black Weight: 141 g Mount Parameters Total Height (h1): 75 mm Height to Laseraxis (h2): 60 mm Height of Base (h3): 25 mm Mount Diameter (d1): Ø 13 mm Diameter of Base (d2): Ø 45 mm Width of Mount (b): 26 mm Height of Mount (g): 50 mm Height of Mount Head (k): 50 mm Depth of Mount (t): 15 mm Angle of Rotation Alpha (α): 360 ° Angle of Rotation Beta (β): ± 90 ° Holosun BKA exception: no Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de

14mm(48x86) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 14mm Solid, very robust laser aluminum mount for industrial applicationsIndustrial quality, Bracket is adjustable in all degrees of freedom, Baseplate with magnetic mounting option Anodized aluminium Very robust For industrial applications Magnetic Halterung für Lasermodule mit Durchmesser 14mm. Befestigung: Magnetischer Standfuß Das Lasermodul wird mit einer Klemmschraube in der Halterung fixiert. Der farbige Standfuß wird mit Hilfe von drei Inbusschrauben mit dem Mount verbunden. Material: Aluminium; Farbe: Schwarz Hochwertige Halterung für industrielle Anwendungen Main Data EAN: 4055132022181 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 50 °C Storage Temperature: -50°C - 70 °C Optical Parameters LB Rating: 3 Electrical Parameters Operating Voltage: max 0 V DC Mechanical Parameters Material: aluminium Housing Color: black Weight: 288 g Mount Parameters Total Height (h1): 86 mm Height to Laseraxis (h2): 73 mm Height of Base (h3): 37 mm Mount Diameter (d1): Ø 14 mm Diameter of Base (d2): Ø 48 mm Width of Mount (b): 26 mm Height of Mount (g): 50 mm Height of Mount Head (k): 50 mm Depth of Mount (t): 15 mm Angle of Rotation Alpha (α): 360 ° Angle of Rotation Beta (β): ± 90 ° Holosun BKA exception: no Matching articles Red line laser 650nm 90° 3V DC focusable 14x55mmFocusable line laser, red, 650nm, 5mW, 90°, Laser Class 1, focus adjustable, 3V DC, 14x45mm Dot laser, red, 650 nm, 1 mW, Ø14x64 mm, Laser Class 2, Focus fixed (5.0m)Punktlaser, rot, 650nm, 1mW, Laser Klasse 2, Fokus 5m, 4,5V, 14x64mm, Achsparallel <0,6° PICOTRONIC Punktlaser, rot, 635 nm, 1 mW, 4.5 V DC, Ø14x64 mm, Fokus fixed (5.0m), Laserklasse 2, mit Drehschalter und Innengewinde am GehäuseendeDot laser, red, 635nm, 1mW, Laser Class 2, Focus 5m, 4.5V DC, 14x64mm, axis parallel <0.6°, with rotary switch and internal thread M4x0.7, battery operated Line laser, red, 650 nm, 45 °, 5 mW, 24 V DC, Ø14x55 mm, Laser Class 1, Focus adjustable, Cable length 100 mm, CON-M12 Dot laser, blue, 405 nm, 0.4 mW, 5 V DC, Ø14x45 mm, Laser Class 1, Focus collimated, Cable length 100 mm Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de

Ø14mm(45x75) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 14mm Solid, very robust laser aluminum mount for industrial applicationsIndustrial quality, Bracket is adjustable in all degrees of freedom, Baseplate with magnetic mounting option Anodized aluminium Very robust For industrial applications Magnetic Halterung für Lasermodule mit Durchmesser 14mm. Befestigung: Magnetischer Standfuß mit einer Haltekraft von 3 kg Das Lasermodul wird mit einer Klemmschraube in der Halterung fixiert. Der farbige Standfuß wird mit Hilfe von drei Inbusschrauben mit dem Mount verbunden. Material: Aluminium; Farbe: Schwarz Hochwertige Halterung für industrielle Anwendungen Main Data EAN: 4055132018856 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 50 °C Storage Temperature: -50°C - 70 °C Electrical Parameters Operating Voltage: max 0 V DC Mechanical Parameters Size: Ø45x75 mm Material: aluminium Housing Color: black Weight: 141 g Mount Parameters Total Height (h1): 75 mm Height to Laseraxis (h2): 60 mm Height of Base (h3): 25 mm Mount Diameter (d1): Ø 14 mm Diameter of Base (d2): Ø 45 mm Width of Mount (b): 26 mm Height of Mount (g): 50 mm Height of Mount Head (k): 50 mm Depth of Mount (t): 15 mm Angle of Rotation Alpha (α): 360 ° Angle of Rotation Beta (β): ± 90 ° Holosun BKA exception: no Matching articles Red line laser 650nm 90° 3V DC focusable 14x55mmFocusable line laser, red, 650nm, 5mW, 90°, Laser Class 1, focus adjustable, 3V DC, 14x45mm Dot laser, red, 650 nm, 1 mW, 3 V DC, Ø14x45 mm, Laser Class 2, Focus fixed (10.0m), Cable length 100 mmPunktlaser, rot, 650nm, 1mW, Laser Klasse 2, Fokus kollimiert, 3V DC, 14x45mm, Achsparallel Dot laser, red, 650 nm, 1 mW, Ø14x64 mm, Laser Class 2, Focus fixed (5.0m)Punktlaser, rot, 650nm, 1mW, Laser Klasse 2, Fokus 5m, 4,5V, 14x64mm, Achsparallel <0,6° PICOTRONIC Punktlaser, rot, 635 nm, 1 mW, 4.5 V DC, Ø14x64 mm, Fokus fixed (5.0m), Laserklasse 2, mit Drehschalter und Innengewinde am GehäuseendeDot laser, red, 635nm, 1mW, Laser Class 2, Focus 5m, 4.5V DC, 14x64mm, axis parallel <0.6°, with rotary switch and internal thread M4x0.7, battery operated Line laser, red, 650 nm, 45 °, 5 mW, 24 V DC, Ø14x55 mm, Laser Class 1, Focus adjustable, Cable length 100 mm, CON-M12 Dot laser, blue, 405 nm, 0.4 mW, 5 V DC, Ø14x45 mm, Laser Class 1, Focus collimated, Cable length 100 mm Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de

15mm(48x86) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 15mm Solid, very robust laser aluminum mount for industrial applicationsIndustrial quality, Bracket is adjustable in all degrees of freedom, Baseplate with magnetic mounting option Anodized aluminium Very robust For industrial applications Magnetic Halterung für Lasermodule mit Durchmesser 15mm. Befestigung: Magnetischer Standfuß Das Lasermodul wird mit einer Klemmschraube in der Halterung fixiert. Der farbige Standfuß wird mit Hilfe von drei Inbusschrauben mit dem Mount verbunden. Material: Aluminium; Farbe: Schwarz Hochwertige Halterung für industrielle Anwendungen Main Data EAN: 4055132022211 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 50 °C Storage Temperature: -50°C - 70 °C Optical Parameters LB Rating: 3 Electrical Parameters Operating Voltage: max 0 V DC Mechanical Parameters Material: aluminium Housing Color: black Weight: 288 g Mount Parameters Total Height (h1): 86 mm Height to Laseraxis (h2): 74 mm Height of Base (h3): 37 mm Mount Diameter (d1): Ø 15 mm Diameter of Base (d2): Ø 48 mm Width of Mount (b): 26 mm Height of Mount (g): 50 mm Height of Mount Head (k): 50 mm Depth of Mount (t): 15 mm Angle of Rotation Alpha (α): 360 ° Angle of Rotation Beta (β): ± 90 ° Holosun BKA exception: no Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de
