Punktlaser grün 532nm 1mW Ø12x60 250mm Kabel
€131.67*
Available, delivery time: 1-2 days
Product information "Punktlaser grün 532nm 1mW Ø12x60 250mm Kabel"

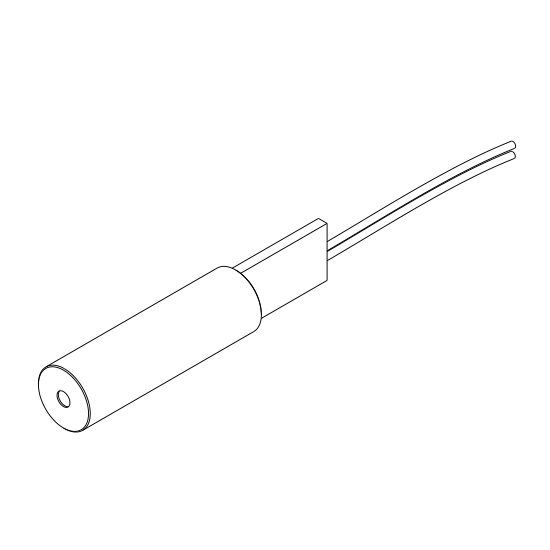

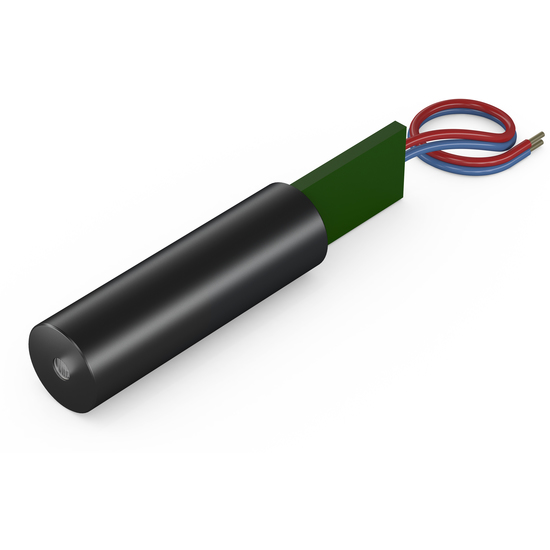

Punktlaser, grün, 532nm, 1mW, Laser Klasse 2, Fokus kollimiert, 3V DC, 12x60mm, Kabel 0,25m
The type is a dot laser that projects a laser dot. This laser has a very compact design ( x ). This diode laser module is distinguished by its high efficiency and its high lifetime of more than .High-quality laser moduleThe diode has a power of . Therefore, the module can be used in different applications and also in room light. This module is perfectly suited for leveling and positioning tasks. Caused by laser classification , no regulatory registration is necessary. The laser can be applied e.g. in discotheque events and it can be mounted in tools without any problems.
- Operating Voltage 3V DC
- Fixed focus
- Laser Class 2
- Compact size
- Abstrahlcharakteristik: elliptischer Punkt, Punktgröße <4mm@10m
- Optische Leistung: 1mW (Laserklasse 2); Fokus kollimiert
- kompakte Bauform: 12x60mm; Achsabweichung: bis zu 3,0°, Kabellänge 0,25m (verlängert)
- Für Anwendungen in z.B. Laserwasserwaagen, Lasermarkierungssystemen, der Robotertechnik, in Industrie, Handwerk, Hobby und dem Showbereich.
- Spannungsversorgung 3V. Zur Stromversorgung können Sie z.B. unser Picotronic Batteriepack 3V oder das Netzteil Picotronic LFNT-3 verwenden.
Accessesories
Magnetic Mount for Lasermodul 12mm
12mm(48x86) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 12mm
Magnetic Mount for 12mm Laser Module
Ø12mm (36x62) Magnetic holder for 12mm laser module, diameter 36mm, height 62mm, plastic
Magnetic Mount for Lasermodul 12mm
Ø12mm(45x75) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 12mm
Mount for Lasermodul 12mm
Ø12mm(45x75) MULTI-MOUNT für Lasermodule mit Durchmesser 12mm
Mount for Lasermodul 12mm
Ø12mm(20x57) MOUNT für Lasermodule mit Durchmesser 12mm
Bracket for Lasermodule 12mm
Ø12mm(25x70) Halterung-Ballhead für Lasermodule mit Durchmesser 12mm
Power supply 3V DC (1200mA)
Netzteil, Ausgang: 3V DC, offene Kabelenden, Betriebsspannung: 100-240V AC
Picotronic accessory PICO-LENS-CLEANING-PEN-MICRO
certified Laser Safety Eyewear PICO-LPG-405-532 according to DIN EN 207, suitable for blue and green wavelengths >400 - 532 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications
Bracket for Lasermodule 12mm
Main Data
- Warranty: 1 years
- Customs tariff number: 90132000000
Technical Parameters
- Lifetime: > 5,000 h
- Operating Temperature: 15°C - 30 °C
- Storage Temperature: -40°C - 80 °C
Optical Parameters
- Beam Shape: Dot
- Optical Power: 1 mW
- Laser Class: 2
- Divergence: D - 0.5 mrad
- Beam Diameter: 2.5 mm
- Size of Laserdot: <4mm@10m
- Operating Distance: 50 m
- Optics: glass lens AR coated
- Beam Mode: TEM00
- Laser technology: Solid State (YVO4+KTP)
- Focus: collimated
- Warm up time: < 15 min
Electrical Parameters
- Potential of Housing: isolated
- Operating Voltage: 2.7 - 3.3, typ 3 V DC
- Operating Current: 125 - 375, typ 250 mA
- Cable color positive: red
- Cable color GND: blue
- Power Supply: Power Supply with stripped/tinned wires, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max.
Mechanical Parameters

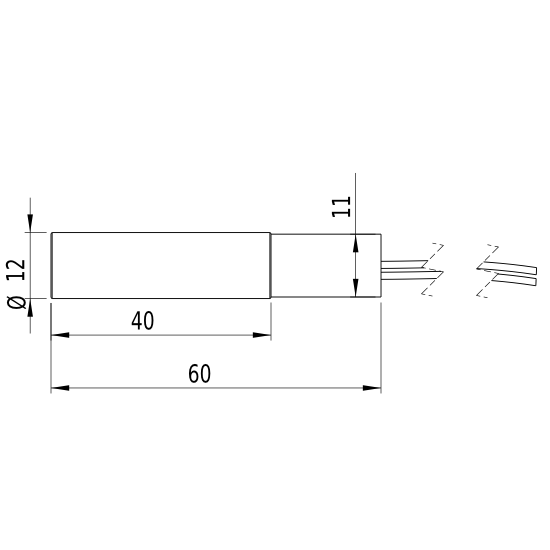

- Size: Ø12x60 mm
- Material: aluminium
- Cable length: 250 mm
- Wire type: 26AWG, 0,14mm²

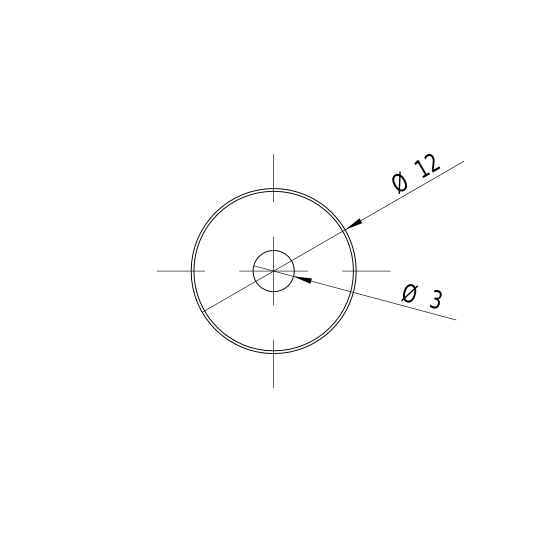

- Output Aperture: 3 mm
- Housing Color: black
- Weight: 13.5 g
- Stripping of wire: 5 mm
