Doe laser, green, 532 nm, 30 mW, 230 V AC, Ø40x210 mm, Laser Class 2M, Focus adjustable, Cable leng…

Product information "Doe laser, green, 532 nm, 30 mW, 230 V AC, Ø40x210 mm, Laser Class 2M, Focus adjustable, Cable leng…"

  • DOE Laser
  • Glas lenses anti reflex coated
  • With 230V power supply
  • High power
  • Adjustable focus

Accessesories

Picotronic Powersupply NF-S-419424-1-16A
Picotronic accessory PICO-LENS-CLEANING-PEN-MICRO
Certified laser safety glasses PICO-LPG-405-532 according to DIN EN 207, suitable wavelength range >400 - 532 nm, comfortable fit over glasses or alone, side protection for a wide field of vision, for laser welding, laser cutting, laser marking, for cosmetic applications.

Main Data

  • EAN: 4055132017644
  • Warranty: 1 years
  • Customs tariff number: 90132000000

Technical Parameters

  • Lifetime: > 10,000 h
  • Operating Temperature: 15°C - 30 °C
  • Storage Temperature: -40°C - 80 °C

Optical Parameters

  • Beam Shape: DOE
  • Optical Power: 30 mW
  • Laser Class: 2M
  • Divergence: D - 0.5 mrad
  • Operating Distance: 100 m
  • Optics: glass lens AR coated
  • Beam Mode: TEM00
  • Laser technology: YVO4+KTP
  • Stability: +/- 20% @ 15-30°C
  • Focus: adjustable
  • Warm up time: < 15 min

Electrical Parameters

  • Potential of Housing: isolated
  • Operating Voltage: 207 - 253, typ 230 V AC
  • Operating Current: 5 - 15, typ 10 mA
  • Connector: AC CEE 7/7

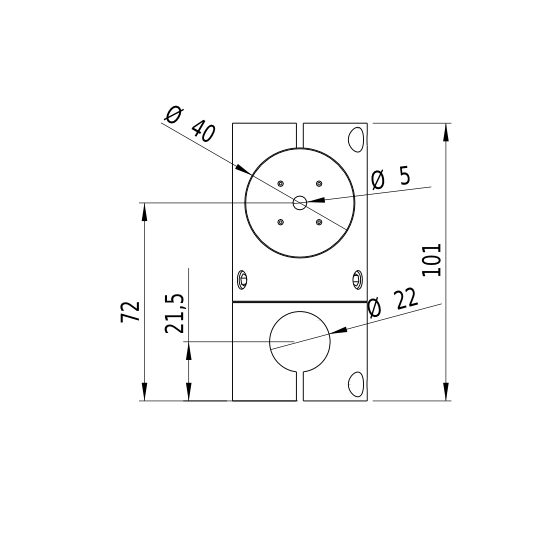

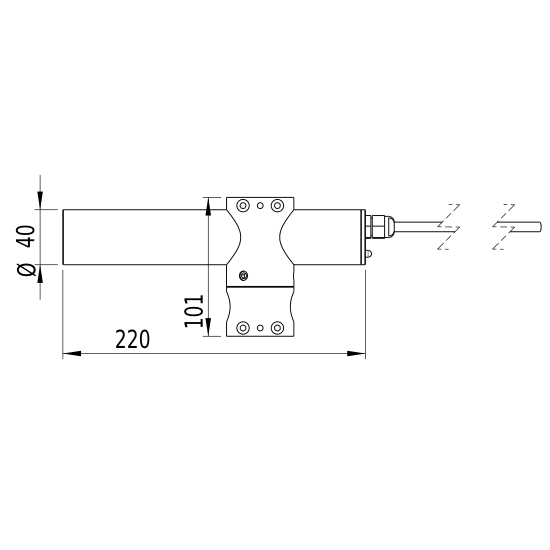

Mechanical Parameters

  • Size: Ø40x210 mm
  • Material: aluminium
  • Cable length: 1,700 mm
  • Wire type: H05VV-F
  • Output Aperture: 5 mm
  • Weight: 600 g
