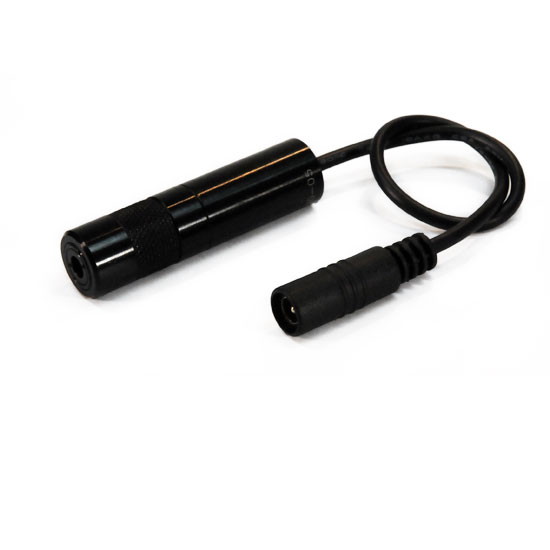

Doe laser, green, 532 nm, 15 °, 5 mW, 3 V DC, Ø12x55 mm, Laser Class 2M, Focus adjustable, Cable le…
€329.90*
Available, delivery time: 1-2 days
Product information "Doe laser, green, 532 nm, 15 °, 5 mW, 3 V DC, Ø12x55 mm, Laser Class 2M, Focus adjustable, Cable le…"
focusable isolated DOE lasermodule, green, 532nm, 5mW, 3V DC, 12x53.5mm, class 2M, incl. DOE289, PC Cross 15° @532nm
Accessesories
Magnetic Mount for Lasermodul 12mm
12mm(48x86) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 12mm
Magnetic Mount for 12mm Laser Module
Ø12mm (36x62) Magnetic holder for 12mm laser module, diameter 36mm, height 62mm, plastic
Magnetic Mount for Lasermodul 12mm
Ø12mm(45x75) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 12mm
Mount for Lasermodul 12mm
Ø12mm(45x75) MULTI-MOUNT für Lasermodule mit Durchmesser 12mm
Mount for Lasermodul 12mm
Ø12mm(20x57) MOUNT für Lasermodule mit Durchmesser 12mm
Bracket for Lasermodule 12mm
Ø12mm(25x70) Halterung-Ballhead für Lasermodule mit Durchmesser 12mm
Picotronic accessory PICO-LENS-CLEANING-PEN-MICRO
certified Laser Safety Eyewear PICO-LPG-405-532 according to DIN EN 207, suitable for blue and green wavelengths >400 - 532 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications
Bracket for Lasermodule 12mm
Main Data
- Warranty: 1 years
- Customs tariff number: 90132000000
Technical Parameters
- Lifetime: > 10,000 h
- Operating Temperature: 15°C - 30 °C
- Storage Temperature: -40°C - 80 °C
Optical Parameters
- Beam Shape: DOE
- Optical Power: 5 mW
- Laser Class: 2M
- Divergence: D - 0.5 mrad
- Fan Angle: 15 °
- Operating Distance: 10 m
- Optics: glass lens AR coated
- Beam Mode: TEM00
- Laser technology: Solid State (YVO4+KTP)
- Stability: +/- 20% @ 15-30°C
- Focus: adjustable
- Warm up time: < 15 min
Electrical Parameters
- Operating Voltage: 2.7 - 3.3, typ 3 V DC
- Operating Current: 150 - 450, typ 300 mA
- Connector: 2.5 mm DC socket (GND pole inner)

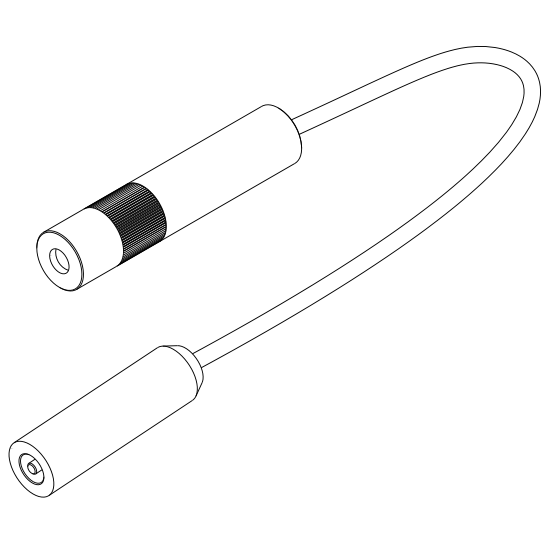

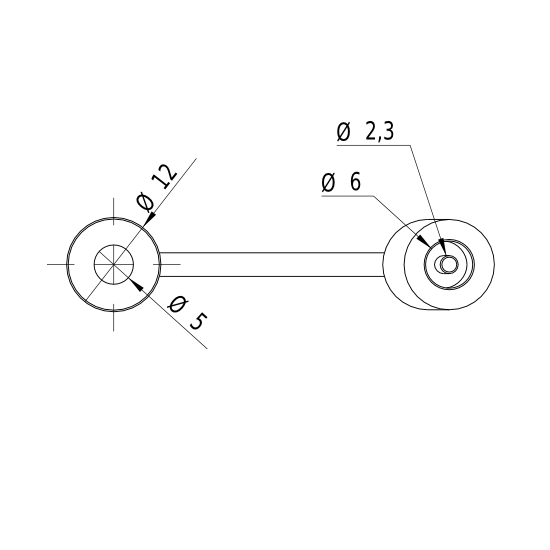

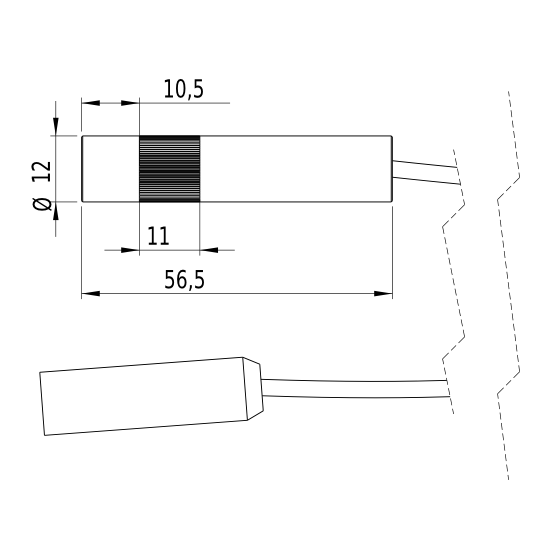

Mechanical Parameters
- Size: Ø12x55 mm
- Material: aluminium
- Cable length: 200 mm
- Output Aperture: 5 mm
- Weight: 22 g
DOE
- Alpha: 15 °
- Diameter (without holder): 8 mm
- Width (without Holder): 1.2 mm
- Material: PC
